Controller Board Summary

LCD, OLED, E Ink epaper Controller Boards

LCD controller boards (A/D boards) designed to support LCD panels used in monitors and displays for commercial, industrial, harsh environment and specialist applications. The Digital View controller boards listed below provide the high reliability, features and flexibility to cover most display applications; with custom options for engineering to meet other requirements.

Key Features:
  • Multi-panel compatibility, dip switch selectable panel timing (note 1)
  • Most brands2, sizes and resolutions of LCD supported (note 3)
  • Most video signal formats supported (note 3)
  • Customization and full custom designs available
  • Harsh environment versions with extended temperature & conformal coating, see listing below

Links & Downloads

Our website is designed for easy navigation, allowing you to find the information you need quickly and efficiently.

Controller Board Categories

4K LCD Controller Boards

For 4K LCD monitors & video display systems

Description
  • True-4K, 4K, Ultra-HD
  • LCD, OLED
  • Product Page
  • 203.2 x 154.0mm
  • P/N: 4175500xx-3
Panel Compatibility
  • up to 4096x2160
  • V-by-One, 8 lane
  • LVDS (8 channel)
  • eDP (HBR/HBR2)
  • 60Hz (120Hz IE-2000)
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V, 18V
Input Signals
  • HDMI 2.0 x 1
  • HDMI 1.4 x 2
  • DVI Dual-link x 1
  • Displayport 1.2 x 1
  • VGA x 1 (via DVI)
Control
  • OSD Buttons
  • IR Remote
  • Ethernet
  • RS-232 (serial)
Other
  • Gamma LUT
  • PiP, PbP
  • Monitoring
  • 12/24V DC Input
  • PWM, Analog
  • Digital audio line out
  • Latency: 15ms
SVX-4096-120v2

Description
  • True-4K, 4K, Ultra-HD
  • LCD, OLED
  • Product Page
  • 203.2 x 154.0mm
  • P/N: 4175500xx-3


Panel Compatibility
  • up to 4096x2160
  • V-by-One, 8 lane
  • LVDS (8 channel)
  • eDP (HBR/HBR2)
  • 60Hz, 120Hz
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V, 18V
Input Signals
  • HDMI 2.0 x 1
  • HDMI 1.4 x 2
  • DVI Dual-link x 1
  • Displayport 1.2 x 1
  • VGA x 1 (via DVI)
Control
  • OSD Buttons
  • IR Remote
  • Ethernet
  • RS-232 (serial)
Other
  • Gamma LUT
  • PiP, PbP
  • Monitoring
  • 12/24V DC Input
  • PWM, Analog
  • Digital audio line out
  • Latency: 15ms

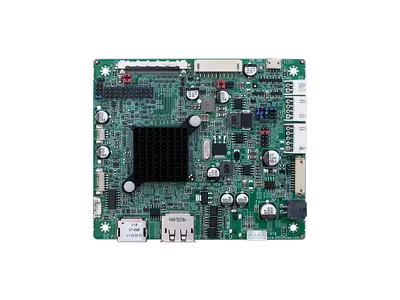

DT-4096

Description
  • True-4K, Ultra-HD
  • Product Page
  • P/N: 4178200xx-3
  • P/N: 4178200xx-5
  • 107mm x 92mm


Panel Compatibility
  • up to 4096x2160
  • V-by-One, eDP
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V, 18V
Input Signals
  • HDMI x 1
  • Displayport x 1
Control
  • OSD Buttons
  • IR Remote
  • RS-232 (serial)
Other
  • 12/24V DC Input
  • PWM, Analog
  • Latency: 12ms

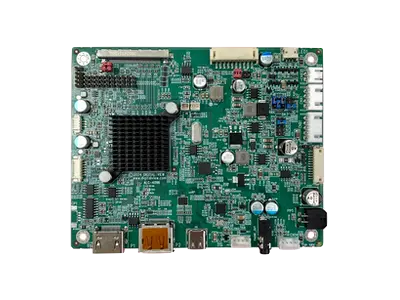

ALC-4096

Description
  • True-4K, Ultra-HD
  • NEW Q3, 2024
  • Product Page
  • P/N: 4178900xx-3
  • 127mm x 101.6mm
Panel Compatibility
  • up to 4096x2160
  • V-by-One, eDP
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V, 18V
Input Signals
  • HDMI x 1
  • Displayport x 1
  • USB-C x 1
Control
  • OSD Buttons
  • IR Remote
  • RS-232 (serial)
Other
  • 12/24V DC Input
  • PWM, Analog
  • Latency: 12ms
ALC-4096-AIH

Description
  • True-4K, Ultra-HD
  • AI integrated
  • NEW Q2, 2025
  • Product Page
  • P/N: 4179000xx-3
Panel Compatibility
  • up to 4096x2160
  • V-by-One, eDP
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V, 18V
Input Signals
  • HDMI x 1
  • Displayport x 1
  • USB-C x 1
Control
  • OSD Buttons
  • IR Remote
  • RS-232 (serial)
Other
  • 12/24V DC Input
  • PWM, Analog
  • Latency: 12ms

Full-HD LCD Controller Boards

For 1920x1080 Full-HD monitors & display systems, enhanced feature set

HX-2560-SDI

Description
  • True-4K, 4K, Ultra-HD
  • LCD, OLED
  • Product Page
  • 203.2 x 154.0mm
  • P/N: 4178000xx-3


Panel Compatibility
  • up to 4096x2160
  • V-by-One, 8 lane
  • LVDS (8 channel)
  • eDP (HBR/HBR2)
  • 60Hz (120Hz IE-2000)
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V, 18V
Input Signals
  • HDMI 2.0 x 1
  • HDMI 1.4 x 2
  • DVI Dual-link x 1
  • Displayport 1.2 x 1
  • VGA x 1 (via DVI)
Control
  • OSD Buttons
  • IR Remote
  • Ethernet
  • RS-232 (serial)
Other
  • Gamma LUT
  • PiP, PbP
  • Monitoring
  • 12/24V DC Input
  • PWM, Analog
  • Digital audio line out
  • Latency: 15ms
SVX-1920-PRO

Description


Panel Compatibility
  • up to 1920x1920
  • LVDS (2 channel)
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V, 18V


Input Signals
  • HDMI 1.4 x 1
  • DVI-I x 1
  • Displayport x 1
  • ARGB (VGA) x 1
  • 3G/HD-SDI (option)
Control
  • OSD Buttons
  • IR Remote
  • Ethernet (option)
  • RS-232 (serial)
Other
  • PiP
  • Image Flip (H&V)
  • 12/24V DC Input
  • PWM, Analog
  • Latency, 32ms
ALC-1920

Description
  • 1920 x 1200
  • NEW Q3, 2024
  • Product Page
  • P/N: 4178700xx-3
  • 107.44 x 91.57mm


Panel Compatibility
  • up to 1920x1200
  • LVDS (2 channel)
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V, 18V
Input Signals
  • HDMI 1.4 x 1
  • Displayport x 1
  • USB-C x 1
Control
  • OSD Buttons
  • IR Remote
  • Ethernet (option)
  • RS-232 (serial)
Other
  • Image Flip (H&V)
  • 12/24V DC Input
  • PWM, Analog
SP-1920v2

Description


Panel Compatibility
  • up to 1920x1200
  • LVDS (2 channel)
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V
Input Signals
  • HDMI x 2
  • DVI-D x 1
  • ARGB (VGA) x 1
  • HD/SD Component x 1
  • Composite x 2
Control
  • OSD Buttons
  • IR Remote
  • RS-232 (serial)
Other
  • Image flip
  • 12/24V DC Input
  • PWM, Analog
  • Latency: 12ms

Full-HD LCD Controller Boards

For 1920x1080 Full-HD & lower resolutions. Line buffered and low latency

ALT-1920

Description


Panel Compatibility
  • up to 1920x1200
  • LVDS (2 channel)
  • up to 8-Bit
  • 3.3V, 5V, 12V, 18V
Input Signals
  • HDMI x 1
  • DisplayPort x 1
  • ARGB (VGA) x 1
Control
  • OSD Buttons
  • IR Remote
  • RS-232 (serial)
Other
  • 12/24V DC Input
  • PWM, Analog
  • Latency: 13ms
DT-1920 Series

dt-1920 controller boards

Panel Compatibility
  • up to 1920x1200
  • LVDS (2 channel)
  • eDP
  • up to 8-Bit
  • 3.3V, 5V, 12V
Input Signals

Model dependent:

  • HDMI x 1
  • VGA x 1
  • DP x 1
Control
  • OSD Buttons
  • IR Remote
  • RS-232 (serial)
Other
  • 12/24V DC Input
  • PWM, Analog


ALR-1400v2

Description
  • 1440 x 900
  • Product Page
  • P/N: 4175800xx-3
  • P/N: 4175800xx-5
  • 107.5 x 91.4mm


Panel Compatibility
  • up to 1440x900
  • LVDS, TTL
  • up to 8-Bit
  • 3.3V, 5V, 12V, 18V
Input Signals
  • DVI-D x 1
  • VGA x 1
Control
  • OSD Buttons
  • RS-232 (serial)
Other
  • 12/24V DC Input
  • PWM, Analog
  • Auto EDID setting
  • Custom splash
  • Firmware via DVI
  • Latency: 11ms
ALR-1920

Description
  • 1920 x 1200
  • MOQ required
  • Product Page
  • P/N: 4172700xx-3
  • 107.5 x 91.5mm


Panel Compatibility
  • up to 1920x1200
  • LVDS (2 channel)
  • up to 8-Bit
  • 3.3V, 5V, 12V, 18V
Input Signals
  • HDMI x 1
  • DisplayPort x 1
  • ARGB (VGA) x 1
Control
  • OSD Buttons
  • IR Remote
  • RS-232 (serial)
Other
  • 12/24V DC Input
  • PWM, Analog
  • Latency: 11ms

MIPI Controller Boards

General purpose MIPI panel controller board

MIP-1000

Description


Panel Compatibility
  • Custom to panel
  • up to 2160x3840
  • MIPI DSI
  • 60Hz
  • up to 8-Bit
  • 1.8V, 3.3V, 5.8V
Input Signals
  • HDMI 1.4 x 1
Control
  • OSD Buttons
  • IR Remote
  • Mini PCIe slot
  • RS-232 (serial)
  • USB
Other
  • 5V DC Input
  • PWM backlight control
  • 0°C to 50°C

E Ink® - Controller Boards & Media Players

Support for larger size E Ink epaper panels for signage

SP6-315

SP6-315 board for E Ink Spectra 6

Description


Panel Compatibility
  • For E Ink 31.5"
  • Spectra 6 panels
Input Signals
  • Wi-Fi, Bluetooth
  • USB image input

Other
  • ESP32 option
  • 0°C to 50°C
SP6-133

SP6-133 board for E Ink Spectra 6

Description


Panel Compatibility
  • For E Ink 13.3"
  • Spectra 6 panels
Input Signals
  • Wi-Fi, Bluetooth
  • USB image input

Other
  • ESP32 option
  • 0°C to 50°C
EPM-100v2

Description
Panel Compatibility
  • For E Ink 32" & 42"
Input Signals
  • USB image input

Other
  • -15°C to 65°C
EPL-100

Description
Panel Compatibility
  • For E Ink 25.3", 28"
  • Color & monochrome
Input Signals
  • USB image input

Other
  • -15°C to 65°C
EPM-050C

TCON controller board for E Ink

Description


Panel Compatibility
  • For E Ink 13.3"
  • Kaleido color models
  • Up to 1600 x 1200
Input Signals
  • USB image input

Other
  • -15°C to 65°C
EPM-050

Description


Panel Compatibility
  • For E Ink 13.3"
  • Monochrome models
  • Up to 1600 x 1200
Input Signals
  • USB image input

Other
  • -15°C to 65°C

Harsher Environment LCD Controller Board Models

Enhanced specifications: Conformal coating; Extended temperature and vibration tolerance**

HX-4096

Description
  • True-4K, 4K, Ultra-HD
  • LCD, OLED
  • Product Page
  • 203.2 x 154.0mm
  • P/N: 4178001xx-3


Panel Compatibility
  • 4K: 4096x2160
  • V-by-One, 8 lane
  • LVDS (8 channel)
  • eDP (HBR/HBR2)
  • 60Hz (120Hz IE-2000)
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V, 18V
Input Signals
  • HDMI 2.0 x 1
  • HDMI 1.4 x 2
  • DVI Dual-link x 1
  • DisplayPort 1.2 x 1
  • VGA x 1 (via DVI adaptor)
Control
  • OSD Buttons
  • IR Remote
  • Ethernet
  • RS-232 (serial)
Other
  • Gamma LUT
  • PiP, PbP
  • 12/24V DC Input
  • PWM, Analog
  • Digital audio line out
  • Latency: 15ms
  • -40°C to 80°C
HX-2560-SDI

hx-2560-sdi controller board

Description
  • True-4K, 4K, Ultra-HD
  • LCD, OLED
  • Product Page
  • 203.2 x 154.0mm
  • P/N: 4175500xx-3


Panel Compatibility
  • up to 2560x1600
  • LVDS (4 channel)
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V, 18V
Input Signals
  • HDMI x 2
  • Displayport x 1
  • ARGB (VGA) x 1
  • 3G/HD-SDI x 1
Control
  • OSD Buttons
  • IR Remote
  • Ethernet
  • RS-232 (serial)
Other
  • PiP, PBP
  • Image Flip (H&V)
  • 12V/24V DC Input
  • PWM (12 bit), Analog
  • Latency, 32ms
  • -40°C to 80°C
HX-1920-PRO

hx-1920-pro controller board

Description
  • 1920 x 1200
  •   NEW
  • Product Page
  • P/N: 4177301xx-3
  • 179.1 x 120.4mm
Panel Compatibility
  • up to 1920x1920
  • LVDS (2 channel)
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V, 18V
Input Signals
  • HDMI 1.4 x 1
  • DVI-I x 1
  • Displayport x 1
  • ARGB (VGA) x 1
  • 3G/HD-SDI (option)
Control
  • OSD Buttons
  • IR Remote
  • Ethernet
  • RS-232 (serial)
Other
  • PiP
  • Image Flip (H&V)
  • 12/24V DC Input
  • PWM, Analog
  • Latency, 32ms
  • -40°C to 80°C
HSP-1920v2

Description


Panel Compatibility
  • up to 1920x1200
  • LVDS (2 channel)
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V
Input Signals
  • HDMI x 2
  • DVI-D x 1
  • ARGB (VGA) x 1
  • HD/SD Component
  • Composite x 2
Control
  • OSD Buttons
  • IR Remote
  • Ethernet
  • RS-232 (serial)
Other
  • Image flip
  • 12/24V DC Input
  • PWM, Analog
  • Latency: 12ms
  • -40°C to 80°C
HSP-1920

Description
  • 1920 x 1200
  • EXISTING PROJECTS
  • Product Page
  • P/N: 4176001xx-3
  • 179.1 x 120.4mm


Panel Compatibility
  • up to 1920x1200
  • LVDS (2 channel)
  • up to 10-Bit
  • 3.3V, 5V, 10V, 12V, 18V
Input Signals
  • HDMI x 2
  • DVI-D x 1
  • ARGB (VGA) x 1
  • HD/SD Component
  • Composite x 2
  • USB media failover
Control
  • OSD Buttons
  • IR Remote
  • Ethernet
  • RS-232 (serial)
Other
  • Image flip
  • 12/24V DC Input
  • PWM, Analog
  • -20°C to 80°C
HLT-1920

Description


Panel Compatibility
  • up to 1920x1200
  • LVDS (2 channel)
  • up to 8-Bit
  • 3.3V, 5V, 12V, 18V
Input Signals
  • HDMI x 1
  • DisplayPort x 1
  • ARGB (VGA) x 1
Control
  • OSD Buttons
  • IR Remote
  • Ethernet
  • RS-232 (serial)
Other
  • 12/24V DC Input
  • Ceramic capacitors
  • PWM, Analog
  • Latency: 13ms
  • -40°C to 80°C
HE-1400v2

Description
  • 1400 x 900
  • Product Page
  • P/N: 4175801xx-3
  • P/N: 4175801xx-5
  • 107.5 x 91.4mm


Panel Compatibility
  • up to 1400x900
  • LVDS (2 channel)
  • TTL
  • up to 8-Bit
  • 3.3V, 5V, 12V, 18V
Input Signals
  • DVI-D x 1
  • ARGB (VGA) x 1
Control
  • OSD Buttons
  • IR Remote
  • Ethernet
  • RS-232 (serial)
Other
  • High MTBF
  • Tantalum capacitors
  • 12/24 VDC Input
  • PWM, Analog
  • Latency: 11ms
  • -40°C to 80°C
