HE-1400v2 LCD Controller Board

  • LCD support: Up to 1440x900 panel resolution, 8-Bit
  • Panel connectivity: TTL, LVDS
  • Inputs: DVI & ARGB (VGA)
  • Conformal coating
  • Extended operating temperature range
  • RS-232 serial command & control
  • Customization options: See below & Contact us

  • Part number: 4175801xx-3
  • Part number: 4175801xx-5

HE-1400v2 LCD Controller Board

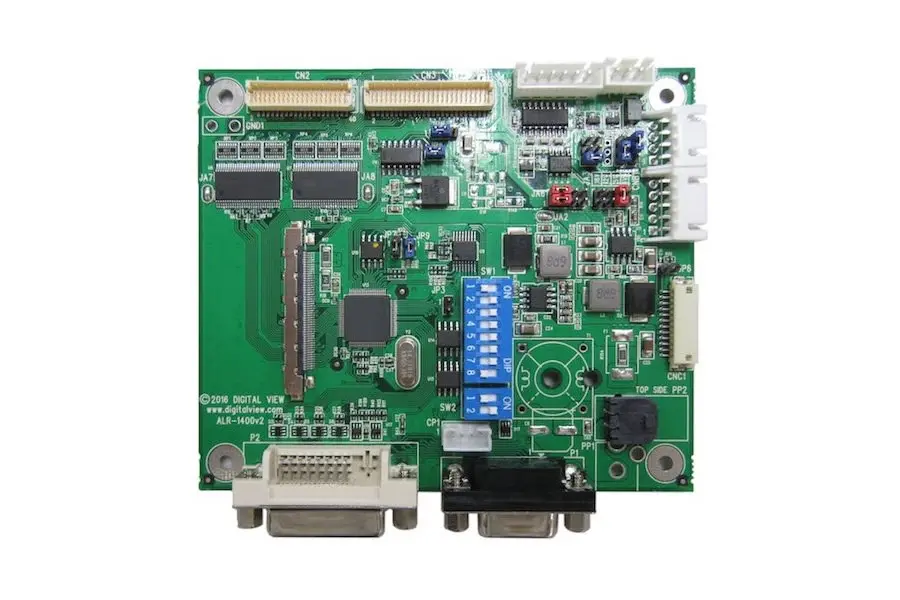

The Digital View HE-1400v2 interface controller, it is a version of the ALR-1400v2 enhanced for harsher environments; it is designed for commercial & industrial monitor development converting DVI or ARGB(VGA) video to TTL or LVDS signals for LCD panel connection. Supported panels include: AUO, BOE, Innolux, KOE, LG Display, Mitsubishi, NLT, Samsung, Sharp, Tianma and others.

NOTE: This model replaces the HE-1400 p/n: 4171001XX-3

Specifications: HE-1400v2

LCD Panel Connectivity
  • Panel connection: LVDS (2 channel), TTL @60Hz
  • Panel resolution: Up to 1440x900 including standard & custom resolutions
  • Colors: Up to 8 bit per color
  • Controller power: +12VDC / 24 VDC +/- 25%, 2.5W (controller power only)
  • Panel power: Supports 3.3V, 5V, 12V, 18V
  • Backlight inverter/driver support: PWM, DPMS Enable pin (5V or 3.3V)
  • Connection Diagrams: For Connection Diagrams showing setup details for connecting specific LCD panels see the Digital View Controller Solution Generator, click here.
  • Customization: Contact us for details of customization options.
Input: Analog RGB (x1)
  • 60Hz SXGA, WXGA, XGA, SVGA, VGA
  • Sync-On-Green & Digital Separate Sync. Auto detects
  • VGA-SXGA, non-interlaced
Input: DVI-D (x1)
  • 60Hz SXGA, WXGA, XGA, SVGA, VGA
Function Interface
  • On Screen Display (OSD) menu
  • Functions can be called by buttons
  • Functions are also accessible via a Serial port (RS-232).
Functions
  • Basic: Auto image adjust, Brightness, Contrast, Sharpness, Clock, Phase, Color temperature, Image position, Gamma
  • Additional: System Information, OSD position, Auto source seek, OSD timeout, Factory reset, OSD menu transparency, Select input source, Aspect ratio
Other
  • Status indicators on board: Dual color or LED
  • Plug & Play: DDC 1.2/b compatible
  • Conformal coating: HumiSeal IB73, acrylic, spray application

Customization

(options*)


  • As with all Digital View controllers there are various custom engineering options available:
  • Panel timing
  • Splash screen, this shows during initial power up
  • Hotkey presets
  • Menu changes
  • Hardware modifications & build options
  • Contact us for details.

Reliability


  • Operating temperature range: -40°C to 80°C1
  • MTBF in excess of 100,000 hours @ 25°C (calculated using Telcordia SR-332 procedure)
  • Warranty 3 years

Downloads: HE-1400v2

B​rochure (PDF)
Manual (PDF)
Revision Note (PDF)
2D Drawing (PDF)
2D Drawing (DWG)
3D Drawing (SLDPRT, STEP)

Application Notes

Guide to using RS-232 commands
Renaming video input ports on the menu
User defined gamma LUT
Firmware upgrade via programmer board

LCD Panel Connection Diagrams

Controller Solution Generator

Software Web Page

Link: Software web page
Includes applications for remote control, settings updates and more.

Statements & Declarations

Statement of volatility
Compliance & declarations page
