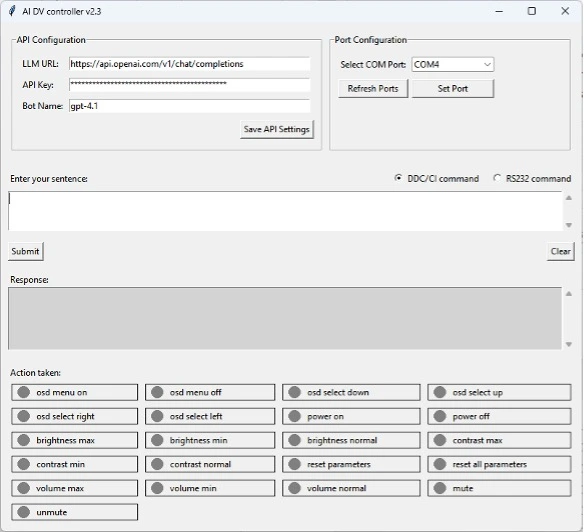

AI Ready Demo App

• The AI Ready Controller application enables natural-language operation of Digital View LCD controller boards using any major LLM, including ChatGPT, Llama, and Gemini.
• The Windows-based application, below, converts user text instructions into standard RS-232 or DDC/CI commands, allowing hands-free or simplified control of display functions.

DOWNLOADS

• Demo App: AI-DV-controller-v2.3-setup.rar
• AI Ready Controller Quick Guide (PDF)
• App Note (PDF)

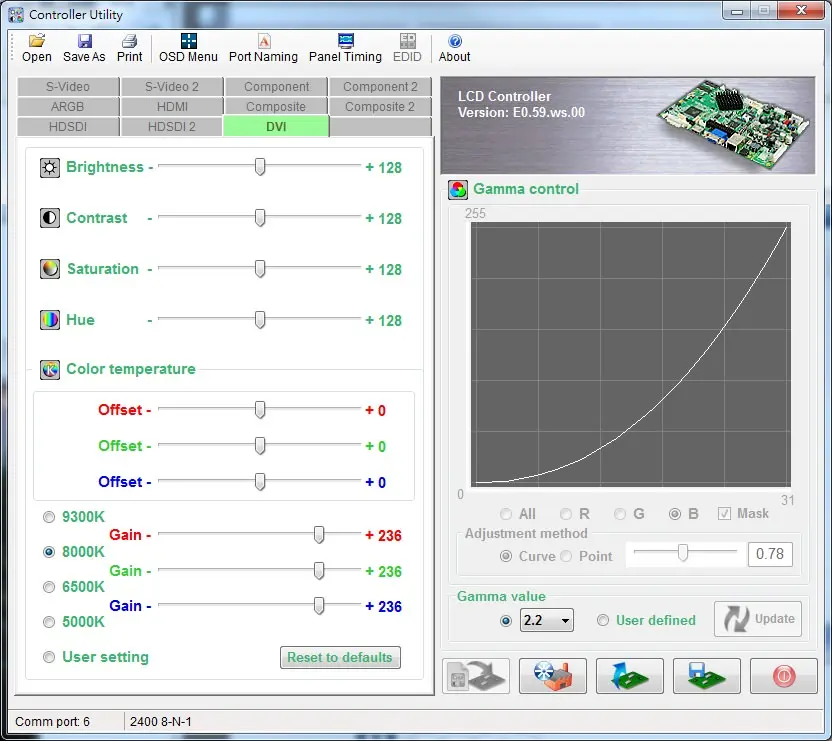

Controller Utility

• This application can be used to control LCD controller functions via RS-232 using a GUI interface. There is an extensive feature set and this is an excellent way to set or experiment with controller functions. Custom version are available.
• Designed for display & monitor developers. The Controller Utility works with Windows and supports RS-232 communication (for PC's with USB a USB to RS-232 converter can be used), it has a wholly graphical UI, users do not need to be familiar with serial commands, just click the button or icon to execute the OSD function.
• V1.31 enables reset to default values without the option to maintain Hotkey settings.
• The software only supports RS-232 communication.
• Only executes a single function at a time.

DOWNLOADS

• Controller Utility v1.40, Mar 2023 (EXE file)
• User guide pending
• Controller Utility Release Notes, Mar 2023 (PDF)
• SVX-4096 create custom panel timing (PDF)
• SP-1920 create custom panel timing (PDF)

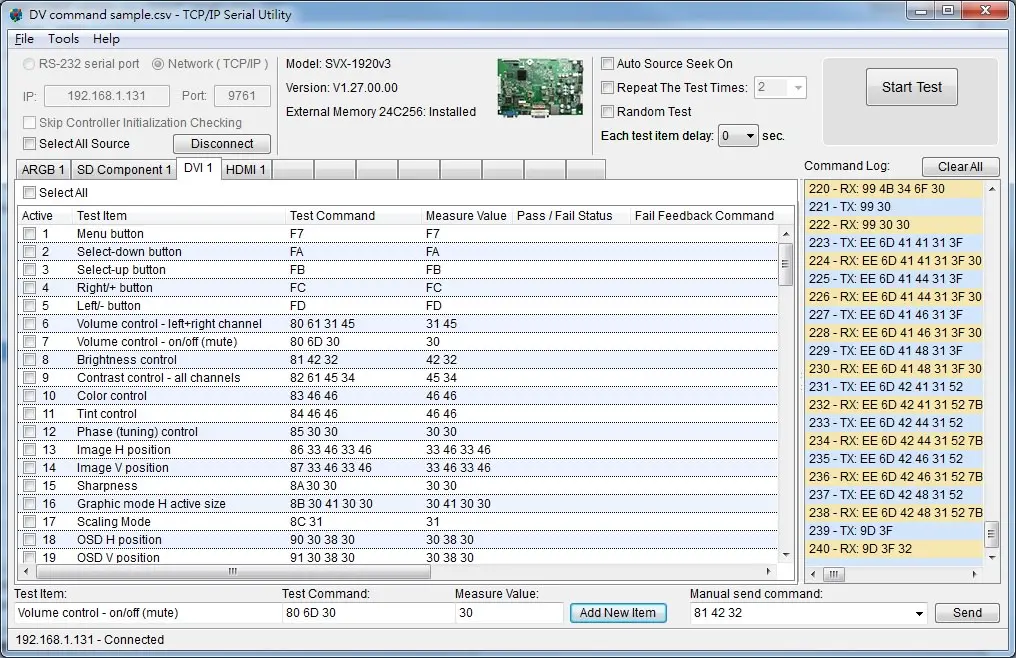

TCP/IP Serial Utility

(previously called "Controller Tester")

Intended for users that are comfortable using commands the TCP/IP Serial Utility provides a user interface for sending serial commands to Digital View controller boards via Ethernet or RS-232. This utility also provides the ability to make panel timing adjustments for newer panel models with certain controllers, contact us for details.

• This is a line command UI. To use it the user needs to be familiar with entering serial commands in order to execute the OSD function.
• The software supports both Network or RS-232 communication.
• Able to save and execute a batch (sequence) of commands.

DOWNLOADS

• TCP-IP Serial Utility v1.17 (Jul 2023)
• No documentation for this.

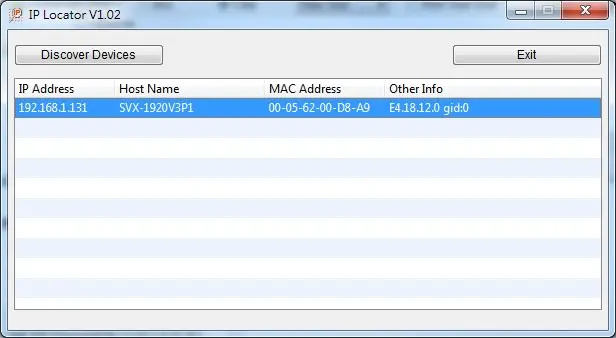

IP Locator

• Enables a user to detect LCD controllers / monitors on the network.

DOWNLOADS

• IP Locat​or v1.02

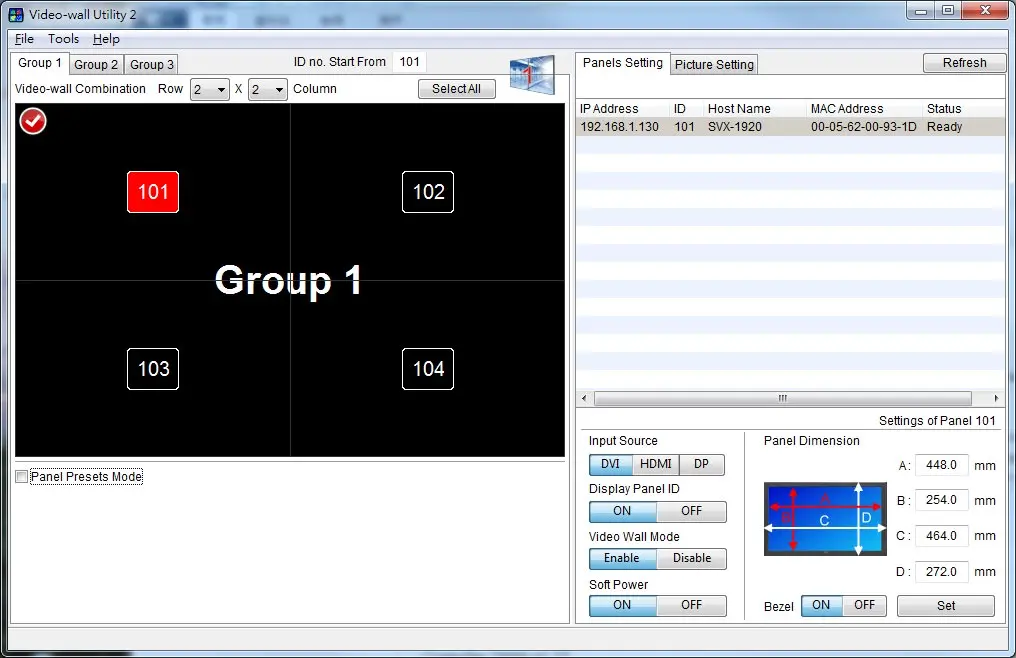

Video Wall Utility

Utility program to configure and setup a video wall when using SVX-4096-VW.

DOWNLOADS

• Contact us for details

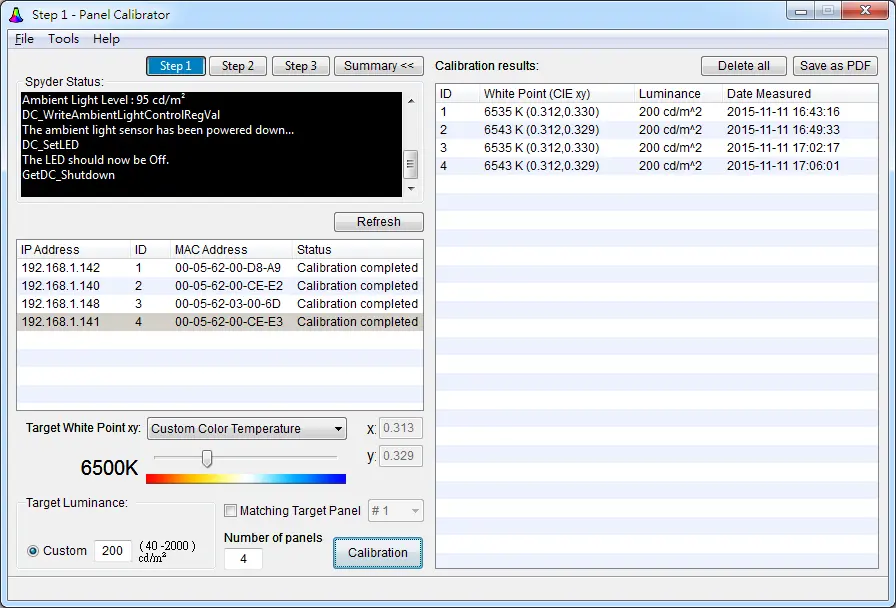

Panel Calibrator

Utility program to color match video wall monitors. This requires the Spyder 5 colorimeter.

DOWNLOADS

• Contact us for details

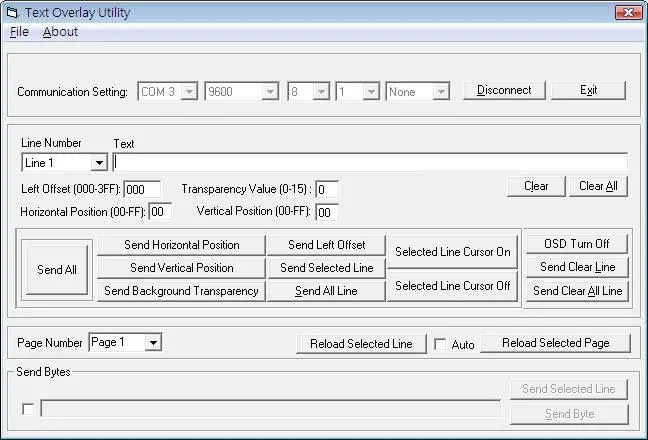

Text Overlay

Utility program to send text over serial for LCD controller supported text overlay functions.

DOWNLOADS

• Text Overlay v1.09

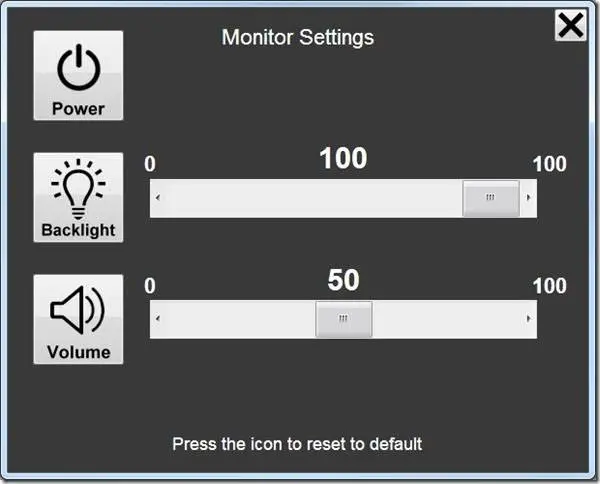

Demo for touch screen

• A basic demo to adjust brightness and switch to standby with a touch screen. (Note: The standby function has a bug, this message will be removed when it is fixed)

DOWNLOADS

• Brightness, Volume & standby for touch

Sample Source Code

Sample utilties to control backlight brightness with source code.

DOWNLOADS

• Brightness control - RS-232 (Serial VB2017)
• Brightness control - Ethernet (TCP VB2017)

Firmware Programming Utilities

Software utilities to support upgrading LCD controller firmware. Depending on the LCD controller model firmware upgrades can be done via USB, HDMI, Displayport, RS-232. Some models require and interface board.

Contact Digital View for details
