DRIVER BOARDS FOR E INK

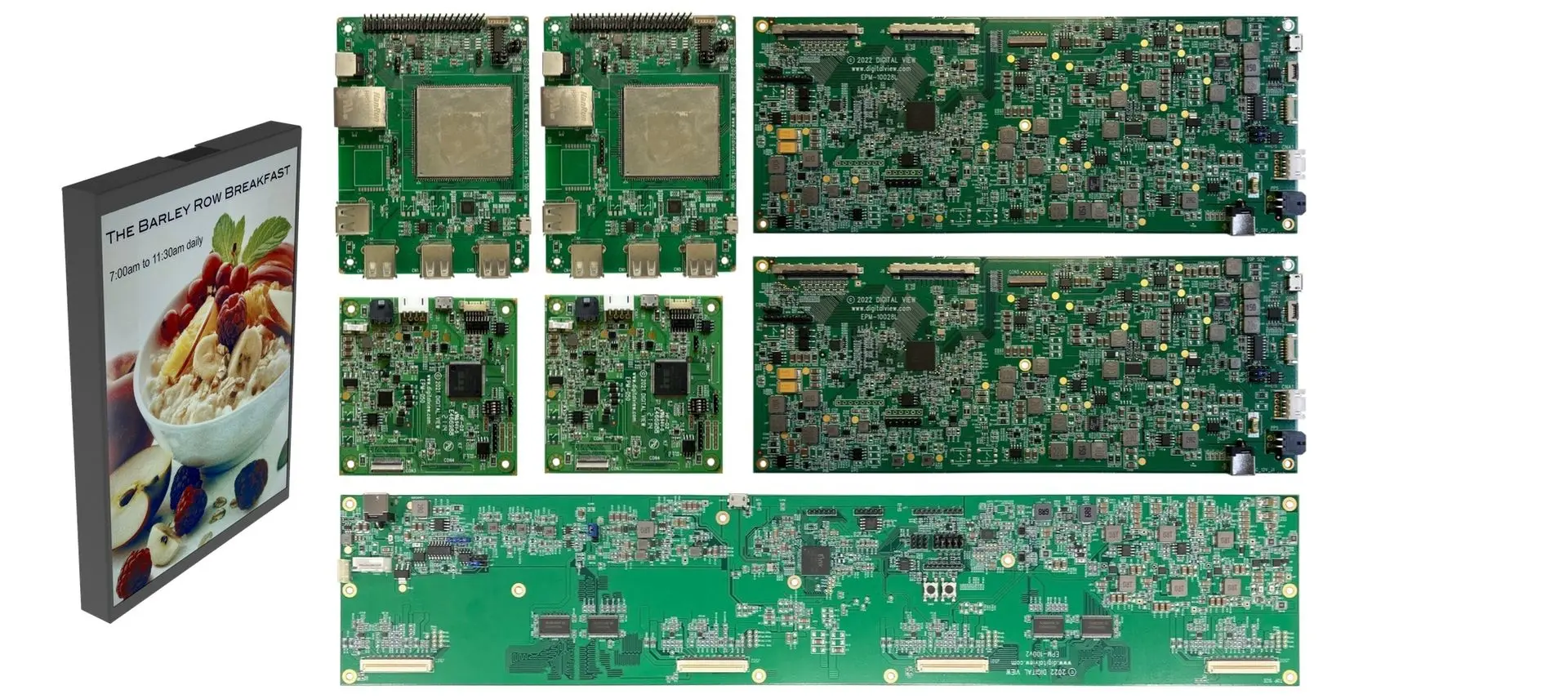

Digital View makes TCON driver boards for E Ink displays
E Ink® - Controller Boards & Media Players
Support for E Ink epaper panels for signage, 13.3" and larger
CHOOSING A DRIVER BOARD
Digital View TCON boards write images to E Ink epaper panels. Unlike an LCD controller they do not carry continuous video — you send a still image, and the panel holds it without power until the next update.
Select by panel first. Each board supports particular panel sizes and one of E Ink's technologies: monochrome, Kaleido color, or Spectra 6 color. Then choose how images reach the board — every model accepts USB image input, several add Wi-Fi and Bluetooth, and the STM-100 media player adds network and cellular options for installations updated remotely.
All models operate from -15°C to 65°C.
Description
- Product Page
- P/N: 4160246xx-3
- 230 x 92mm
Panel Compatibility
- E Ink 75" Kaleido
Input Signals
- USB image input
Other
- -15°C to 65°C
Description
- Product Page
- P/N: 4160246xx-3
- 230 x 92mm
Panel Compatibility
- E Ink 25.3", 28"
- Color & monochrome
Input Signals
- USB image input
Media
- Integrated ESP32
Other
- -15°C to 65°C
Description
- Product Page
- P/N: 4160246xx-3
- 230 x 92mm
Panel Compatibility
- E Ink 25.3", 28"
- Color & monochrome
Input Signals
- USB image input
Other
- -15°C to 65°C
Description
- Product Page
- P/N: 4160241xx-3
- 400 x 80mm
Panel Compatibility
- E Ink 32" & 42"
Input Signals
- USB image input
Other
- -15°C to 65°C
Panel Compatibility
- E Ink 31.5" Spectra 6
Input Signals
- Wi-Fi, Bluetooth
- USB image input
Media
- Integrated ESP32
Other
- ESP32 option
- 0°C to 50°C
Panel Compatibility
- E Ink 13.3" Spectra 6
Input Signals
- Wi-Fi, Bluetooth
- USB image input
Media
- Integrated ESP32
Other
- ESP32 option
- 0°C to 50°C

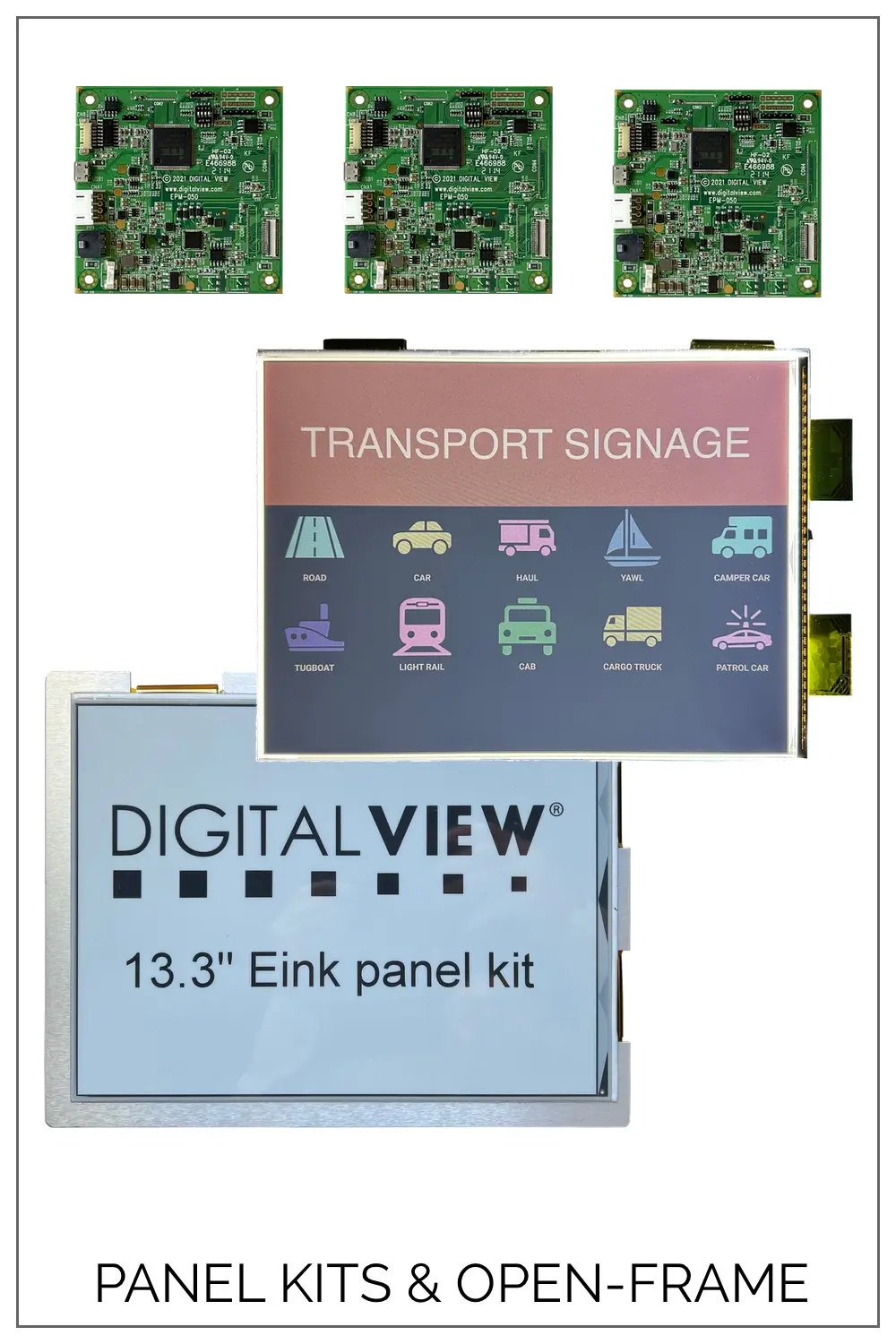

Panel Compatibility
- E Ink 13.3"
- Kaleido color models
- Up to 1600 x 1200
Input Signals
- USB image input
Other
- -15°C to 65°C
Panel Compatibility
- E Ink 13.3"
- Monochrome models
- Up to 1600 x 1200
Signals
- USB image input
Other
- -15°C to 65°C
Panel Compatibility
- E Ink displays
Signals
- Network
- WiFi option
- Cellular option
Other
- -15°C to 65°C
Platform
- Windows
Function
- Writes images to E Ink driver boards over USB
Intended use
- Evaluation, bench testing, and small networks
