EPM-050C TCON controller for E Ink

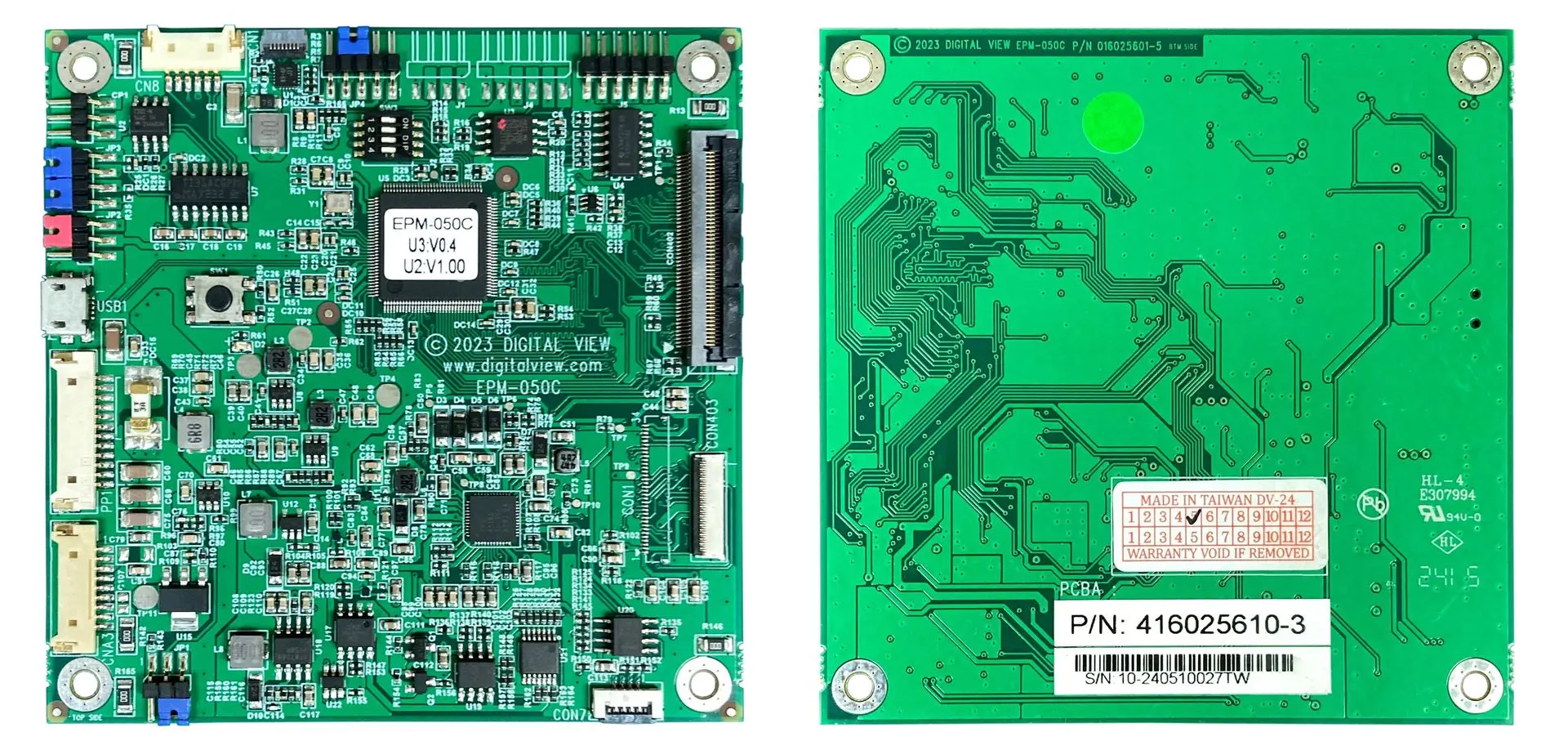

EPM-050C TCON Controller Board

  • Panel support: E Ink 13.3" monochrome or color (Kaleido)
  • Inputs: Micro USB
  • Power 5VDC or 12VDC
  • Size 75mm x 75mm x 4mm (3" x 3")
  • Customization: Contact us

  • Part number: 4160256xx-3


Boards for E Ink epaper displays

EPM-050C TCON Controller Board

The Digital View EPM-050C interface board is designed for E Ink 13.3" Kaleido color reflective e-paper display panels, it also supports the three color black, white, red panels and the monochrome models. This low power interface accepts an image transferred over USB from a source media player such as the Digital View STM-100, Raspberry Pi or Android PC. E Ink based displays are ideal for public signboards, transport information displays and similar. The significant benefits include the high visibility in bright environments as well as the ability to operate from solar power due to the very low power consumption.

The display system design is broadly similar to working with LCD panels except that the TCON controller board, EPM-050, has a USB interface for the transfer of bitmap images from a media source. Also, partial screen writes are possible enabling faster image updates and further reductions in power consumption. We will be preparing a guide to working with E Ink panels, in the meantime contact us and we will be happy to explain.

Custom layout with additional functions or integration is available as an engineering service. In addition Digital View can assist with display bonding and other integration requirements for the E Ink panel. See also, the 32" and 42" outdoor display which is design as the basis for outdoor project development: Outdoor display.

Specifications: EPM-050C

Panel Connectivity
  • E Ink 13.3" Kaleido color (EC133UJ1)
  • E Ink 13.3" 3 color, black, white, red (EL133UR1)
  • E Ink 13.3" Monochrome (ED133UT3)
Resolution
  • For 13.3": 1600 x 1200
Functions
  • Image rotation: 180 degrees
  • Image mirror (horizontal flip)
  • 16 level grey scale mode
Input connector
  • Micro USB (for image input)
  • For demonstrations and small networks we provide Raspberry Pi Zero 2W, 3B+, 4B support as a media player and a Windows application for users to create and transfer images to E Ink displays.
Sensors
  • Built-in temperature sensor
Power
  • Power input 5VDC default, 12VDC selectable (jumper)
  • Power output (option): 5V DC for (for 12V input only) Raspberry Pi

  • Standby power consumption (as measured):
  • 13.3" Panel + EPM-050 + = 0.5W
  • Raspberry Pi3 (Model B+) = 0.32A x 5VDC = 1.6W

  • During image write to panel (as measured):
  • 13.3" Panel + EPM-050 + x 12VDC = 1.5W
  • Raspberry Pi3 (Model B+) = 0.61A x 5VDC = 3.05W
Image file
  • Supports bitmap (bmp) file format
Size
  • 90mm x 90mm
Operating temperature
  • -15°C to +65°C (based on chamber temperature tests)
Reliability
  • MTBF in excess of 200,000 hours @ 25oC (calculated using Telcordia SR-332 procedure)
  • Warranty 3 years

Customization
(options*)


  • PCB design and layout
  • Component & connector selection

*Note: Customization is subject to quote - engineering charges and MOQ may apply.
