EPM-100v2 TCON Controller Board
- Panel support: E Ink 31.2" & 42" monochrome E Ink panels
- Inputs: Micro USB
- Power: 12VDC
- Image update: Demo applications & Verdsign CMS
- Customization: Contact us
- Part number EPM-100v2: 4160241xx-3
- Part number FCC cables: 426160610-3
Boards for E Ink epaper displays

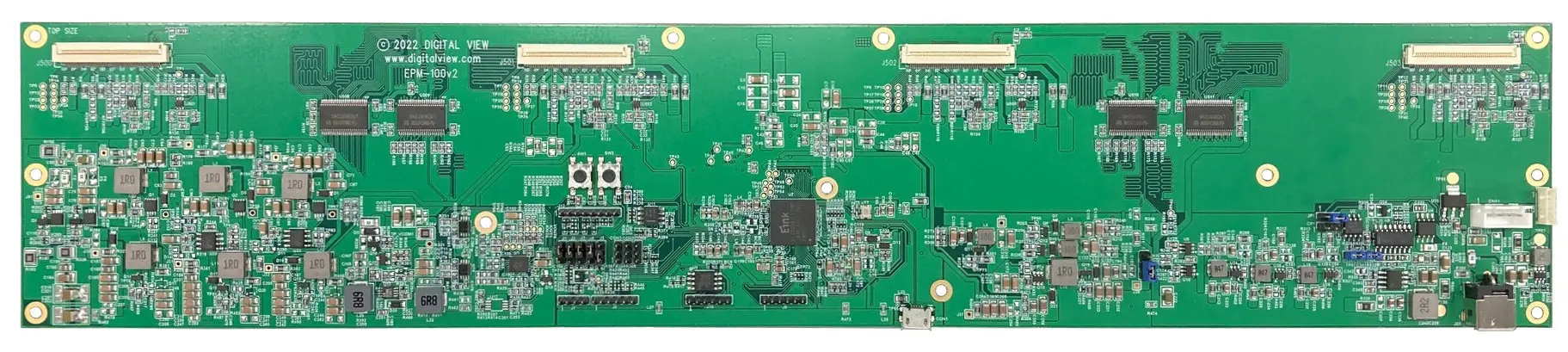

EPM-100v2 TCON Controller Board
The Digital View EPM-100v2 Tcon controller board is designed for E Ink 31.2" and 42" monochrome epaper panels. This low power interface accepts an image transferred over USB from a source media player such as a Raspberry Pi, Digital View STM-100 media player or Android PC. E Ink based displays are ideal for public signage, the significant benefits include high visibility in bright environments as well as the ability to operate from solar power due to the very low power consumption.
See the connection guide below, after the Specifications
Options: Custom controller board layout with additional functions or integration is available as an engineering service. In addition Digital View can assist with display bonding and other integration requirements for the E Ink panel. See also, the 31.2" and 42" outdoor display which is design as the basis for outdoor project development: Outdoor display.
Specifications: EPM-100v2
Panel Connectivity
- E Ink 31.2" (ED312TT2, ED312TT3), uses 4 x FFC cables
- E Ink 42" (ED420TT3, ED420TT5), uses 2 x FFC cables
- Note: Download the Connection Diagram for the relevant panel model here
Resolution (pixels)
- Advanced scaling engine for upscaling, eg Full-HD to 4K
- Dynamic video image processing
- Firmware level options
Functions
- 31.2": 1440 x 2560
- 42": 2160 x 2880
Input
- Image rotation: 0/90/180/270 degrees
- Image mirror
- Image flip
- On-board temperature sensor
- 16/32 level grey scale mode
Power
- Power input 12V DC
- Power output (option): 5V DC
Standby power consumption (as measured):
- 42" Panel + EPM-100v2: 0.06A x 12VDC = 0.7W
- 31.2" Panel + EPM-100v2: 0.06A x 12VDC = 0.7W
- Digital View STM-100, TBA
- Raspberry Pi3 (Mode B+) = 0.32A x 5VDC = 1.6W
During image write to panel (as measured):
- 42" Panel + EPM-100v2: 1.2A x 12VDC = 14.6W
- 31.2" Panel + EPM-100v2: 0.8A x 12VDC = 9.7W
- Digital View STM-100, TBA
- Raspberry Pi3 (Model B+) = 0.61A x 5VDC = 3.05W
Image File
- Supports bitmap (bmp) file format
Operating temperature
- 0°C to +50°C
Reliability
- MTBF in excess of 200,000 hours @ 25oC (calculated using Telcordia SR-332 procedure)
- Warranty 3 years
Customization options
Layout
Component & connector selection
*Note: Customization is subject to quote - engineering charges and MOQ may apply.
Downloads ALC-4096
Brochure (PDF)
Manual (PDF)
Revision Note (PDF)
2D Drawing (PDF)
2D Drawing (DWG)
3D Drawing (SLDPRT, STEP)
