STM-100 Media Player for E Ink
A media board with CPU as the media receiver and player for E Ink based display systems
- For E Ink epaper displays
- Low power
- Sleep mode
- Compatible with Digital View TCON controllers for E Ink
- Software for single units and small to large networks
- Part number: 4160254xx-3
Boards for E Ink epaper displays
STM-100 Media Player for E Ink
We designed the STM-100 media board specifically for use as part of an E Ink epaper display system. The STM-100 media board will receive and process image content for display on E Ink based epaper display systems. It is designed to be used with Digital View controller boards. Key features include specific content compatibility, remote content server compatibility, and low-power standby. As a CPU based board, it can also be customized for other functions.
The STM-100 continues Digital View's heritage in digital signage technology.
Specifications: STM-100
Pro cessor
- ST Micro ARM Cortex processor, a powerful low power processor.
- The STM-100 is designed to control the images and scripts for E Ink based digital signs. The low-power standby mode is particularly relevant to solar/battery based display systems.
Operating System
- Embedded Linux, open for custom or customer development
Input & Outputs
- Ethernet 10/100/1000M

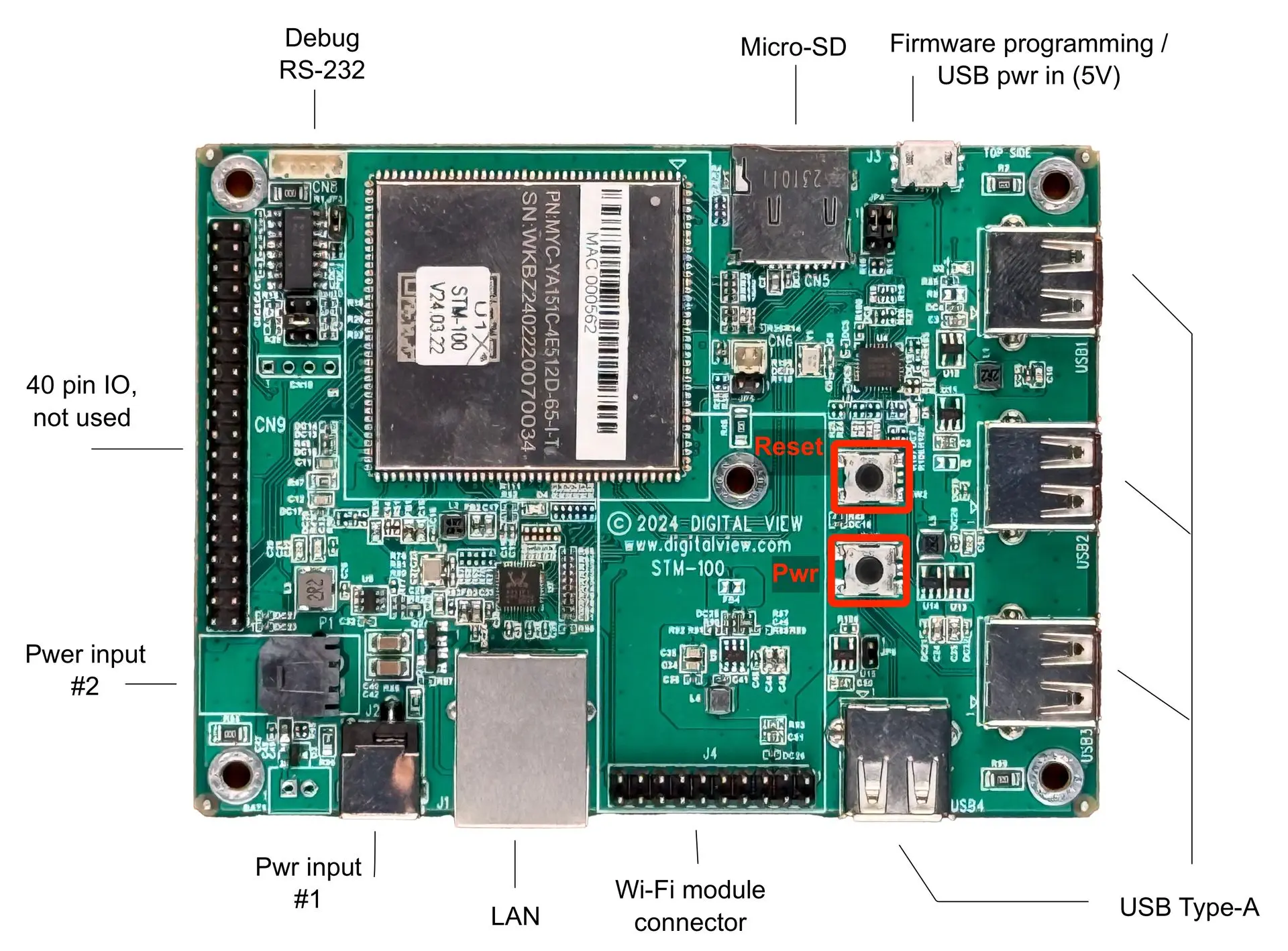

- 4 x USB type A, for connection to up to four Digital View epaper controller boards
- Power, 12V DC
- Firmware upgrade port
Memory on-board
- 2Gbytes internal flash
Board size (PCB)
- 111mm x 83mm
Controller compatibility
The STM-100 is designed to be used with:
- EPM-050 for E Ink 13.3" monochrome panels
- EPM-050C for E Ink 13.3" color panels (Kaleido)
- EPL-100 for E Ink 25.3" & 28" panels
- EPM-100v2 for E Ink 31.2" & 42" monochrome panels
- SP6 boards for E Ink Spectra 6 panels
Content Update
The STM-100 is compatible with:
- Conversar CMS, our cloud based signage system
- EP Demo App, an easy to use Windows based app suitable for 1 to 3 displays
Functions
- Media conversion and formatting,
- Log file recording & reporting,
- Power management.
Release Date
- Q1, 2024
*Note: Customization is subject to quote - engineering charges and MOQ may apply.
Downloads STM-100
Brochure (PDF)
Manual (PDF)
Revision Note (PDF)
2D Drawing (PDF)
2D Drawing (DWG)
3D Drawing (SLDPRT, STEP)
Application Notes
LCD Panel Connection Diagrams
Controller Solution Generator
Software Web Page
Link: Software web page
Includes applications for remote control, settings updates and more.
