EPL-100 TCON for E Ink

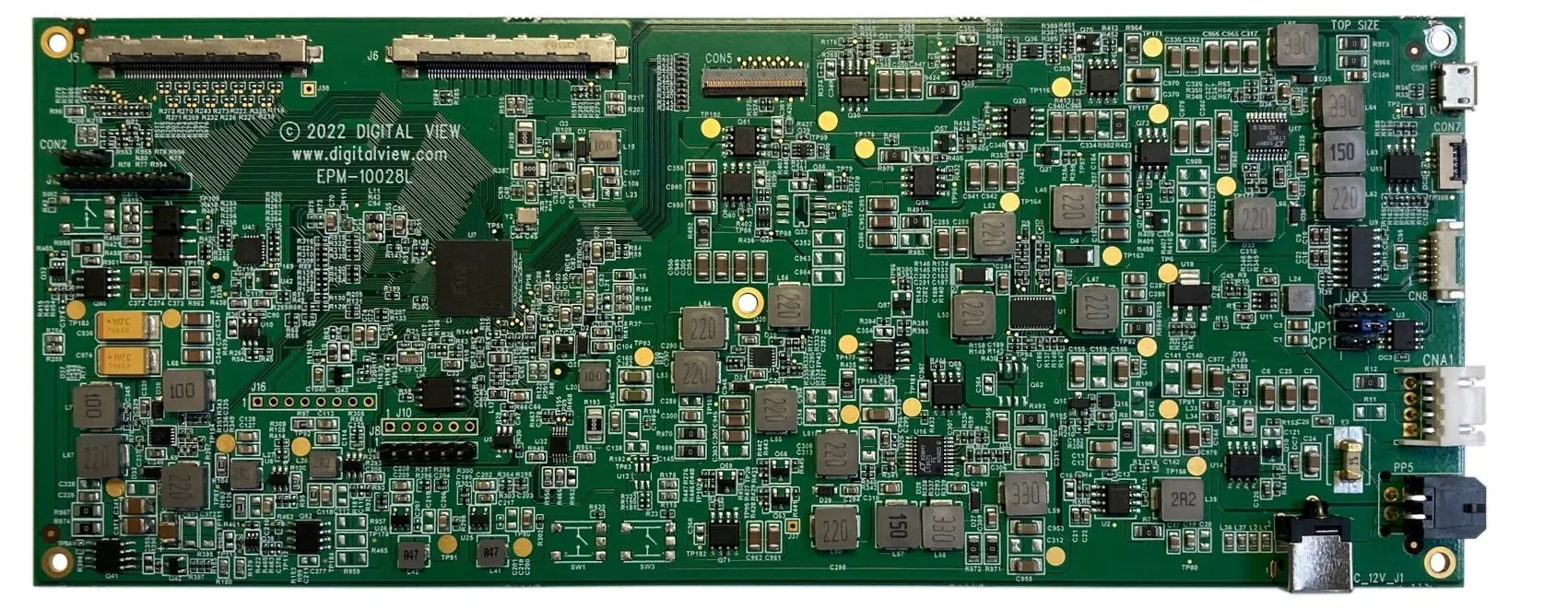

EPL-100 TCON Controller Board

  • Panel support: E Ink
  • 25.3", 28.1" & 28.5"
  • Inputs: Micro USB
  • Panel support: E Ink 25.3", 28.1" & 28.5"
  • Power: 12V DC

•  Part number

  •     EPL-100 board: 4160246xx-3
  •     FFC cables: TBA

Boards for E Ink epaper displays

EPL-100 TCON Controller Board

The Digital View EPL-100 controller board is designed for E Ink 25.3" and 28" epaper display panels. This low power interface accepts a bitmap image transferred over USB from a source media player such as a Raspberry Pi or Android PC. E Ink based displays are ideal for public signage, the significant benefits include the high visibility in bright environments as well as the ability to operate from solar power due to the very low power consumption.

See the connection guide below, after the Specifications

Options: Custom controller board layout with additional functions or integration is available as an engineering service. In addition Digital View can assist with display bonding and other integration requirements for the E Ink panel.

Specifications: EPL-100

Panel Connectivity

Refer to the appropriate Connection Diagram (PDF)

  • E Ink 25.3"
  • EC253TT1 (Kaleido)
  • EL253TV1, EL253EW1 (Spectra-6)
  • ED253TT3

  • E Ink 28.1"
  • ED280TT1

  • Sharp 28.5" Spectra6 color
  • LP285A6NW11
Resolution

The EPL-100 supports the native resolutions of the E Ink panels

  • 25.3": 2560x 1440 (16:9 aspect ratio)
  • 28": 3840 x 1080 (32:9 aspect ratio)
Functions
  • Image rotation: 0/90/180/270 degrees
  • Image mirror
  • Image flip
  • Built-in temperature sensor
  • 16/32 level grey scale mode
Input
  • Micro USB (for image transfer)
Power

Power input 12V DC
Power output (option): 5V DC

Standby power consumption (as meaasured):

  • 25.3” Panel + EPL-100: 0.06A x 12VDC = 0.7W
  • 28” Panel + EPL-100: 0.06A x 12VDC = 0.7W
  • Digital View STM-100
  • Raspberry Pi3 (Model B+) = 0.32A x 5VDC = 1.6W

During image write to panel (as measured):

  • 25.3” Panel + EPL-100: 1.2A x 12VDC = 14.6W
  • 28” Panel + EPL-100: 0.8A x 12VDC = 9.7W
  • Digital View STM-100
  • Raspberry Pi3 (Model B+) = 0.61A x 5VDC = 3.05W
Image file
  • Supports bitmap (bmp) file format
Operating Temperature
  • 0°C to +50°C
Reliability
  • MTBF in excess of 200,000 hours @ 25oC (calculated using Telcordia SR-332 procedure)
  • Warranty 3 years
Customization
(options)

LayoutComponent & connector selection

*Note: Customization is subject to quote - engineering charges and MOQ may apply.
