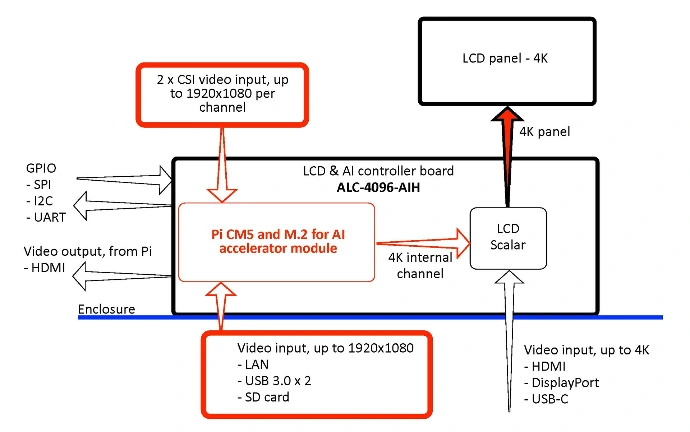

The ALC-4096-AIH is our first LCD controller with the addition of an AI accelerator and a compute module. The board also includes a selection of IO pins for sensors and other data input as well as two CIS ports for camera input. This is a developing project and an ongoing initiative for Digital View.

AI Accelerator

• Hailo module on PCIe M.2 connector, max power 13W
• Hailo modules: 10H (40 TOPS), 8 (26 TOPS), 8L (13 TOPS)
• The Hailo processors support high performance processing of generative AI models including LLMs with minimal CPU / GPU load.
• Optimized for computer vision, object detection, and edge AI applications. See the compute section.

Scaling & Color

• Advanced scaling engine for upscaling, eg Full-HD to 4K
• Dynamic video image processing
• Firmware level options

Input: USB-C (x1)

For display video, and USB touch passthrough:

• up to 4096x2160, @60Hz
• up to 1600x1200, @75Hz
• 480p, 576p, 720p, 1080p, 4k/30/60

Input: HDMI 2.0 (x1)

For display video:

• up to 4096x2160, @60Hz
• up to 1600x1200, @75Hz
• 480p, 576p, 720p, 1080p, 4k/30/60

Input: Displayport 1.2 (x1)

For display video:

• up to 4096x2160, @60Hz
• up to 1600x1200, @75Hz
• 480p, 576p, 720p, 1080p, 4k/30/60

Touch header

• Internal USB 2.0 header for touch panel controller connection

Function Interface

• On Screen Display (OSD) menu
• Functions can be called by buttons or via serial port (RS-232)

Function Controls

• External buttons, Infra-Red controls,
• Serial Port (RS-232) control
• Note: Full details are available from the Manual in the Downloads section of this page.

Functions

Basic: Backlight brightness, Contrast, Color Temperature, Gamma, Saturation, Hue, Sharpness, Black level

Additional: Input source select, Auto source seek, Programmable hotekeys, Display rotate, OSD position, OSD timeout, OSD menu transparency, OSD menu orientation, System Information, Image scaling -Up/Down scaling to fit input to panel resolution & aspect ratio, Volume control, Onboard temperature sensor, support for ambient light sensor, Load factory defaults.

Note: The full command set is provided in the Manual in the Downloads section of this page, and software is available from the Software page.

I/O Interfaces

• SPI, I2C, UART, GPIO for peripheral expansion.
• RS232 support for legacy device compatibility.
• Infrared (IR) input for remote control functionality.
• Switch mount input for external buttons and controls.

Network & Storage

• Gigabit Ethernet (CM5 LAN support) for high-speed networking.
• USB 3.0 x2 for peripherals, external storage, or high-speed data transfer.
• SD Card support for local storage.

Output: Audio

• Line out, stereo, no amplification.
• Supports Digital View audio add-on board with OSD volume control.

Other

• Status indicators on board: Dual color or LED
• Plug & Play: DDC 1.2/b compatible
• Latency: 12ms

Size

• 127mm x 101.6mm x 16mm (max)
• See the Download section on this page for technical drawings

Reliability

• MTBF in excess of 500,000 hours @ 25⁰C (calculated using Telcordia SR-332 procedure)
• Warranty 3 years

Customization
(options*)

• Panel timing
• Video input timing support
• Custom EDID
• Splash screen logo, ie during start-up
• Custom hotkeys , menus, commands
• Build options to omit connectors
• Full PCBA relayout, conformal coatings & other hardware changes
• Software utilities or Apps (IOS or Android) for RS-232 control

*Note: Customization is subject to quote - engineering charges and MOQ may apply.
