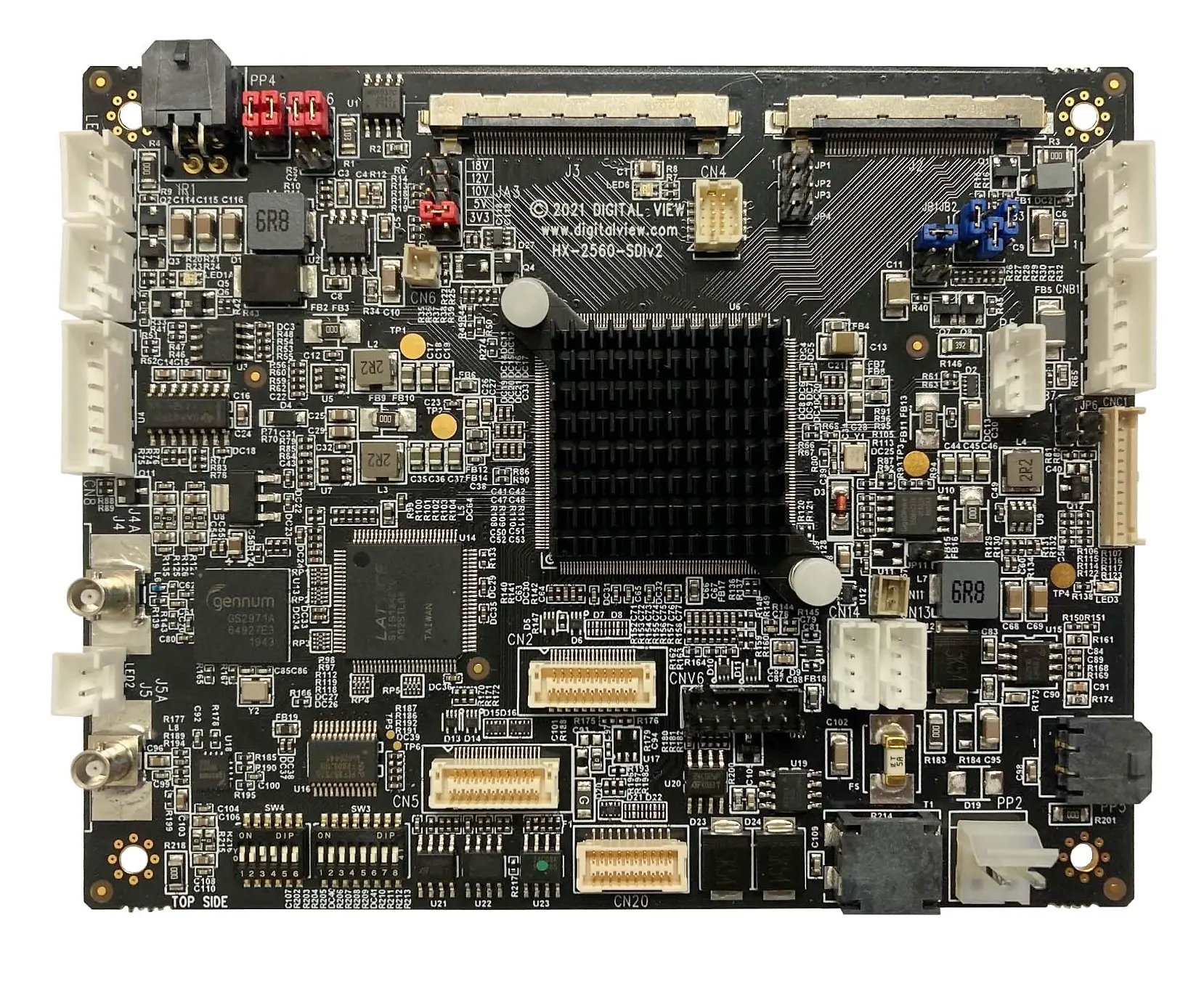

HX-2560-SDI  LCD Controller Board

The HX-2560-SDI is a compact, advanced LCD controller for video signals up to 2560x1600 and LCD panel resolutions up to 2560x1600 with LVDS panel connection. Header type connectors are provided for HDMI, Displayport, and VGA inputs together with micro-BNC connectors for 3G-SDI connection. The very extensive feature set combined with the suitability for harsher environments due to wider operating temperature range and a conformal coating ensures suitability for many display applications. The HX-2560-SDI is supported by a wide selection of panel connection cables and other accessories together with system development documentation including 3D drawings.

Specifications: HX-2560-SDI

LCD Panel Connectivity
  • Panel connection: LVDS (4 channel). 60Hz panels up to 2560x1600.
  • Panel resolution: 2560x1600, 1920x1920, 1920x1200 1920x1080 1680x1050 1600x1200 1600x900 1440x900 1366x768 1280x1024 1280x800 1280x768 1024x768 1024x600 800x600 800x480 640x480. Custom panel resolutions also available.
  • Colors: Up to 10-bit per color, ie 1.06 Billion colors.
  • Panel Power:Supports 3.3V, 5V, 10V, 12V, 18V
  • Power: +12/+24VDC ±5%,5W (controller only)
  • Backlight inverter/driver support: Analog or 12 bit PWM brightness control via serial port controller
  • Backlight power: DPMS Enable Pin (3.3V or 5V)

Input: HDMI 1.4 (x2)

(header)


  • 60Hz up to 2560x1600
  • 75Hz up to 1280x1024

Input: Displayport 1.2 (x1)

(header)


  • 60Hz up to 2560x1600
  • 75Hz up to 1280x1024

Input: VGA (x1)

(header)


  • 60Hz up to 1920x1200
  • 75Hz up to 1600x1200

Input: 3G-SDI

(micro-BNC)


  • 1080p60
  • 720p60
  • Supports SMPTE 292M, 259M-C, 424M, 425M (Level A)
Function Interface
  • On Screen Display (OSD) menu
  • Functions can be called by buttons or IR remote control.
  • Functions are also accessible via a Serial port (RS-232)
Functions
  • Auto configuration, Black level, Backlight brightness, Contrast, Clock, Phase, Color Temperature, Image position, Sharpness, Hue, Saturation, Gamma, Aspect ratio, Auto source seek, OSD timeout, OSD transparency, Select input source, Volume, Language, Image rotation, Picture-in-picture, Picture-by-picture, Programmable hotkeys.
  • Fast input port switching.
  • Onboard temperature sensor.
  • Support for options such as ambient light sensor, load factory defaults.
  • Image flip: Vertical and Horizontal
Function Options
  • Custom firmware version to suit specific application requirements.
Audio
  • Digital Audio SPDIF & Analog line-out.
Other
  • Board size: 127.0mm x 101.6mm (5" x 4")
  • Operating temperature: -40°C to 80°C1
  • Status indicators on board: Dual color LED
  • Plug & Play: DDC 1.2/b compatible
Reliability
  • MTBF in excess of 500,000 hours @ 25°C (calculated using Telcordia SR-332 procedure)
  • Warranty 3 years
