DT-1920-HDMI LCD Controller
- LCD panel resolution up to 1920x1200, 8-Bit, LVDS
- Input signal: HDMI 1.3, up to 1920x1080, 1080p
- Compact 91.4mm x 62.7mm x 11mm
- Multi-Panel support, dip switch select
- Auto edid, panel matched
- Light sensor support, 2 pin
- Temperature sensors support, onboard & 3 pin
- Audio line out
- Part number: 4177000xx-3

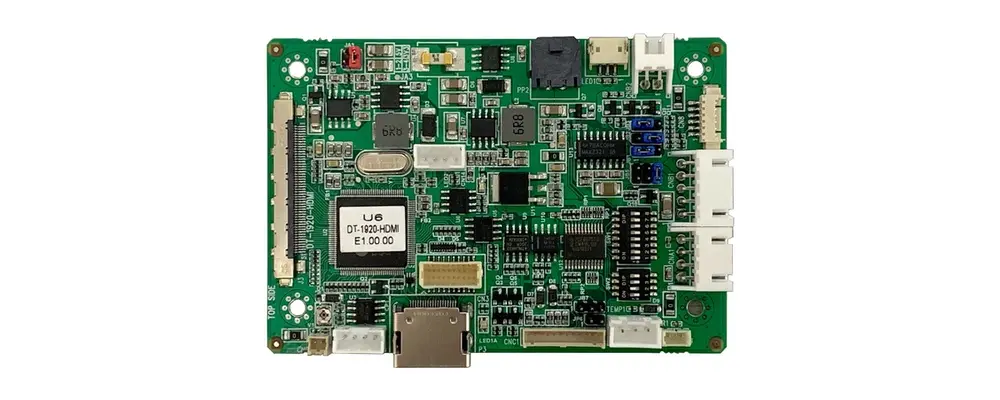

DT-1920-HDMI LCD Controller Board
The Digital View DT-1920 LCD controller board with single HDMI input and LVDS panel connection support for general commercial and industrial applications. Compact and highly reliable this controller board incorporates advanced features such as Digital View’s multi panel timing support, brightness & temperature sensors, auto-EDID setting and audio line-out.
The scalar incorporates a line buffer and provides low latency input to panel. The power circuitry uses ceramic capacitors for extended lifetime across all operating temperatures.
Specifications: DT-1920-HDMI
LCD Panel Connectivity
- Panel connection: LVDS (2 channel)
- Panel resolutions: Up to 1920x1200, includes all standard resolutions as well as custom resolutions
- Colors: Up to 8-bit per color
- Controller power: +12VDC ±5%, 2.5W
- Panel power: 3.3V, 5V, 12V
- Backlight inverter/driver support: PWM, DPMS Enable pin (5V or 3.3V)
Input: HDMI 1.3 (x1)
- 60Hz at up to 1920x1200
- 480p, 576p, 720p, 1080i, 1080p
Function Interface
- On Screen Display (OSD) menu
- Functions can be called by buttons or IR remote control.
- Functions are also accessible via a Serial port (RS-232)
Functions
- Basic: Black level brightness, Contrast, Sharpness, Color temperature, Gamma
- Other: OSD timeout, OSD position, OSD menu rotation, OSD transparency, OSD menu language.
- Select input source, Volume control, Load factory defaults.
Other
- Status indicators on board: Dual color LED
- Standby power consumption: ~1.1W
- Latency: ~13ms (1920x1080 panel, DV standard Leo Bodnar test)
- On-board temperature sensor (via RS-232)
- Ambient brightness sensor support
- Plug & Play: DDC 1.2/b compatible
Customization
(options*)
- Panel timing
- Video input timing support
- Custom EDID
- Splash screen logo, ie during start-up
- Build options to omit connectors
- Full PCBA relayout, conformal coatings & other hardware changes
- Software utilities or Apps (IOS or Android) for RS-232 control
Reliability
- MTBF in excess of 200,000 hours @ 25C (calculated using Telcordia SR-332 procedure)
- Warranty 3 years
Downloads: DT-1920-HDMI
Brochure (PDF)
Manual (PDF)
Revision Note (PDF)
2D Drawing (PDF)
2D Drawing (DWG)
3D Drawing (SLDPRT)
3D Drawing (STEP)
Application Notes
Guide to using RS-232 commands
Renaming video input ports on the menu
User defined gamma LUT
Firmware upgrade via programmer board
LCD Panel Connection Diagrams
Controller Solution Generator
Software Web Page
Link: Software web page
Includes applications for remote control, settings updates and more.
