ALR-1920 LCD Controller Board

  • LCD support: Up to 1920x1200, 8-Bit
  • Panel connectivity: LVDS
  • Inputs: HDMI 1.4, DP 1.1a, ARGB (VGA)
  • RS-232 control

  • Part number: 4172700xx-3.

EOL Notice: Please note that normal production of this model will cease with effect from May 1, 2020. For last time buy arrangements please contact your distributor.

See ALR-1920 HLR-1920 EOL notice for details of alternative models, for example the ALT-1920 has been developed as a compatible alternative.

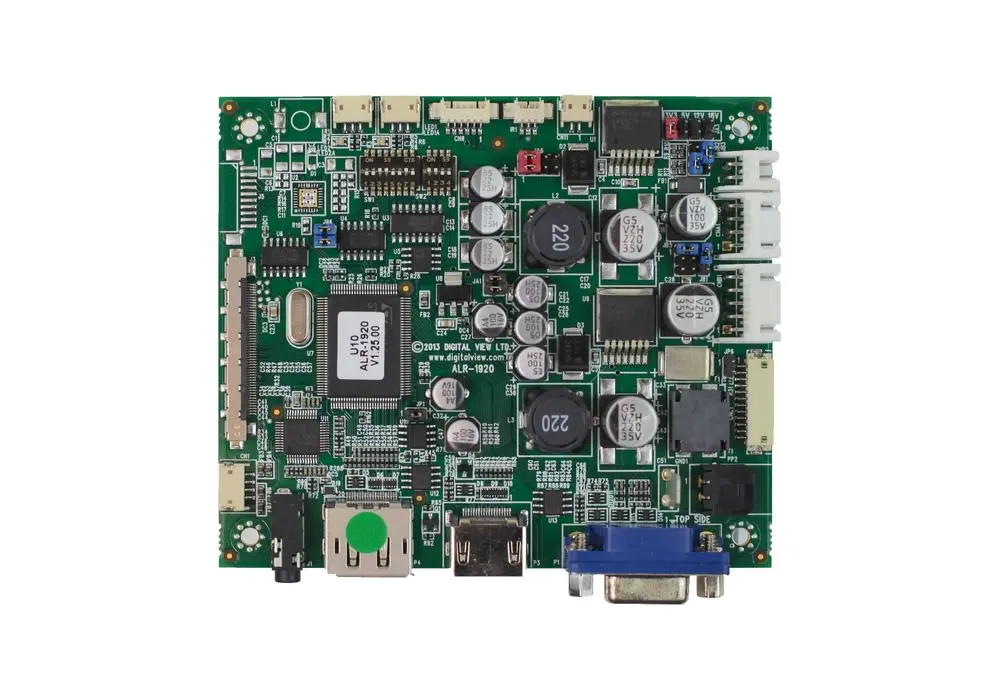

ALR-1920 LCD Controller Board

The ALR-1920 LCD controller combines three of the most popular input formats, HDMI, Analog RGB (VGA) and DisplayPort in a compact general purpose solution for LCD panels up to 1920x1200 resolution. One of the key features of this highly reliable controller is the low signal latency from input signal to panel output signal.

Specifications: ALR-1920

LCD Panel Connectivity
  • Panel connection:LVDS (2 channel) Panel resolutions:Up to 1920x1200, includes all standard resolutions as well as custom resolutions
  • Colors:Up to 8-bit per color
  • Panel power:3.3V, 5V, 12V, 18V
  • Backlight inverter/driver support: PWM, DPMS Enable pin (5V or 3.3V)
Input: HDMI 1.4 (x1)
  • 60Hz at WUXGA, UXGA
  • 75Hz at SXGA, WXGA, XGA, SVGA, VGA
  • 480p, 576p, 720p, 1080i, 1080p
Input: Displayport (x1)
  • 60Hz up to 1920x1200
  • 75Hz up to 1280x1024
Input: VGA (x1)
  • 60Hz at WUXGA
  • 75Hz at SXGA, WXGA, XGA, SVGA, VGA
  • With auto detect of Digital Separate Sync,
  • Sync-On-Green & Composite Sync.
Function Interface
  • On Screen Display (OSD) menu
  • Functions can be called by buttons or IR remote control.
  • Functions are also accessible via a Serial port (RS-232)
Functions
  • Basic: Brightness, Contrast, Sharpness, Clock, Phase, Color temperature, Image position, Gamma
  • Other: Auto picture setup, Auto RGB calibration, Auto source seek, OSD timeout, OSD position, OSD menu rotation, OSD transparency, Select input source, Volume control, Load factory defaults
Other
  • Controller power:+12V/+24VDC ±5%, 4W
  • Status indicators on board: Dual color or LED
  • Plug & Play: DDC 1.2/b compatible

Reliability


  • MTBF in excess of 100,000 hours @ 25⁰C (calculated using Telcordia SR-332 procedure)
  • Warranty 3 years

Downloads: ALR-1920

B​rochure (PDF)
Manual (PDF)
Revision Note (PDF)
2D Drawing (PDF)
2D Drawing (DWG)
3D Drawing (SLDPRT, STEP)
