HLT-1920 LCD Controller Board

  • Inputs: HDMI, DP, ARGB (VGA)
  • LCD support: Up to 1920x1200, 8-Bit
  • Panel connectivity: LVDS
  • RS-232 function control
  • Power, input: 12V/24V DC
  • Size: 107.44mm(4.23") x 91.57mm(3.61")
  • Mounting: 5 points, grounded
  • Operating temperature -40°C to +80°C1

  • Part number: 4176400xx-3

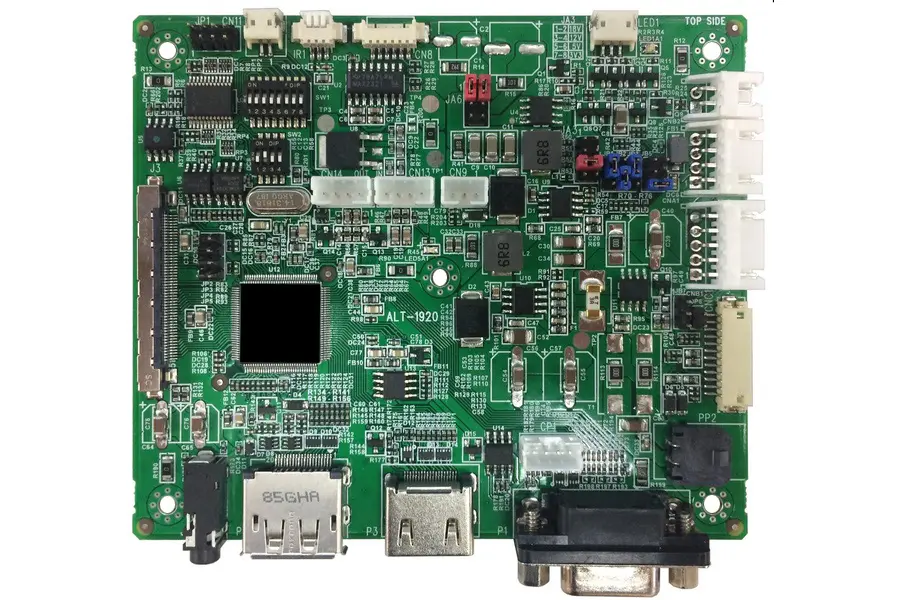

HLT-1920 LCD Controller Board

The HLT-1920 LCD controller is the harsher environment version of the ALT-1920. It combines three of the most popular video input formats, HDMI, Analog RGB (VGA) and DisplayPort in a compact general purpose solution for LCD panels up to 1920x1200 resolution. One of the key features of this compact highly reliable controller is the low signal latency from input signal to panel output signal. In addition the controller uses ceramic capacitors to improve reliability and lifetime at elevated temperatures.

Specifications: HLT-1920

LCD Panel Connectivity
  • Panel connection: LVDS (2 channel)
  • Panel resolutions: Up to 1920x1200. The range of panel resolutions includes all standard panel resolutions as well as custom LCD panel resolutions. For example custom cut panel resolutions can also be supported. The minimum panel resolution supported is 800x600.
  • Colors: Up to 8-bit per color
  • Panel power: 3.3V, 5V, 12V, 18V
  • Backlight inverter/driver support: PWM (8 bit), DPMS Enable pin (5V or 3.3V)
Input: HDMI 1.3 (x1)
  • 60Hz up to 1920x1200
  • 480p, 576p, 720p, 1080i, 1080p
Input: Displayport 1.2a (x1)
  • 60Hz up to 1920x1200
Input: VGA (x1)
  • 60Hz up to 1920x1200
  • With auto detect of Digital Separate Sync,
  • Sync-On-Green & Composite Sync.
Function Interface
  • On Screen Display (OSD) menu
  • Functions can be called by buttons or IR remote control.
  • Functions are also accessible via a Serial port (RS-232)
Functions
  • Black level, Contrast, Sharpness, Clock, Phase, Color temperature, Image position, Gamma, Auto picture setup, Auto RGB calibration, Auto source seek, OSD timeout, OSD position, OSD menu rotation, OSD transparency, Select input source, Volume control, Load factory defaults
Other
  • Controller power: +12V/+24VDC ±5%
  • Controller power consumption: ~2.5w (controller logic only, no panel or backlight driver)
  • Standby power consumption: 1.3W~1.5W
  • Status indicators on board: Dual color LED
  • Plug & Play: DDC 1.2/b compatible
  • Latency: ~13ms measured on HDMI with 1920x1080 panel
  • Conformal coating: HumiSeal IB73, acrylic, spray application
  • Ceramic capcitors
  • Operating temperature -40°C to +80°C1

Customization

(options*)


  • Panel timing
  • Video input timing support
  • Custom EDID
  • Splash screen logo, ie during start-up
  • Custom hotkeys , menus, commands
  • Build options to omit connectors
  • Full PCBA relayout, conformal coatings & other hardware changes
  • Software utilities or Apps (IOS or Android) for RS-232 control

Reliability


  • MTBF in excess of 200,000 hours @ 25C (calculated using Telcordia SR-332 procedure)
  • Warranty 3 years
