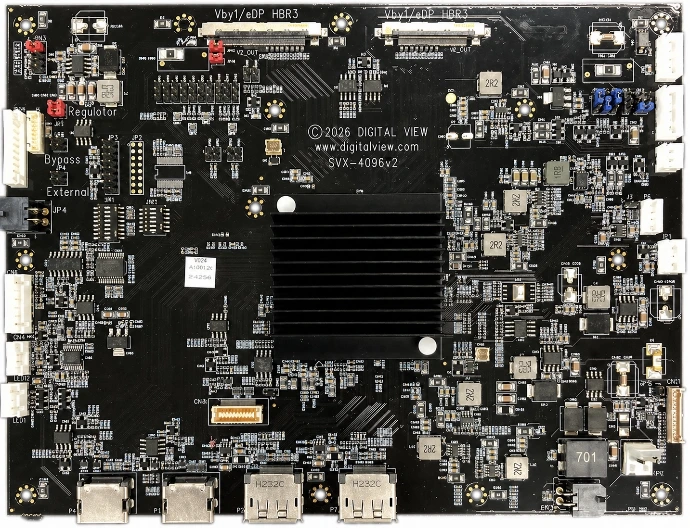

SVX-4096v2 LCD Controller Board

The SVX-4096v2 LCD controller board for HDMI and DisplayPort input, to V-by-One and eDP for LCD panels, including those from AUO, BOE, Innolux, LG Display, Samsung, Sharp, and others. It also provides image management, monitoring, and control features for the finished monitor or display system. The SVX-4096v2 is supported by a wide selection of panel connection cables and other accessories , together with system development documentation, 3D drawings, and engineering support for customization.

The extensive feature set ensures suitability for many commercial display applications such as digital signage and corporate AV. A full summary of Digital View LCD controllers can be seen here: LCD Controller Summary.

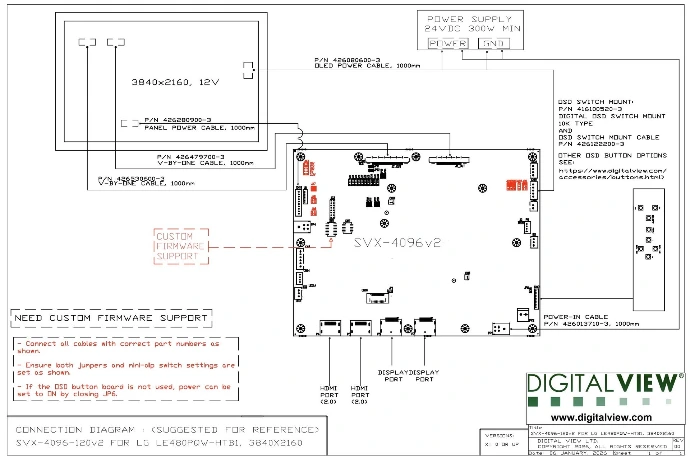

LCD Panel Connectivity

• Panel connection: V-by-One (16 lane), eDP (HBR3)
• Panel resolutions: Up to 4096x2160. The range of panel resolutions includes all standard panel resolutions as well as custom LCD panel resolutions. For example, custom-cut panel resolutions can also be supported.
• Colors: Up to 10-bit per color (ie 1.06 billion colors)
• Panel power: 3.3V, 5V, 10V, 12V, 18V
• Backlight inverter/driver support: PWM (8 bit), DPMS Enable pin (5V or 3.3V)

Input: HDMI 1.4 (x1)
(1xheader)

• 30Hz up to 4096x2160
• 60Hz up to 2560x1600
• 75Hz up to 1600x1200
• 480p, 576p, 720p, 1080p, 4k/30

Controls & Interface

• On-Screen Display (OSD) menu
• Functions can be called by buttons or an IR remote control.
• Functions are also accessible via a Serial port (RS-232).
• DDC/CI is supported on HDMI and DisplayPort
• Status indicators on board: dual-color LED
• Plug & Play: DDC 1.2/b compatible

Functions

• Basic: Backlight Brightness, Contrast, Color Temperature, Image positioning, Saturation, Hue, Sharpness, Black level
• Additional: System Information, Scalling to fill screen and fill to aspect ratio, Picture-in-Picture, 2 & 4 input Picture-by-Picture tiling (quad split), Programmable hot keys, Image scaling Up/Down scaling to fit input to panel resolution & aspect ratio, Image rotation
• Telemetry: Temperature, Light sensor, GPIO (via RS-232)

Audio

• Digital audio line out (from header) with OSD volume control

Power

• Input voltage: 12 V / 24 VDC ±5 %
• Power consumption: 10 W approx. (controller only, not including panel power)
• Power limit: 3 A total current
• Power protection: fuse fitted (non-resettable type)
• Reverse power-polarity protection fitted

Mechanical & Environmental

• Board dimensions: 203.2 mm × 154 mm (8″ × 6.06″)
• Operating temperature: 0°C to +60°C
• Storage temperature: −40°C to +70°C
• Operating humidity: 10 % to 90 % RH, non-condensing
• Storage humidity: 5 % to 95 % RH, non-condensing
• On-board battery: 3 years in storage without power; not rechargeable
• 2D and 3D drawings: see Downloads on this page

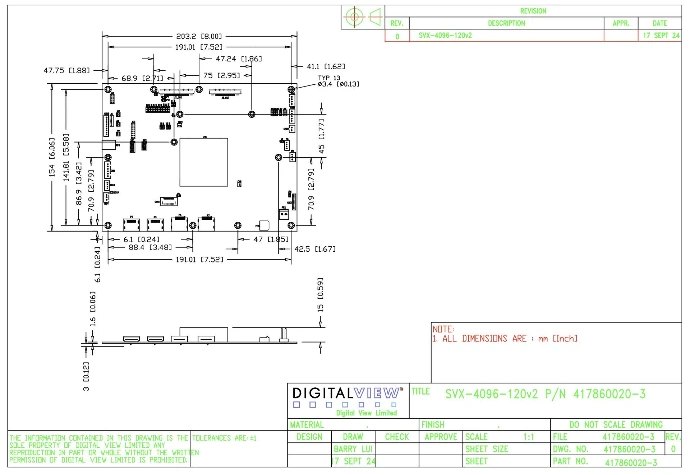

SVX-4096v2 dimensions, see downloads

Compliance & Lifecycle

• RoHS compliant
• REACH SVHC declared
• Conflict Minerals declared
• Statement of Volatility: available, see Downloads on this page
• MTBF: in excess of 100,000 hours @ 25°C (calculated using Telcordia SR-332 procedure)
• Warranty: 3 years

Customization
(options*)

• Panel timings
• Splash screen logo
• Custom hotkeys, menus, commands
• Conformal coating
• Build option to omit connectors
• Full PCBA relayout
• Custom EDID

*Note: Subject to quote - engineering charges and MOQ may apply.
