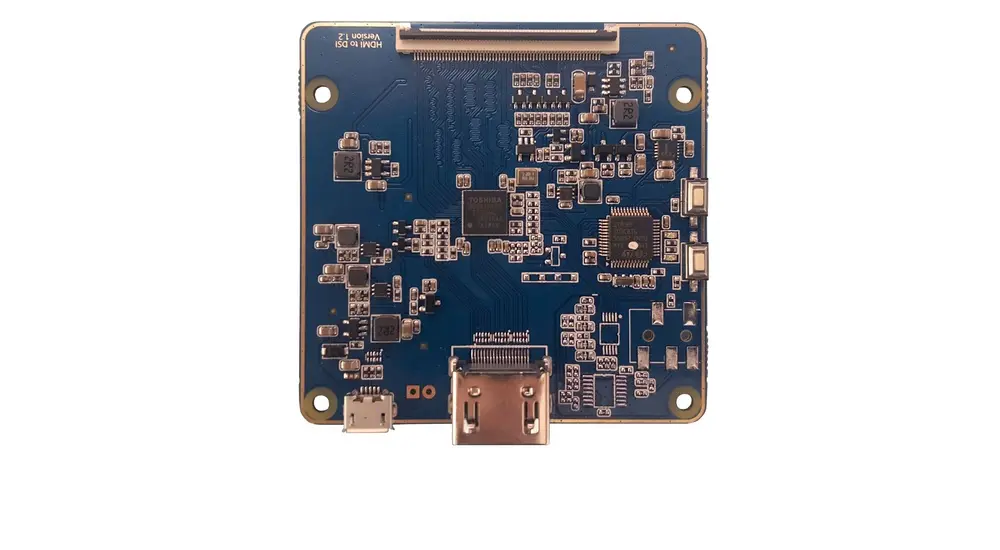

MIP-1000 LCD Controller Board

  • OLED / LCD support: up to 2160x3840, 8-Bit
  • Panel connectivity: MIPI DSI
  • Inputs: HDMI 1.4

  • Part number: 4160072xx-3

MIP-1000 LCD Controller Board

The MIP-1000 OLED / LCD controller board for use with MIPI interface OLED or LCD panels supports video signals up to 2160x3840 @30Hz and OLED / LCD panel resolutions up to 2160x3840. HDMI 1.4 input with a board mounted industry standard input connector for easy enclosure design. The MIP-1000 is supported by custom FPC type panel connection cables.

Specifications: MIP-1000

LCD Panel Connectivity
  • Panel connection: MIPI DSI
  • Panel resolutions: 400x400, 720x720, 800x800, 1080x1200, 1440x1440, 1440x1600, 1440x2560, 1080x1920, 1200x1920, 2560x1600, 2160x3840
  • Colors: Up to 8 bit per color
  • Panel Power: Support for 1.8V, 3.3V, 5.8V
  • Backlight brightness control: PWM
  • Panel connection is a semi-custom exercise that is likely to require a sample of the OLED or LCD panel for setup testing. It will very likely also require a custom FPC type LCD panel connection cable. For a list of OLED and LCD panels for which support has already been prepared see below.
Input: HDMI 1.4 (x1)
  • 30Hz up to 2160x3840
Functions
  • Brightness
Other
  • Input power: 5VDC
  • PCBA size: 65mm x 64mm
  • Operating temperature: 0°C to 60°C

Panels already supported


  • The following MIPI interface OLED and LCD panels already have firmware connectivity solutions. It may still require a custom FPC cable to meet specific project requirements:
  • AUO: H139BLN01.2, H381DLN01.2, H546DLB01.1, H546DLB01.2, H545QAN01.0, G080UAN01.0, G101UAN02.0
  • BOE: VS035ZSM-NH0
  • JDI: LT031MDZ4000, ACX450AKN-7, LT070ME05000, TFTMD089030
  • Sharp: LS029B3SX02, LS055T1SX01, LS059T1SX01, LS060T1SX01, LS055R1SC01, LS055R1SX03, LS055R1SX04, LS060R1SX01, LS060R1SX02, LQ079L1SX01, LQ079L1SX02, LQ079L1SX02F
  • Connection of an OLED or LCD panel will most likely require the loan of a sample of the panel for timing matching and testing.

Downloads: MIP-1000

B​rochure (PDF)
Manual (PDF)
2D Drawing (PDF)
2D Drawing (DWG)

LCD Panel Connection Diagrams

Controller Solution Generator

Statements & Declarations

Statement of volatility
Compliance & declarations page

Accessories: MIP-1000

OSD Buttons

Cables

Backlight
