DT-1920-HDMI-EDP LCD Controller

  • LCD support: Up to 1920x1200, 8-Bit
  • Panel connectivity: eDP
  • Inputs: HDMI 1.4 (connector options)
  • Compact size: 91.4mm x 91.4mm
  • Thin - only 4mm (micro HDMI version)
  • Ceramic capacitors

  • Part number: 4176600xx-3 (micro HDMI)
  • Part number: 4176602xx-3 (standard HDMI)

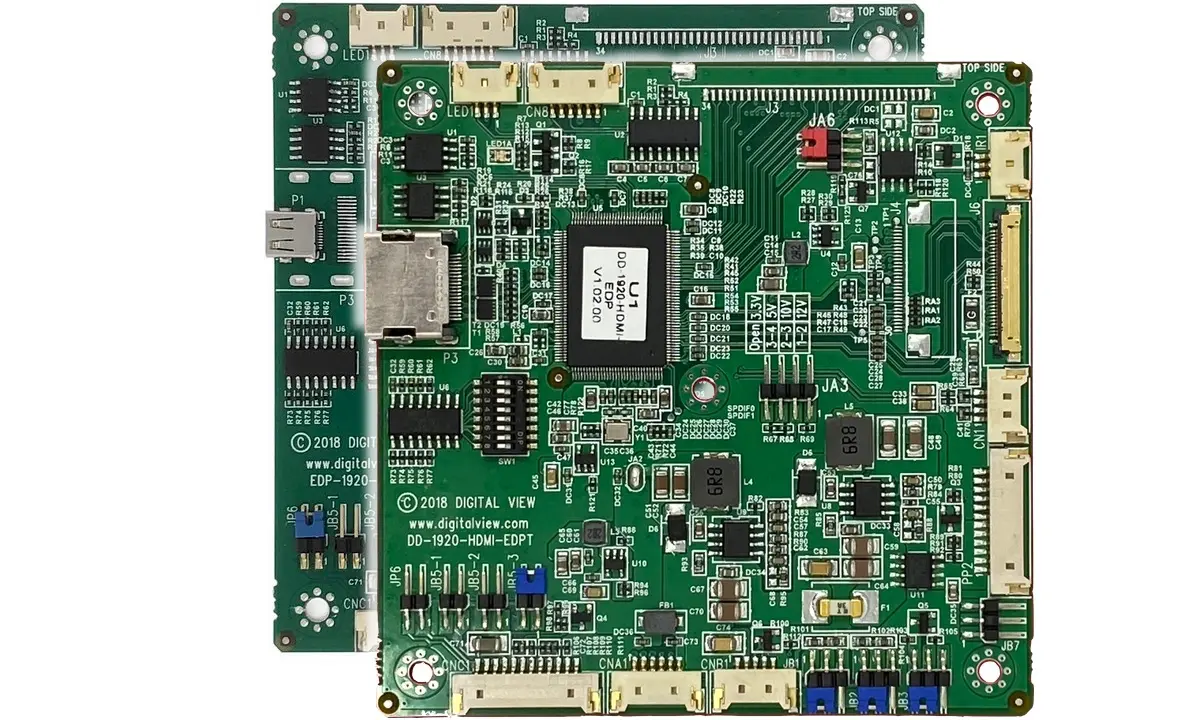

DT-1920-HDMI-EDP LCD Controller Board

The DT-1920-HDMI-EDP LCD controller is a compact HDMI input general purpose solution for eDP input LCD panels up to 1920x1200 resolution. The controller board is very low profile at only 4mm thick and provides low signal latency from input signal to panel output signal. Like all new Digital View LCD controller boards the design incorporates ceramic capacitors for increased lifetime over all temperature ranges compared to normal electrolytic capacitors.

Specifications: DT-1920-HDMI-EDP

LCD Panel Connectivity
  • Panel connection: eDP Panel resolutions:Up to 1920x1200, includes all standard resolutions as well as custom resolutions
  • Colors:Up to 8-bit per color
  • Controller power:+12V/+24VDC ±5%, 4W
  • Panel power:3.3V, 5V, 10V, 12V
  • Backlight inverter/driver support: PWM, DPMS Enable pin (5V or 3.3V)
Input: HDMI 1.4 (micro, with build option for full size)
  • 60Hz at WUXGA, UXGA
  • 75Hz at SXGA, WXGA, XGA, SVGA, VGA
  • 480p, 576p, 720p, 1080i, 1080p
Function Interface
  • On Screen Display (OSD) menu
  • Functions can be called by buttons or IR remote control.
  • Functions are also accessible via a Serial port (RS-232)
Functions
  • Basic: Brightness, Contrast, Sharpness, Clock, Phase, Color temperature, Image position, Gamma
  • Other: Auto picture setup, Auto RGB calibration, Auto source seek, OSD timeout, OSD position, OSD menu rotation, OSD transparency, Select input source, Volume control, Load factory defaults
Other
  • Status indicators on board: Dual color or LED
  • Plug & Play: DDC 1.2/b compatible

Customization

(options*)


  • Panel timing
  • Video input timing support
  • Custom EDID
  • Splash screen logo, ie during start-up
  • Build options to omit connectors
  • Full PCBA relayout, conformal coatings & other hardware changes
  • Software utilities or Apps (IOS or Android) for RS-232 control

Reliability


  • MTBF in excess of 100,000 hours @ 25oC (calculated using Telcordia SR-332 procedure)
  • Warranty 3 years

Downloads: ALT-1920

B​rochure (PDF)
Manual (PDF)
Revision Note (PDF)
2D Drawing (PDF)
2D Drawing (DWG)
3D Drawing (SLDPRT, STEP)

Application Notes

Guide to using RS-232 commands
Renaming video input ports on the menu
User defined gamma LUT
Firmware upgrade via programmer board

LCD Panel Connection Diagrams

Controller Solution Generator

Software Web Page

Link: Software web page
Includes applications for remote control, settings updates and more.

Statements & Declarations

Statement of volatility
Compliance & declarations page
