SVX-1920-PRO LCD Controller

  • LCD support: up to 1920x1200 @60Hz, 10-Bit
  • Panel connectivity: LVDS
  • Inputs: HDMI, DVI, Displayport, ARGB (VGA)
  • Programmable hot-keys
  • Picture-in-Picture (PiP), Picture-by-Picture
  • Image flip (orientation)
  • Ethernet (build option) & RS-232 control

  • Part number: 4177300xx-3

Harsh Environment version: HX-1920-PRO, designed for harsher environments, will be announced soon.

SVX-4096 LCD Controller Board

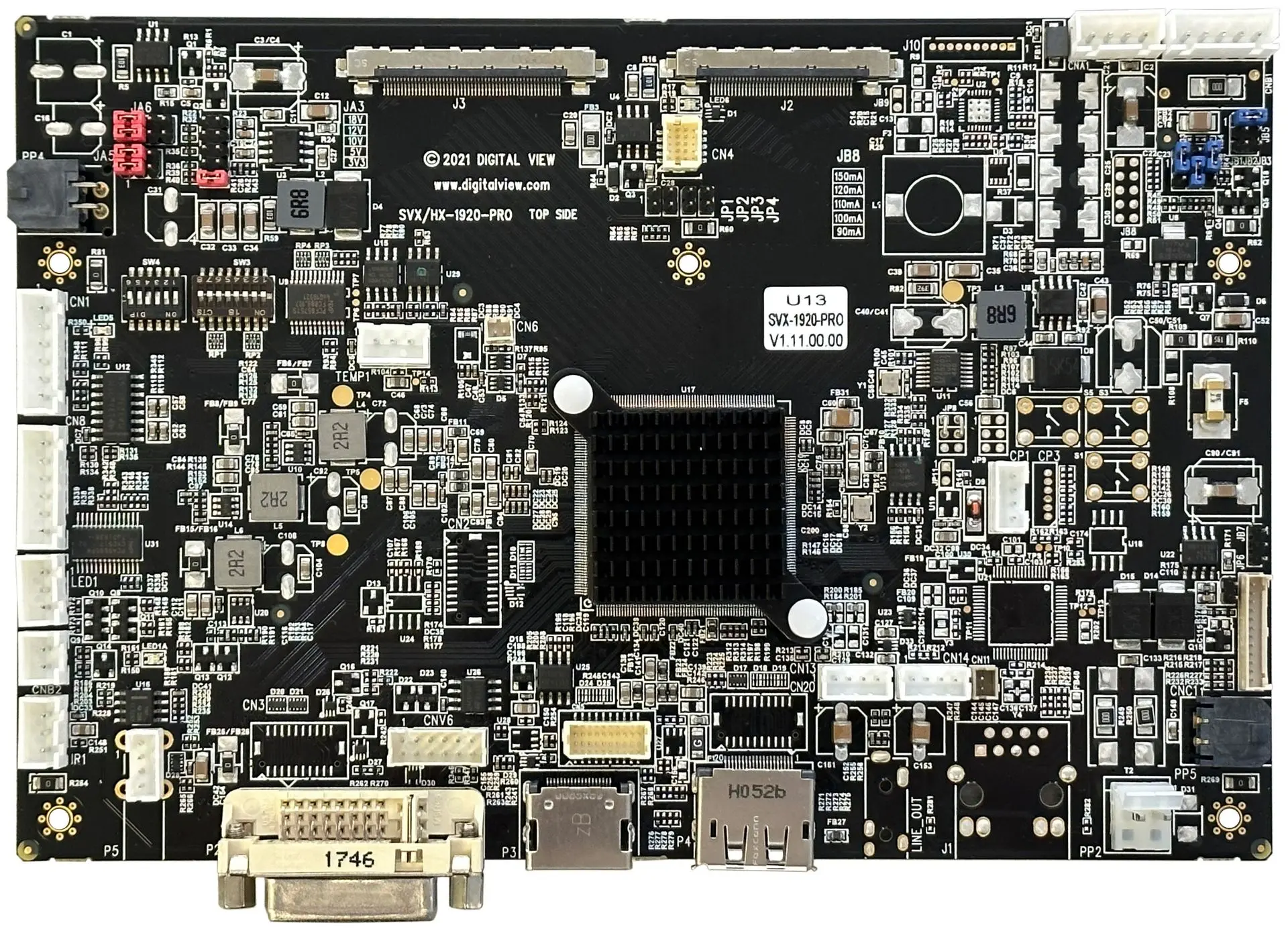

The SVX-1920-PRO is an advanced LCD controller board for video signals up to 1080p/60 and LCD panel resolutions up to 1920x1200. Digital and analog input with board mounted industry standard input connectors for easy enclosure design or a build option of internal headers.

The SVX-1920-PRO builds on the heritage of controller boards such as the SVX-1920-v3 and SVH-1920v2 with an extensive feature set to ensure suitability for many display applications. The SVX-1920-PRO incorporates Digital View's multi-panel timing support together with a wide selection of panel connection cables and other accessories together with system development documentation including 3D drawings.

Specifications: SVX-4096

LCD Panel Connectivity
  • Panel connection: LVDS (4 channel)
  • Panel resolutions - standard: 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1600x900, 1440x900, 1366x768, 1280x1024, 1280x800, 1280x768, 1024x768, 1024x600, 800x600, 800x480, 640x480.
  • Panel resolutions - custom: Square and banner types including custom cut panels.
  • Colors: Up to 10 bit per color (ie 1.06 billion colors).
  • Panel power: Supports 3.3V, 5V, 10V, 12V, 18V.
  • Backlight inverter/driver brightness support: Analog or PWM.
  • Backlight power: DPMS enables pin (3.3V or 5V)
Input: HDMI 1.4 (x1)
  • 60Hz up to 1920x1200 (up to 2560x1600 then downscaled to match panel)
  • 75Hz up to 1600x1200
  • Audio Signal: Pass through of digital audio to S/PDIF output and analog audio line-out.
  • Control: DDC/CI
Input: DVI-I (x1)
  • 60Hz up to 1920x1200
  • 75Hz up to 1600x1200
Input: Displayport (x1)
  • 60Hz up to 1920x1200 (up to 2560x1600 then downscaled to match panel)
  • 75Hz up to 1600x1200
Function Interface
  • On Screen Display (OSD) menu
  • Functions can be called by buttons or IR remote control.
  • Functions are also accessible via a Serial port (RS-232) & Ethernet (optional).
Functions
  • Basic: Auto configuration, Brightness, Black level, Contrast, Clock, Phase, Color, temperature, Image position, Saturation, Hue, Gamma, Sharpness.
  • Additional: System Information, Scaling to fill screen and fill to aspect ratio, OSD timeout, OSD transparency, Factory reset, Picture in Picture and Picture by Picture, Programmable hot keys. Support for options such as ambient light sensor, Graphics image rotation, Anti-image retention, Monochrome mode.

  • TBA: Image flip (Orientation), Freeze & zoom, Text overlay, Baud rate selection
Audio
  • Audio line out (from header) with OSD volume control (not amplified), SPDIF
Power
  • Connectors: Molex 43650-0200 compatible or Model 2-pin 0.156" pitch
  • Requirements: +12/24VDC, ±5%, 4W (controller power only, not panel or backlight)
  • Fuse: Non-resettable type.
Size
  • 179.1mm x 120.4mm - see drawing for details
Other
  • Status indicators on board: Dual color or LED
  • Plug & Play: DDC 1.2/b compatible

Build options

(subject to MOQ)


  • On-board LED backlight driver, supports 4 LED strings max 50V total LED backlight via J10 connector (same design and usage as implemented on SVX-4096)
  • USB type A connector instead of internal header, this is for firmware upgrade purposes only
  • Ethernet connection for RS-232 commands, 10Mbit, built-in web server for network configuration
  • Internal headers for DVI, HDMI and DisplayPort

Reliability


  • MTBF TBD
  • Warranty 3 years
