AI-100
Embedded AI & Compute
- M.2 for AI modules, Hailo, Deepx, Encharge, Brainchip...
- Mounting for Raspberry Pi CM5
- Real-time clock support
- Multiple IO
- Size 127mm x 101.6mm x 16mm
- Customization options: Contact us
- Part number: 4160280xx-3

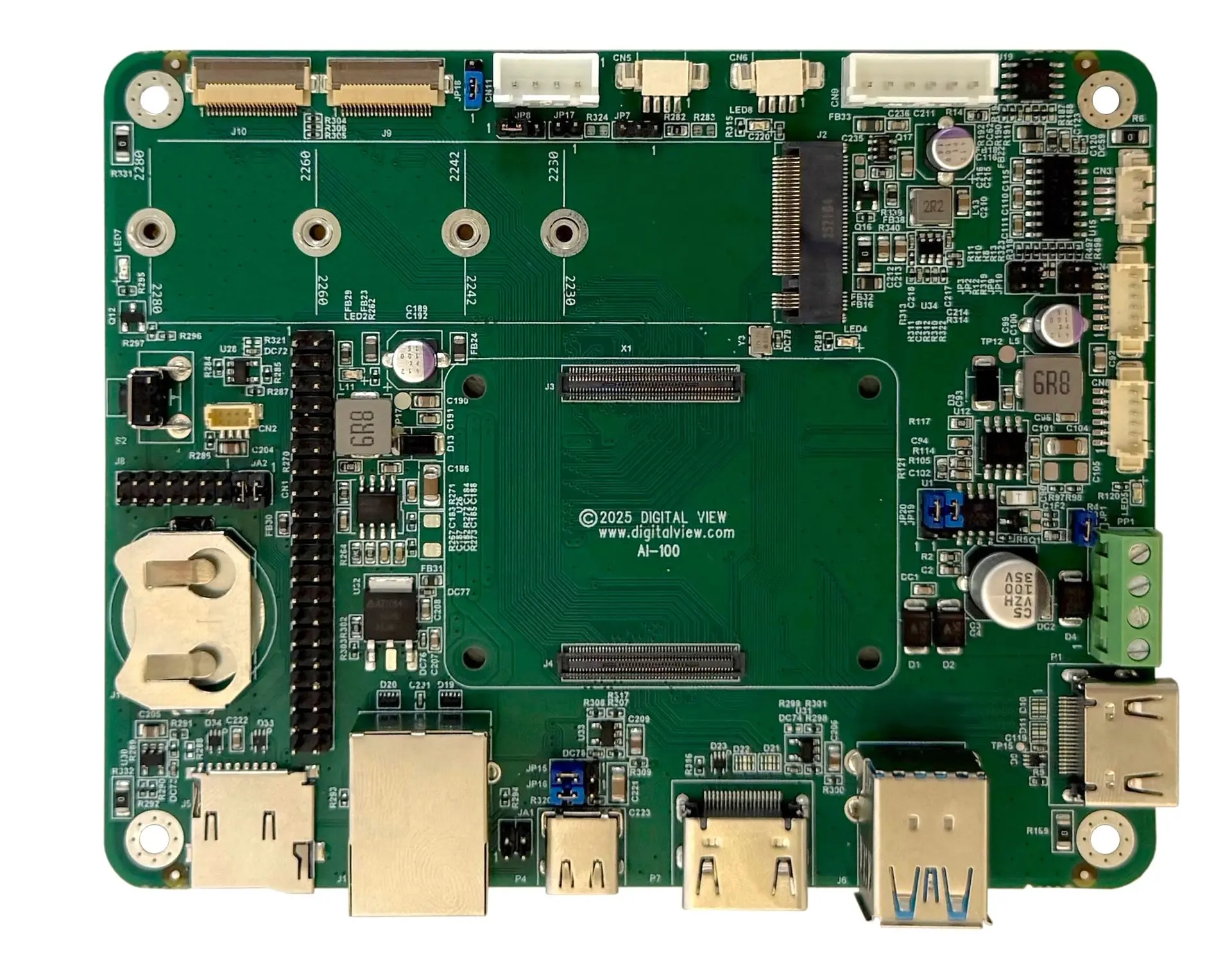

AI-100 AI Processor - AI Ready
The AI-100 provides an AI accelerator and a compute module. The board also includes a selection of IO pins for sensors and other data input as well as two CIS ports for camera input. Use this as a development board and for production, or custom optimization.
AI development kit - Coming Soon
Specifications: AI-100
AI Accelerators
- PCIe M.2 connector, max power 13W
- Hailo modules: 10H (40 TOPS), 8 (26 TOPS), 8L (13 TOPS).
- DeepX module: DX-M1 (25 TOPS)
- Optimized for computer vision, object detection, and edge AI applications.
Compute
- The Raspberry Pi CM5 offers a familiar yet powerful industrial grade processing environment, making it ideal for applications requiring Linux-based computing, AI, and industrial automation.
- High-performance Arm CPU, suitable for embedded applications.
- Dual CSI camera support for computer vision applications. These can be used with adaptors such as HDMI to CSI to support HDMI sources.
- PCIe 3.0 interface for high-speed peripheral connectivity.
- Direct HDMI output from CM5 for independent video output
I/O Interfaces
- SPI, I2C, UART, GPIO for peripheral expansion.
- RS232 support for legacy device compatibility.
Network & Storage
- Gigabit Ethernet (CM5 LAN support) for high-speed networking.
- USB 3.0 x2 for peripherals, external storage, or high-speed data transfer.
- Micro-SD Card support for local storage.
Other
- Status indicators on board: Dual color or LED
- Onboard temperature sensor
- Plug & Play: DDC 1.2/b compatible
- Latency: 12ms
Size
- 127mm x 101.6mm x 16mm (max)
- See the Download section on this page for technical drawings
Reliability
- MTBF in excess of 500,000 hours @ 25⁰C (calculated using Telcordia SR-332 procedure)
- Warranty 3 years
Customization
(options*)
- Build options to omit connectors
- Full PCBA relayout, conformal coatings & other hardware changes
- Software utilities or Apps (IOS or Android) for RS-232 control
*Note: Customization is subject to quote - engineering charges and MOQ may apply.
Downloads AI-100
Brochure (PDF)
Manual (PDF)
Revision Note (PDF)
2D Drawing (PDF)
2D Drawing (DWG)
3D Drawing (SLDPRT, STEP)
Application Notes
We will post blogs with links to applications or resources on the www.displayedge.ai website.
Software Web Page
Link: Software web page
Includes applications for remote control, settings updates and more.
Statements & Declarations
Statement of volatility
Compliance & declarations page
Resources

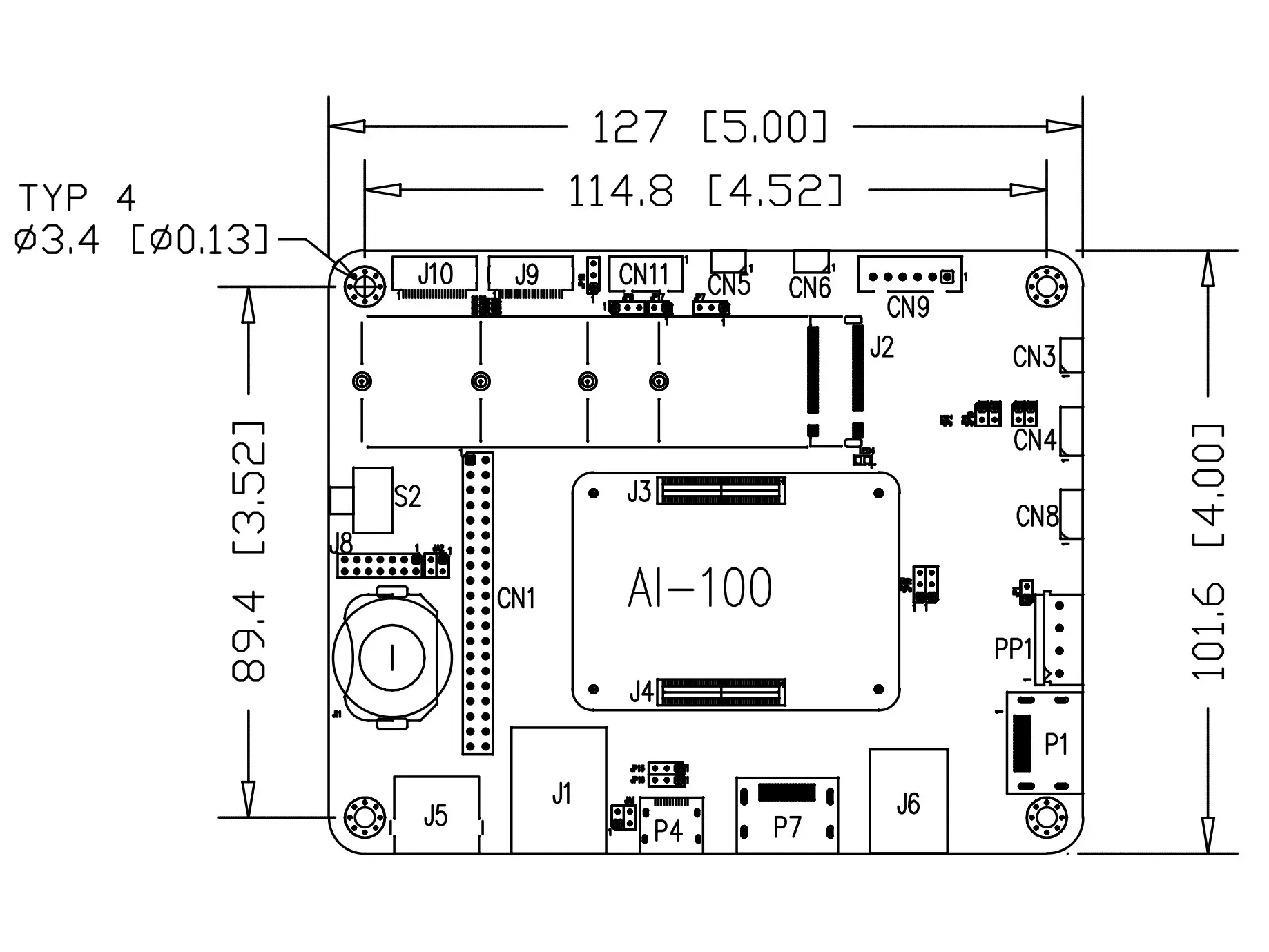

AI-100 diagram with dimensions

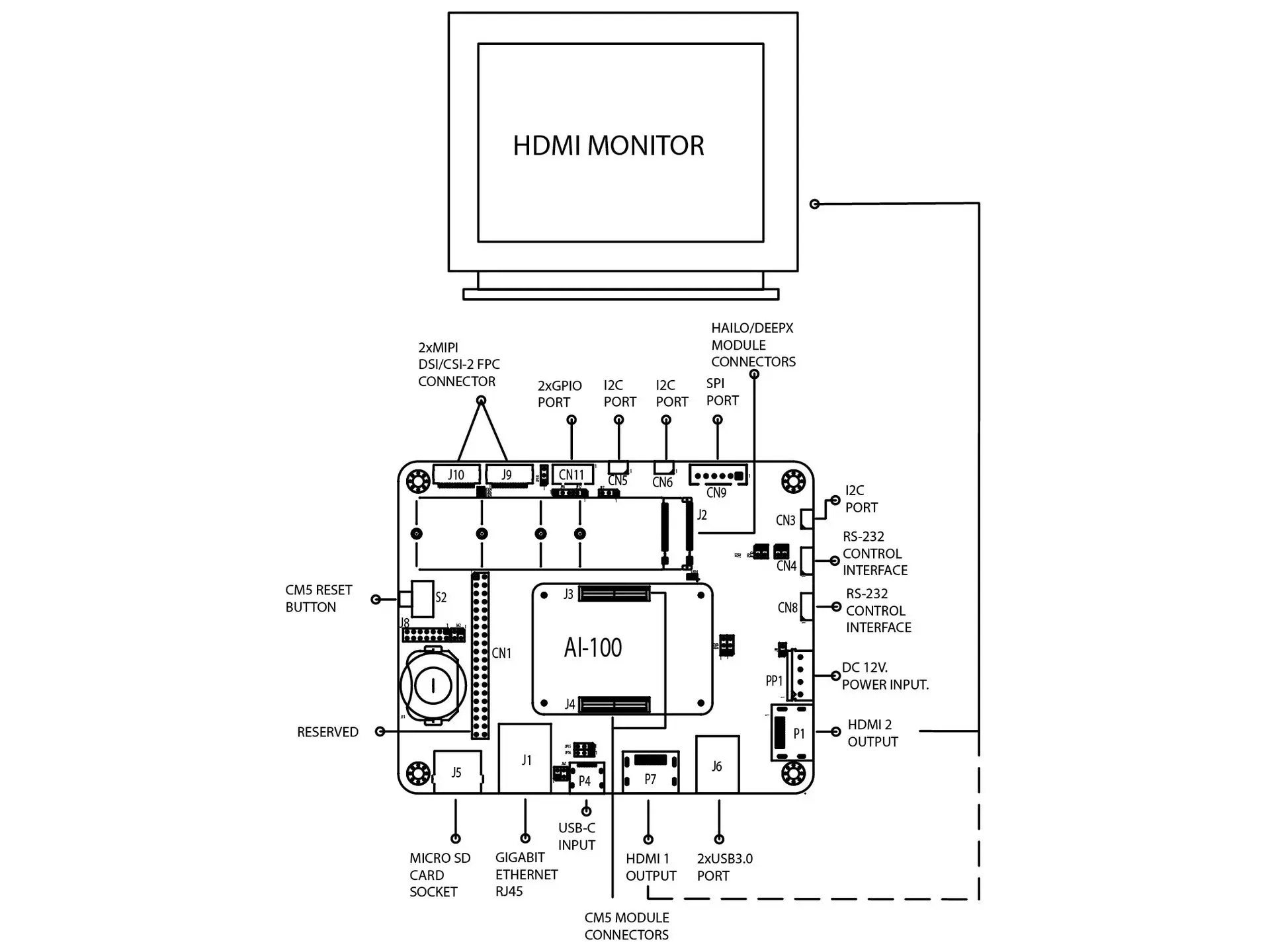

AI-100 connectors

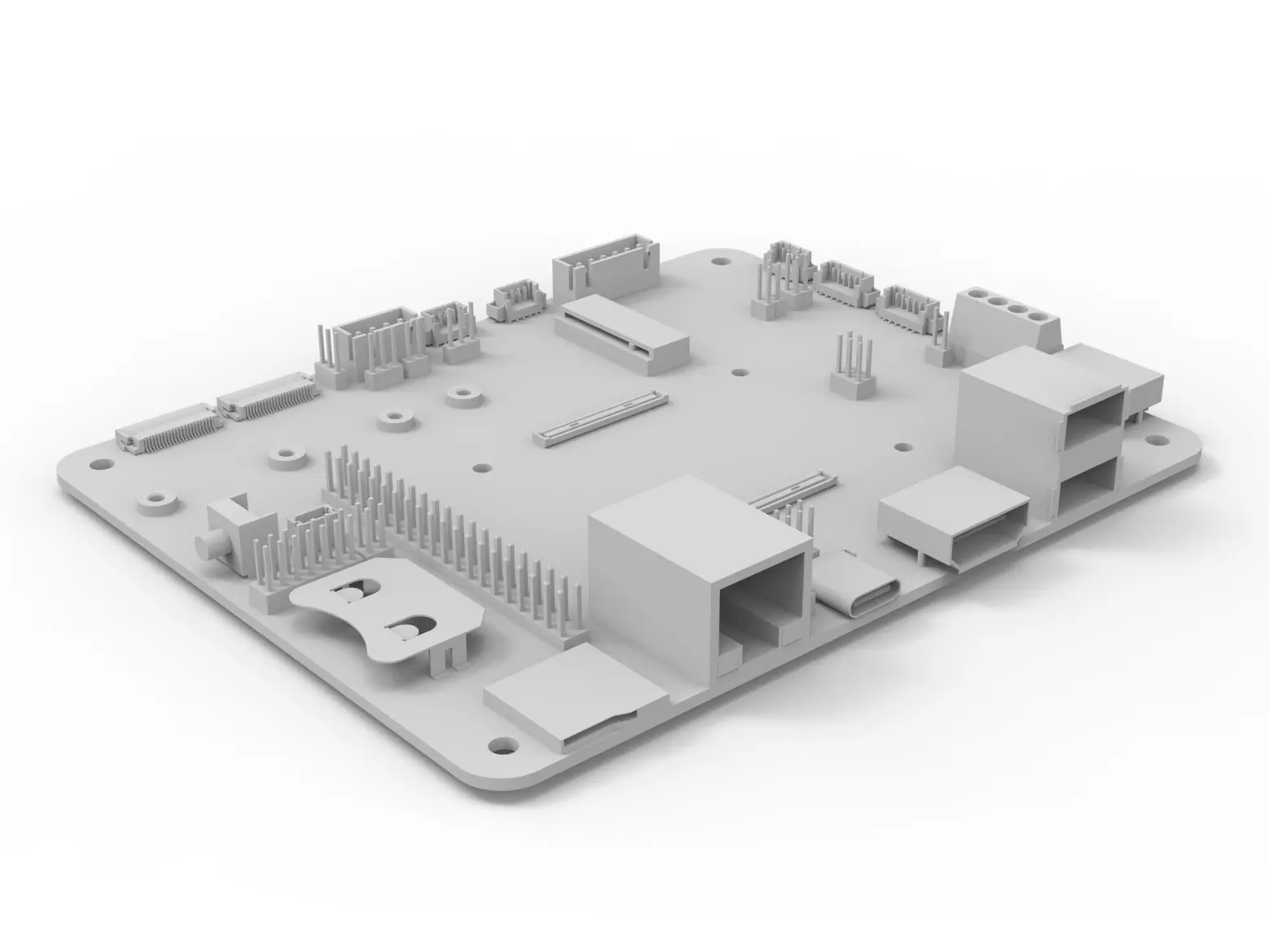

AI-100 3D image from STEP file
