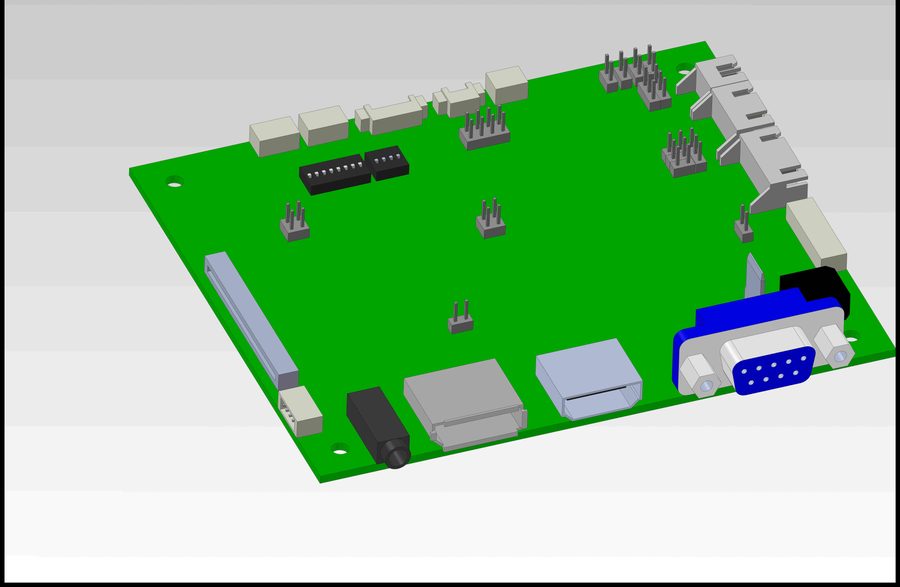

3D model render of the Digital View HLR-1920 LCD controller board, top view showing connector positions

3D model render from the HLR-1920 CAD file. Not a photograph of the assembled board.

HLR-1920 LCD Controller Board

  • Type: harsh-environment controller
  • Part number: 4172701XX-3
  • Availability: End of life — discontinued 1 May 2020
  • Replacement: HLT-1920 (4176401XX-3)

End of Life Notice

END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

HLR-1920

The HLR-1920 was the harsh-environment member of the ALR-1920 family. It was discontinued on 1 May 2020, together with the ALR-1920, the ALR-1920-SDI and the ALR-1920-120, because the main component chip reached end of life.

The replacement is the HLT-1920 — a version of the ALT-1920 with enhanced components and conformal coating for harsher environments. It is in production now.

The four part numbers withdrawn in that notice were:

  • 4172700XX-3 — CONTROLLER, ALR-1920, RoHS
  • 4172701XX-3 — HLR-1920 CONTROLLER, HARSH ENVIRONMENT
  • 4172800XX-3 — CONTROLLER, ALR-1920-SDI, RoHS
  • 4173100XX-3 — CONTROLLER, ALR-1920-120, 120Hz, RoHS

Specifications

Digital View does not publish a manual or a 2D drawing for the HLR-1920. For the specification of the family it belongs to, see the ALR-1920 page. For a board in production, see the HLT-1920.

If you are maintaining an installed system and need HLR-1920 documentation, contact us and say which board you have.

Downloads

3D Drawing (ZIP — IGES and SolidWorks part, with rendered views)
End of Life Notice (PDF — covers the ALR-1920 family)
