What inputs does the ALC-1920 controller support?

HDMI 1.3, DisplayPort 1.2a, and USB-C—each capable of up to 1920×1200 at 60 Hz.

What display resolutions and panel types does it work with?

Standard and custom LCD panel resolutions from 800×600 up to 1920×1200 with LVDS connectivity and up to 8-bit color.

Yes. Touchscreen pass-through is supported, and functions can be controlled via RS-232 or OSD buttons.

107.44 mm (4.23") × 91.57 mm (3.61").

HDMI 1.3, DisplayPort 1.2a, and USB-C—each capable of up to 1920×1200 at 60 Hz.

Standard and custom LCD panel resolutions from 800×600 up to 1920×1200 with LVDS connectivity and up to 8-bit color.

Yes. Touchscreen pass-through is supported, and functions can be controlled via RS-232 or OSD buttons.

107.44 mm (4.23") × 91.57 mm (3.61").

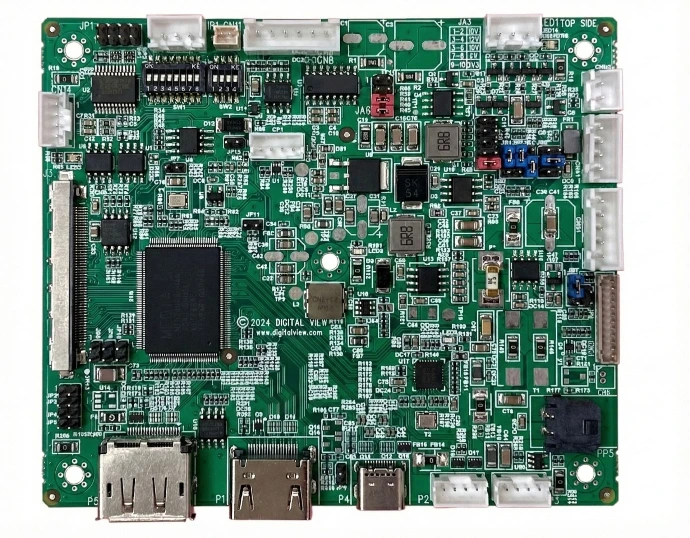

Name: ALC-1920 LCD Controller Board
Brand: Digital View

To select the right controller for your display system:
- Speak with our engineering team
- Request a controller selection review
- Provide your panel specifications for compatibility confirmation

Digital View supports OEMs, integrators, and engineering teams throughout the entire product lifecycle—from concept through production.
