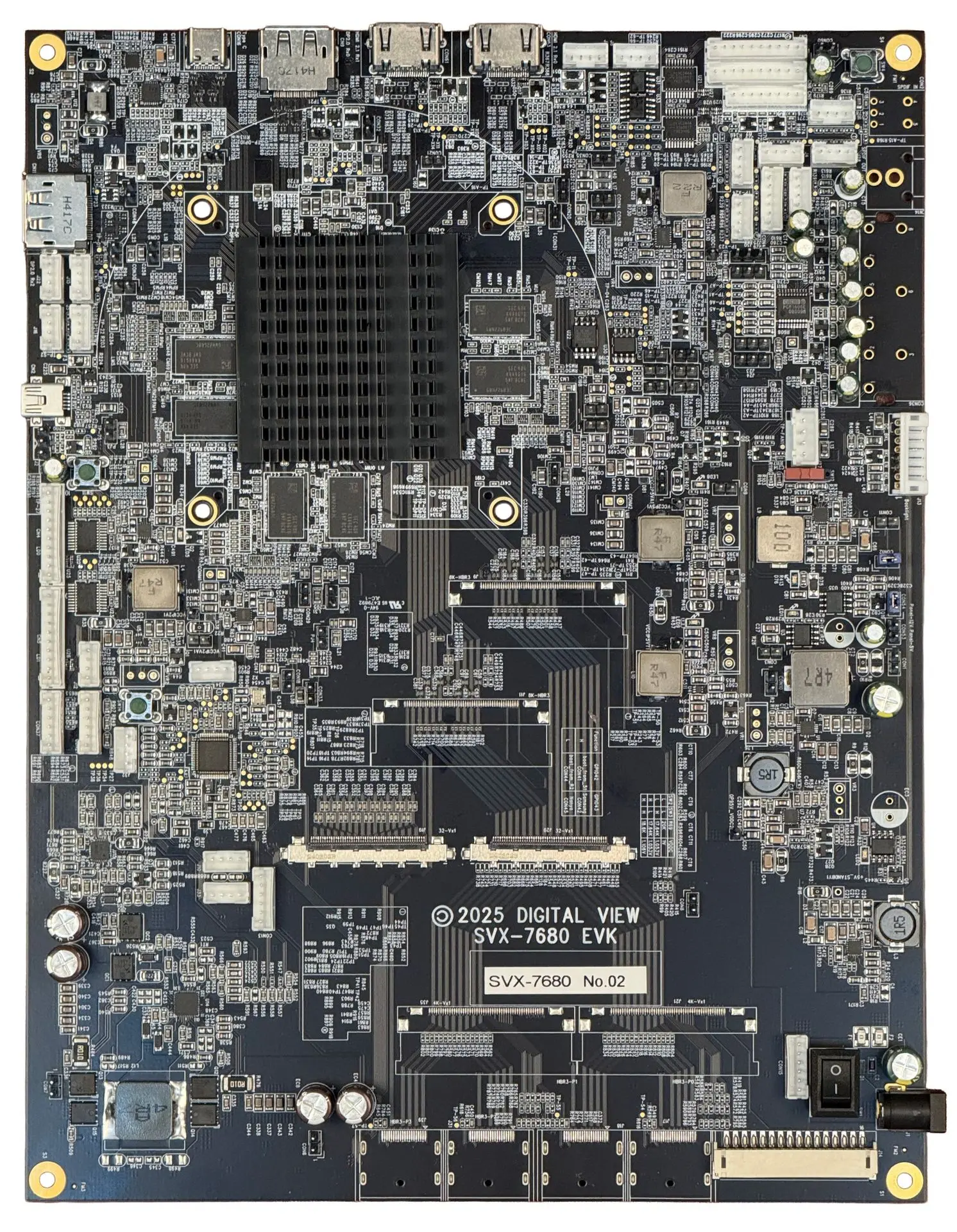

SVX-7680 LCD Controller Board

•  LCD panels up to 7680x4320
•  Panel connectivity: V-by-One
•  Video inputs: HDMI, Displayport
•  RS-232 for controls & functions
•  Programmable hot-keys
•  Picture-in-Picture (PiP), Picture-by-Picture
•  Customization: Contact us

•  Part number: 4179100xx-5

SVX-7680 LCD Controller Board

The SVX-7680 LCD controller board is an interface board converting video signals such as HDMI, Displayport, DVI to the signals required by compatible LCD panels such as from AUO, BOE, Innolux, LG Display, Samsung, Sharp, and others. The SVX-7680 is supported by panel connection cables and other accessories , together with system development documentation, 3D drawings, and engineering support for customization.

The SVX-7680 is the first of our 8K resolution controller boards. Its feature set ensures suitability for many commercial display applications, such as digital signage and corporate AV. A full summary of Digital View LCD controllers can be seen here : LCD Controller Summary.

Specifications: SVX-7680

LCD Panel Connectivity
  • Panel connection: 32-lane V-by-One @3Gbos
  • Panel resolutions: Up to 7680x4320. The range of panel resolutions includes all standard panel resolutions as well as custom LCD panel resolutions. For example custom cut panel resolutions can also be supported. The minimum panel resolution supported is 800x600.
  • Colors: Up to 12-bit per color
  • Panel power: 3.3V, 5V, 10V, 12V, 18V
  • Backlight inverter/driver support: PWM (8 bit), DPMS Enable pin (5V or 3.3V)
Input: HDMI 2.1 (x2)
  • 60Hz up to 7680x4320
  • 480p, 576p, 720p, 1080p, 4k/30
Input: Displayport 2.0
(x2)
  • 60Hz up to 7680x4320
  • 480p, 576p, 720p, 1080p, 4k/30
Function Interface
  • On Screen Display (OSD) menu
  • Functions can be called by buttons or IR remote control.
  • Functions are also accessible via a Serial port (RS-232)
Functions
  • Basic: Brightness, Contrast, Color Temperature, Image positioning, Saturation, Hue, Sharpness
  • Additional: System Information, Scalling to fill screen and fill to aspect ratio, Picture-in-Picture, 2 & 4 input Picture-by-Picture tiling (quad split), Programmable hot keys, Image scaling Up/Down scaling to fit input to panel resolution & aspect ratio
  • Telemetry: Temperature, fans, brightness, GPIO (via RS-232)
Audio
  • Digital audio line out (from header) with OSD volume control
Other
  • Status indicators on board: Dual color or LED
  • Plug & Play: DDC 1.3 compatible
  • Conformal coating: HumiSeal IB73, acrylic, spray application
Reliability
  • MTBF TBA
  • Warranty 3 years

Downloads: SVX-7680

B​rochure (PDF)
Manual (PDF)
Revision Note (PDF)
2D Drawing (PDF)
2D Drawing (DWG)
3D Drawing (SLDPRT, STEP)

Application Notes

Guide to using RS-232 commands

LCD Panel Connection Diagrams

Controller Solution Generator

Software Web Page

Link: Software web page
Includes applications for remote control, settings updates and more.
