SVX-4096-120v2

LCD Controller Board

  • LCD panels up to 3840x2160, 4096x2160
  • 120Hz video input & panel refresh rate
  • Panel connectivity: V-by-One, LVDS, eDP
  • Video inputs: HDMI, Displayport, DVI-I
  • RS-232 & Ethernet* for controls & functions
  • Programmable hot-keys
  • Picture-in-Picture (PiP), Picture-by-Picture
  • Customization: Contact us

•  Part number: 4178600xx-3

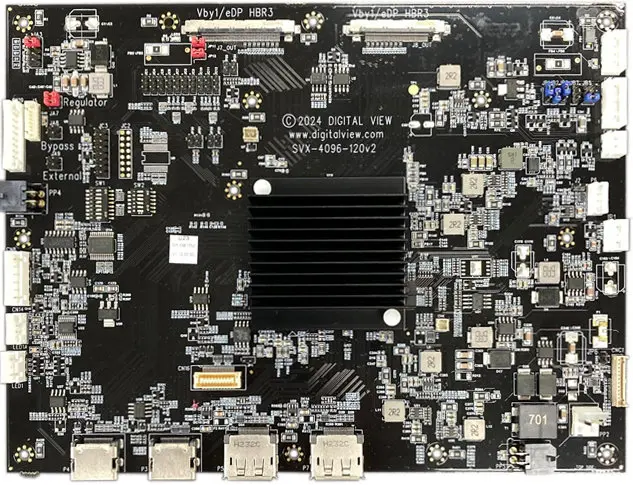

SVX-4096-120v2  LCD Controller Board

The SVX-4096-120v2 LCD controller board is an interface board converting video signals such as HDMI, Displayport, DVI to the signals required by compatible LCD panels such as from AUO, BOE, Innolux, LG Display, Samsung, Sharp, and others. It also provides image management functions as well as monitoring and control features for the finished monitor or display system. The SVX-4096-120v2 is supported by a wide selection of panel connection cables and other accessories together with system development documentation, 3D drawings, and engineering support for customization.

The extensive feature set ensures suitability for many commercial display applications such as digital signage and corporate AV. A full summary of Digital View LCD controllers can be seen here LCD Controller Summary.

Specifications: SVX-4096-120v2

LCD Panel Connectivity
  • Panel connection: V-by-One, eDP
  • Panel resolutions: Up to 1920x1200. The range of panel resolutions includes all standard panel resolutions as well as custom LCD panel resolutions. For example custom cut panel resolutions can also be supported. The minimum panel resolution supported is 800x600.
  • Colors: Up to 8-bit per color
  • Panel power: 3.3V, 5V, 12V, 18V
  • Backlight inverter/driver support: PWM (8 bit), DPMS Enable pin (5V or 3.3V)
Input: HDMI 2.0 (x1)
  • 60Hz up to 4096x2160
  • 75Hz up to 1280x1024
  • 480p, 576p, 720p, 1080p, 4k/30
Input: HDMI 1.4 (x2)
  • 30Hz up to 4096x2160
  • 60Hz up to 2560x1600
  • 75Hz up to 1600x1200
  • 480p, 576p, 720p, 1080p, 4k/30
Input: Displayport 1.2 (x1)
  • 60Hz up to 4096x2160
  • 75Hz up to 1600x1200
  • 480p, 576p, 720p, 1080p, 4k/30
Function Interface
  • On Screen Display (OSD) menu
  • Functions can be called by buttons or IR remote control.
  • Functions are also accessible via a Serial port (RS-232) & Ethernet.
Functions
  • Basic: Brightness, Contrast, Color Temperature, Image positioning, Saturation, Hue, Sharpness
  • Additional: System Information, Scalling to fill screen and fill to aspect ratio, Picture-in-Picture, 2 & 4 input Picture-by-Picture tiling (quad split), Programmable hot keys, Image scaling Up/Down scaling to fit input to panel resolution & aspect ratio
  • Telemetry: Temperature, fans, brightness, GPIO (via RS-232 & Ethernet command ports)
Audio
  • Digital audio line out (from header) with OSD volume control
Other
  • Status indicators on board: Dual color or LED
  • Plug & Play: DDC 1.2/b compatible
  • Conformal coating: HumiSeal IB73, acrylic, spray application
Reliability
  • MTBF in excess of 100,000 hours @ 25°C (calculated using Telcordia SR-332 procedure)
  • Warranty 3 years

Downloads: SVX-4096-120v2

B​rochure (PDF)
Manual (PDF)
Revision Note (PDF)
2D Drawing (PDF)
2D Drawing (DWG)
3D Drawing (SLDPRT, STEP)

Application Notes

Guide to using RS-232 commands
Renaming video input ports on the menu
User defined gamma LUT
Firmware upgrade via programmer board

LCD Panel Connection Diagrams

Controller Solution Generator

Software Web Page

Link: Software web page
Includes applications for remote control, settings updates and more.

Statements & Declarations

Statement of volatility
Compliance & declarations page
