HED-1920-HDMI LCD Controller

10+ year lifecycle, designed for harsh environments
USA assembly option

LCD panel resolution up to 1920x1080, 10-Bit, LVDS
Input signal: HDMI 1.3, up to 1920x1080, 1080p
Operating temperature: -40C to +85C
Auto edid, panel matched
Light sensor support, 2 pin
Temperature sensors support, onboard & 3 pin
Audio line out
Part number: TBA
Availability: In development

placeholder image

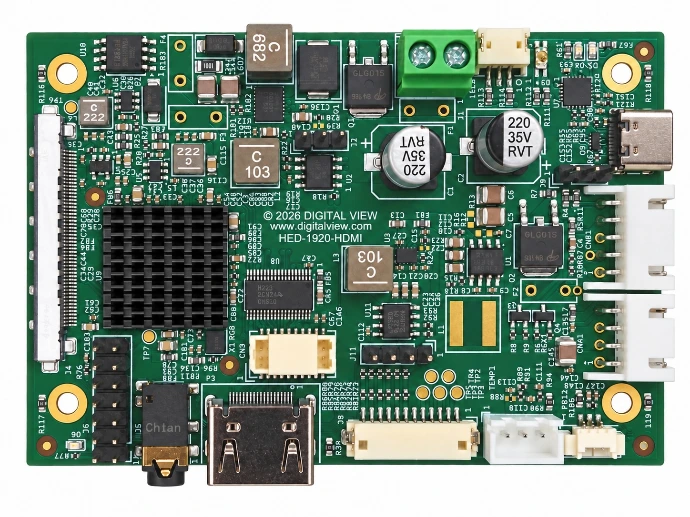

HED-1920-HDMI LCD Controller Board

A long-lifecycle, harsh-environment version of the proven DT-1920-HDMI: a single-board HDMI-to-LVDS controller engineered from the ground up for demanding industrial, medical, and infrastructure programs, wider power input, stronger protection, smarter thermal management, field-programmable panel support, and a fail-safe service model designed around product life cycles of ten years and beyond.

Specifications: HED-1920-HDMI

LCD Panel Connectivity

Panel connection: LVDS (2 channel)
Panel resolutions: Up to 1920x1080, includes all standard resolutions as well as custom resolutions
Colors: Up to 10-bit per color
Controller power: +12/24VDC (range +9~36VDC), 2.5W
Panel power: 3.3V, 5V, 12V
Backlight inverter/driver support: PWM, DPMS Enable pin (5V or 3.3V)

Input: HDMI 1.3 (x1)

60Hz at up to 1920x1080
480p, 576p, 720p, 1080i, 1080p

Controls

On-Screen Display (OSD) menu
Functions can be called by buttons or an IR remote control.
Functions are also accessible via a Serial port (RS-232)

Functions

Basic: Black level brightness, Contrast, Sharpness, Color temperature, Gamma
Other: OSD timeout, OSD position, OSD menu rotation, OSD transparency, OSD menu language.
Select input source, Volume control, Load factory defaults.

Other

Operating temperature: -40C to +85C
Status indicators on board: Dual color LED
Standby power consumption: ~1.1W
Latency: TBA
On-board temperature sensor (via RS-232)
Ambient brightness sensor support
Plug & Play: DDC 1.2/b compatible
TAA compliant as standard, USA build option

Customization
(options*)

Panel timing
Video input timing support
Custom EDID
Splash screen logo, ie during start-up
Build options to omit connectors
Full PCBA relayout, conformal coatings & other hardware changes
Software utilities or Apps (IOS or Android) for RS-232 control

Reliability

MTBF - TBA
Warranty 3 years

Pending

Protection — resettable input fuse, reverse-polarity protection, surge/load-dump clamping, and independently fused backlight and panel branches (a shorted backlight harness trips only that branch)
Thermal management — dual sensors driving graduated backlight power reduction at temperature extremes
Power-fail awareness — input monitoring giving early warning so the panel shuts down in a controlled, panel-safe sequence
Panel-protective sequencing — power/signal/backlight in the panel maker's exact order, guaranteed-off outputs during power-up, re-power lockout
Field-programmable panel support — up to five stored panel timing profiles plus a protected factory default and a boot-time selector.
Fail-safe service — dual firmware images, USB-C update in under a minute, block-verified, automatic fallback on interruption (is there USB-C?)
Scaling?
Audio?
