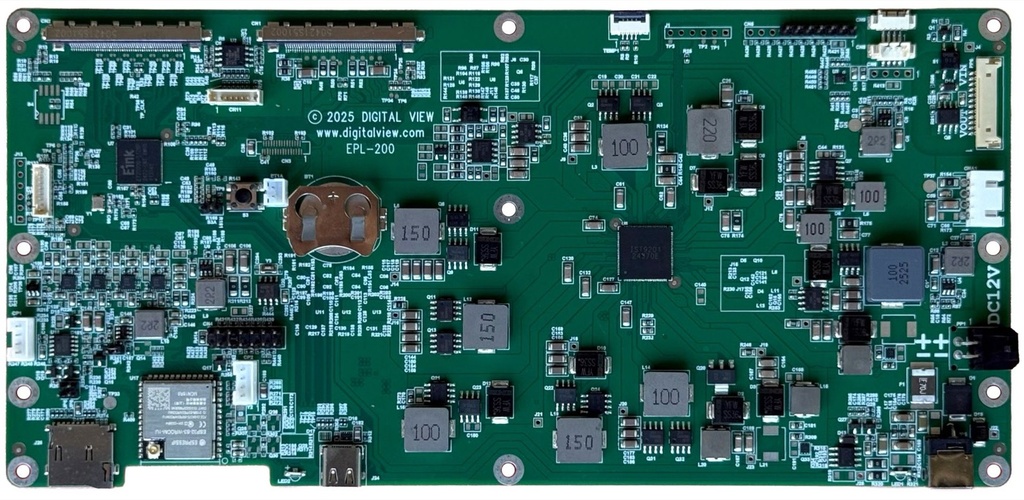

EPL-200 Driver Board

The EPL-200 drives E Ink epaper panels at 25.3", 28.1" and 28.5" — Kaleido colour, Spectra 6 and monochrome. Unlike a plain interface board it can run the display on its own: an ESP32-S3 with Wi-Fi and Bluetooth LE, a microSD card slot and a battery-backed real-time clock let it hold content and change it on a schedule with no host computer attached.

Connected to a host over USB-C it works as a straightforward image interface, taking a bitmap from a Raspberry Pi, an Android player or a PC.

Specifications: 25.3" 2560 × 1440 · 28" 3840 × 1080 · USB-C image input · microSD · Wi-Fi and Bluetooth LE with external antenna connector · 2 × solid-state relay to 350 V · panel temperature sensor input · 12V DC · 230 × 110 × 1.6 mm, 4-layer · 0°C to +60°C · MTBF over 200,000 hours @ 25°C · 3-year warranty. Full specifications, diagrams and downloads ›

FFC panel cables (P/N 426162350-3, two required) are ordered separately. The E Ink panel is not included.
