END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

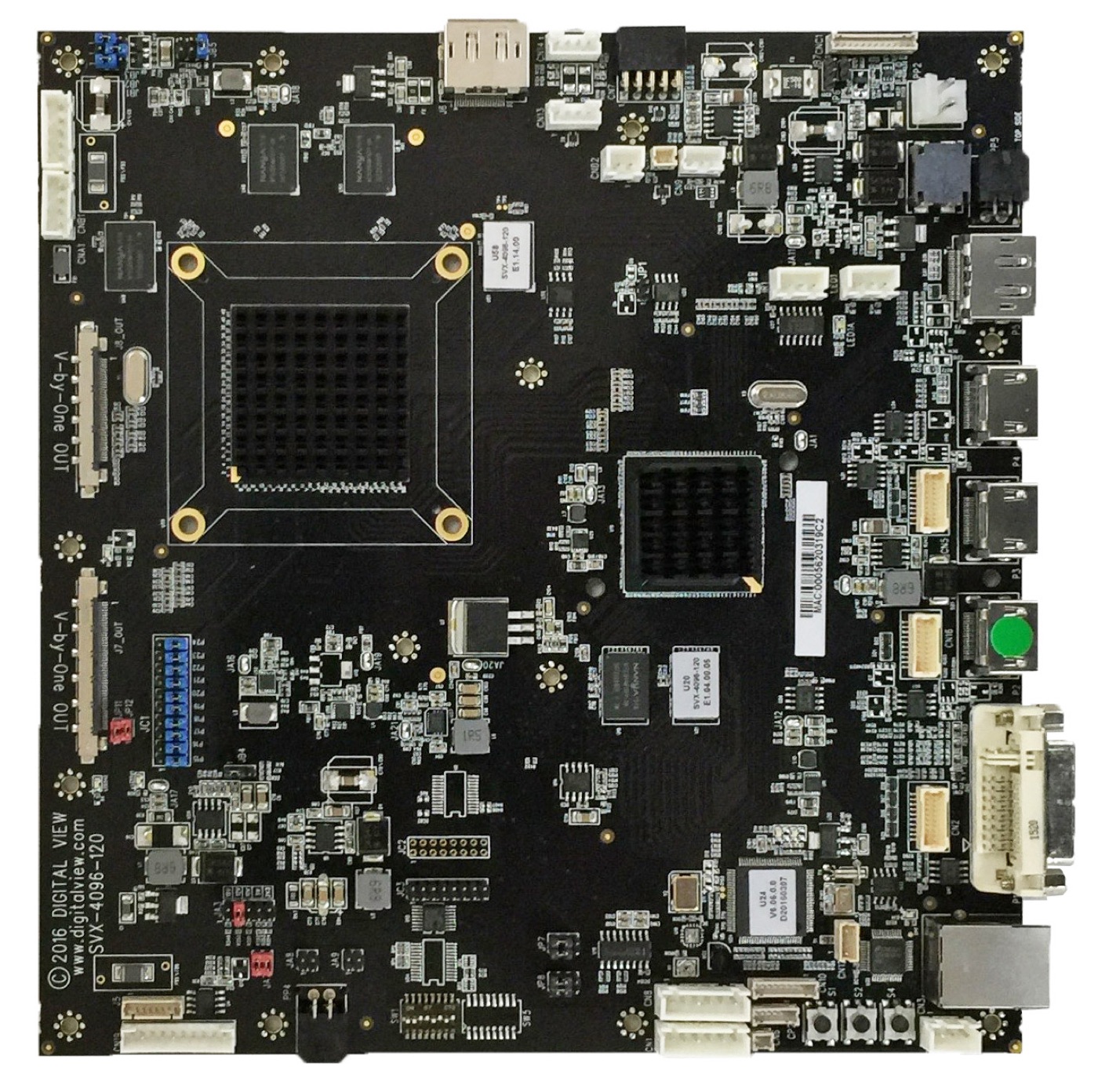

SVX-4096-120 LCD Controller Board

The SVX-4096-120 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: SVX-4096-120

  • Panel compatibility: Compatible with 4096x2160 resolutions of TFT LCD panels with V-by-One panel interface. A specified BIOS and some factory adjustment is required for individual panel timings.
  • No. of colors: Up to 3 x 10 bit providing 1.06 billion colors.
  • Panel power: DC 3.3V, 5V, 10V, 12V, 18V
  • Panel signal: V-by-One (8 or 16 Lane)
  • Video ports: DVI-I (Dual Link) in DisplayPort 1.2 in/out (Pass-through) HDMI 1.4 in HDMI 2.0 in
  • Functions display: On screen display (OSD) of functions
  • OSD menu functions: Image controls: Panel brightness/contrast, Saturation, Hue, Color temperature, Sharpness, Aspect ratio, Rotate, Gamma, PIP/PBP.
  • OSD menu controls available: Power On/Off OSD Menu OSD Select up OSD Select down Setting + Setting -
  • Control interface: Buttons, RS-232, IR Remote control, Ethernet control
  • Settings memory: Settings are stored in non volatile memory
  • PC Connectivity: VGA / SVGA / XGA / SXGA / UXGA / WUXGA analog or digital
  • Controller dimensions: 203.2mm x 194mm (8” x 7.64”)
  • Power consumption: 10W approx. (not including panel power consumption)
  • Power load maximum: The controller has an overall 3Amp current limit.
  • Input voltage: 12V/24VDC +/- 5%
  • On board battery lifetime: 3 years at storage (without applying power to the unit). The battery is not rechargeable.
  • Power protection: Fuse fitted (Resettable)
  • DC Power handling: Reverse power polarity protection is equipped on the board
  • Storage temperature limits: -40oC to +70oC
  • Operating temperature limits: 0oC to +60oC

Downloads: SVX-4096-120

Other documentation for this board may be available on request — contact us.
