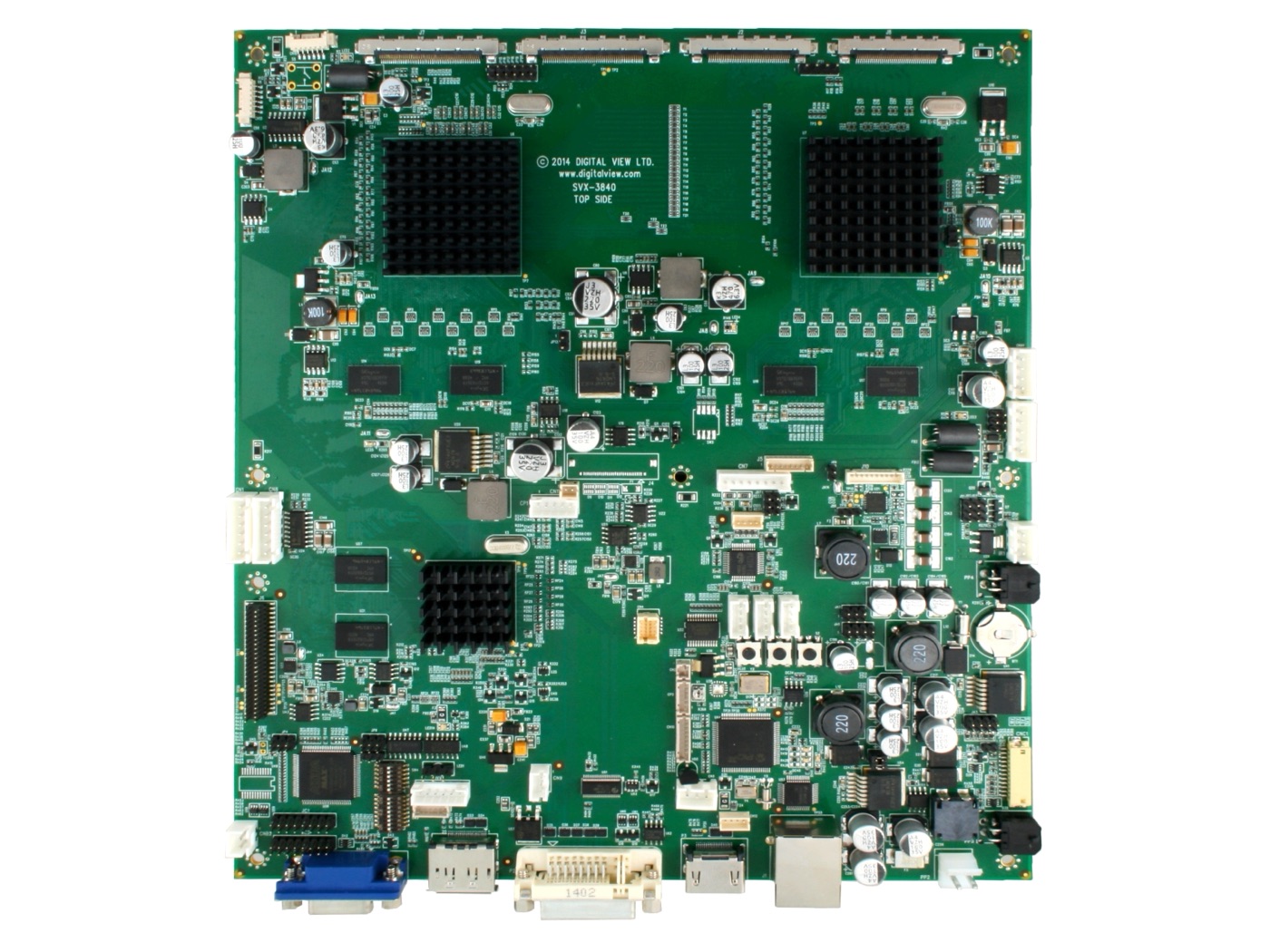

SVX-3840 LCD Controller Board

The SVX-3840 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: SVX-3840

  • Panel compatibility: Compatible with 3840x2160 resolutions of TFT LCD panels with V-by-One panel interface. A specified BIOS and some factory adjustment is required for individual panel timings.
  • No. of colors: Up to 3 x 10 bit providing 1.06 billion colors.
  • Panel power: DC 3.3V, 5V, 12V, 18V
  • Panel signal: V-by-One 8 & 16 Lane
  • Standard input at source (analog: VGA analog (15 pin) standard with automatic detection of:
  • RGB): Digital Separate Sync; Sync On Green.
  • Video formats: PAL, NTSC & SECAM
  • Video inputs: ARGB (VGA) DVI-D (Dual Link) Component video Display Port 1.2 HDMI 1.4
  • Functions display: On screen display (OSD) of functions
  • OSD menu functions: Image controls: Panel brightness/contrast, Saturation, Hue, Color temperature, Sharpness, Aspect ratio etc.
  • OSD menu controls available: Power On/Off Backlight brightness OSD Menu OSD Select up OSD Select down Setting + Setting -
  • Control interface: Buttons, RS-232, IR Remote control, Ethernet control
  • Settings memory: Settings are stored in non volatile memory
  • PC Connectivity: VGA / SVGA / XGA / SXGA / UXGA / WUXGA analog or digital
  • Controller dimensions: 203.2mm x 228.6mm (8.01.” x 9.01”)
  • Power consumption: 10w approx. (not including panel power consumption)
  • Power load maximum: The controller has an overall 3Amp current limit.
  • Input voltage: 12V/24VDC +/- 5%
  • On board battery lifetime: 3 years at storage (without applying power to the unit). The battery is not rechargeable.
  • Power protection: Fuse fitted (Resettable)
  • DC Power handling: Reverse power polarity protection is equipped on the board
  • Storage temperature limits: -40oC to +70oC
  • o: o
  • Operating temperature limits: 0 C to +60 C

Downloads: SVX-3840

Other documentation for this board may be available on request — contact us.
