END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

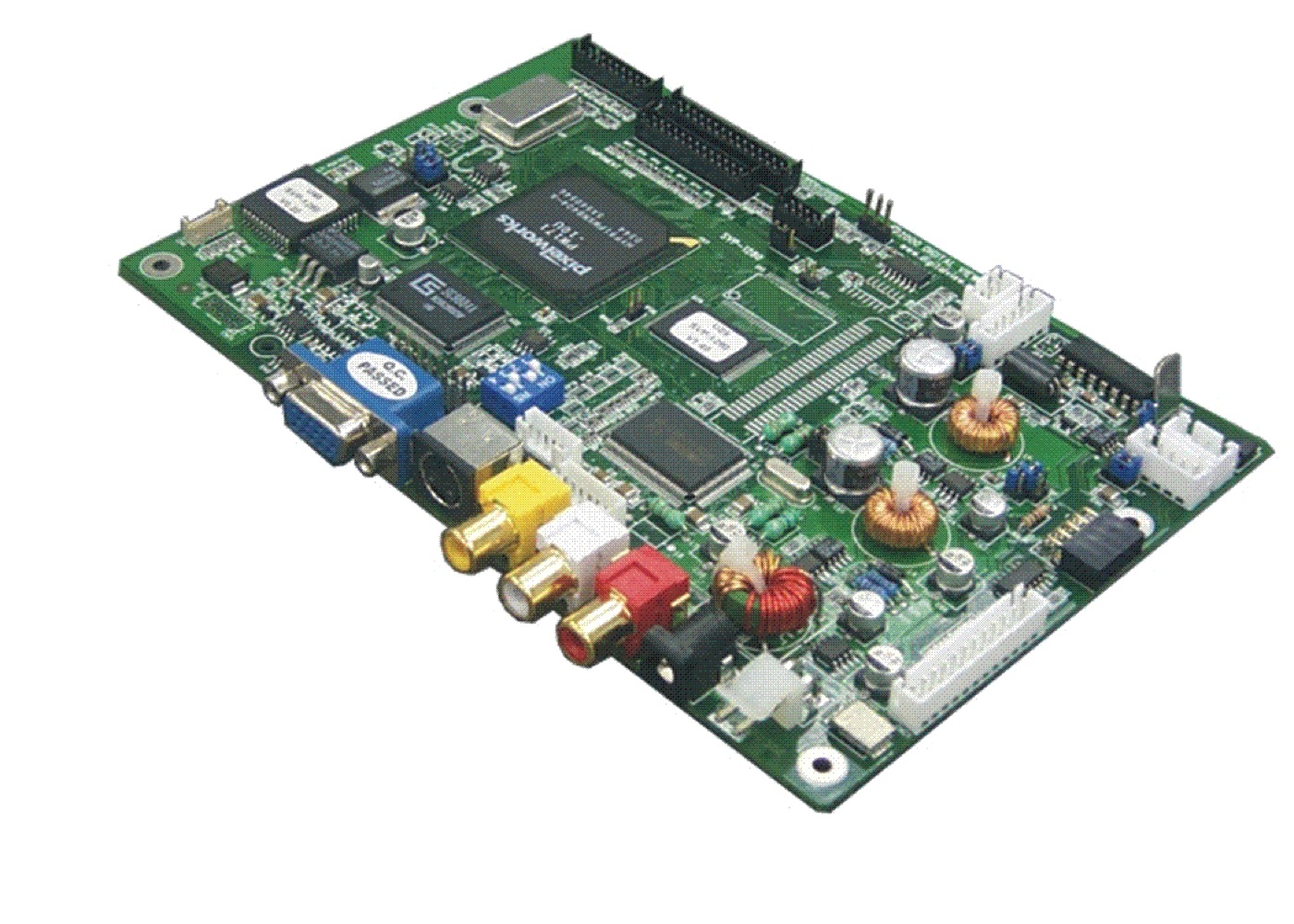

SVP-1600 LCD Controller Board

The SVP-1600 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: SVP-1600

  • Panel compatibility: Compatible with 1600x1200, 1280x1024 & 1024 x 768 resolutions of TFT LCD panels from manufacturers such as: Toshiba, Sharp, Samsung, Philips/Hosiden, NEC, Mitsubishi/ADI, LG, IBM, Hitachi, Fujitsu, etc A specified BIOS and some factory adjustment may be required for individual panel timings.
  • No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • Signal Level: 3.3V , 5V
  • Panel signal: TTL with LVDS & TMDS options (through add-on board)
  • Vertical refresh rate: 60Hz at UXGA and up to 85Hz other lower resolution
  • Dot clock (pixel clock) maximum: Up to 280 MHz
  • Graphics formats: Standard VESA VGA, SVGA, XGA & SXGA & UXGA; Other special formats through specified BIOS and factory adjustment.
  • Graphics auto mode detect: VGA, SVGA, XGA, SXGA & UXGA, interlaced and non-interlaced
  • Standard input at source (analog: VGA analog (15 pin) standard with automatic detection of:
  • RGB): Digital Separate Sync; Composite Sync & Sync On Green.
  • Video formats: PAL, NTSC & SECAM
  • Video inputs: Composite video S-Video Component video (YCbCr)
  • Functions display: On screen display (OSD) of functions
  • OSD menu functions: Image controls: Panel brightness/contrast, Color Temperature, Video Adjustment, Video System, Position, PIP, Rotation, Gamma, Video Scaling, Language, Video source, Utilities, Volume
  • OSD menu controls available: Power On/Off Backlight brightness OSD Menu OSD Select up OSD Select down Setting + Setting -
  • Control interface: Buttons Infra red RS-232 serial control
  • Settings memory: Settings are stored in non volatile memory
  • PC Connectivity: VGA / SVGA / XGA /SXGA / UXGA analog
  • Controller dimensions: 179mm x 120.4mm (7.” x 4.74”)
  • Power consumption: 10w approx. (not including panel power consumption)
  • Power load maximum: The controller has an overall 3Amp current limit.
  • Input voltage: 12VDC
  • Power protection: Fuse fitted
  • DC Power handling: An on board relay handles the power load for On/Off and power protection to the LCD.
  • o: o
  • Storage temperature limits: -40 C to +70 C

Downloads: SVP-1600

Other documentation for this board may be available on request — contact us.
