SVH-1920 LCD Controller Board

  • Panel compatibility: Compatible with 1920x1200, 1920x1080, 1600x1200, 1366x768, 1280x1024, 1024x768, 800x600 & 640x480 resolutions
  • Panel signal: TTL / LVDS
  • Panel power: DC 3.3V, 5V, 12V, 12V~18V
  • Standard input at source: VGA analog (15 pin) standard with automatic detection of: Digital Separate Sync; Composite Sync Sync On Green.
  • Input voltage: 12VDC +/- 5%
  • Controller dimensions: 179mm x 120.4mm (7.” x 4.74”)
  • Part number: 416960032-3 or up
  • Availability: End of life — no longer available

Jump to Downloads

Find on the Controller Solution Generator (CSG)

END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

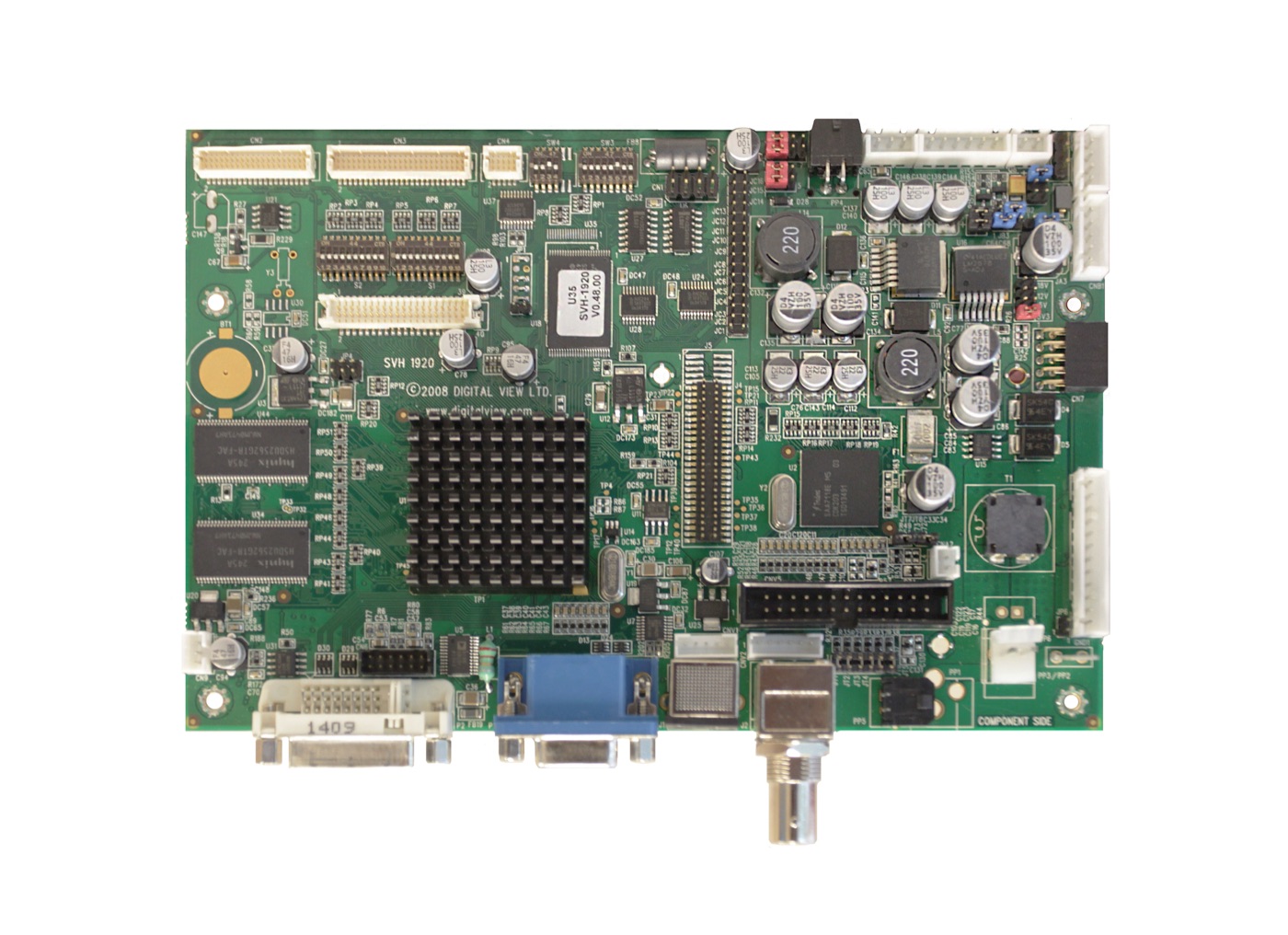

SVH-1920 LCD Controller Board

The SVH-1920 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: SVH-1920

  • Panel compatibility: Compatible with 1920x1200, 1920x1080, 1600x1200, 1366x768, 1280x1024, 1024x768, 800x600 & 640x480 resolutions of TFT LCD panels. A specified BIOS and some factory adjustment may be required for individual panel timings.
  • No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • Panel power: DC 3.3V, 5V, 12V, 12V~18V
  • Panel signal: TTL / LVDS
  • Vertical refresh rate: 60Hz at 1920x1200, 60Hz at 1920x1080, 60Hz at UXGA and up to 75Hz other lower resolution
  • Display clock maximum: 165MHz
  • ADC clock maximum: 195 MHz
  • DVI differential input clock maximum: 165MHz
  • Graphics formats: Standard VESA VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA Other special formats through specified BIOS and factory adjustment.
  • Graphics auto mode detect: VGA, SVGA, XGA, SXGA, WXGA, UXGA & WUXGA interlaced and non-interlaced
  • Standard input at source (analog RGB): VGA analog (15 pin) standard with automatic detection of: Digital Separate Sync; Composite Sync Sync On Green.
  • Video formats: PAL, NTSC & SECAM
  • Video inputs: ARGB DVI-D Composite video S-Video SD Component video (YCbCr) HD Component (YPbPr) HD-SDI
  • Functions display: On screen display (OSD) of functions
  • OSD menu functions: Image controls: Panel brightness/contrast, Saturation, Hue, Color temperature, Sharpness, Video Scaling, PIP, OSD position, OSD timeout, Image orientation, Auto Source Seek, etc.
  • OSD menu controls available: Power On/Off Backlight brightness OSD Menu OSD Select up OSD Select down Setting + Setting -
  • Control interface: Buttons, RS-232, Remote control
  • Settings memory: Settings are stored in non volatile memory
  • PC Connectivity: VGA / SVGA / XGA / SXGA / UXGA / WUXGA analog or digital
  • Controller dimensions: 179mm x 120.4mm (7.” x 4.74”)
  • Power consumption: 10w approx. (not including panel power consumption)
  • Power load maximum: The controller has an overall 3Amp current limit.
  • Input voltage: 12VDC +/- 5%
  • Power protection: Fuse fitted (Resettable)
  • DC Power handling: Reverse power polarity protection is equipped on the board
  • o: o

Downloads: SVH-1920

Other documentation for this board may be available on request — contact us.
