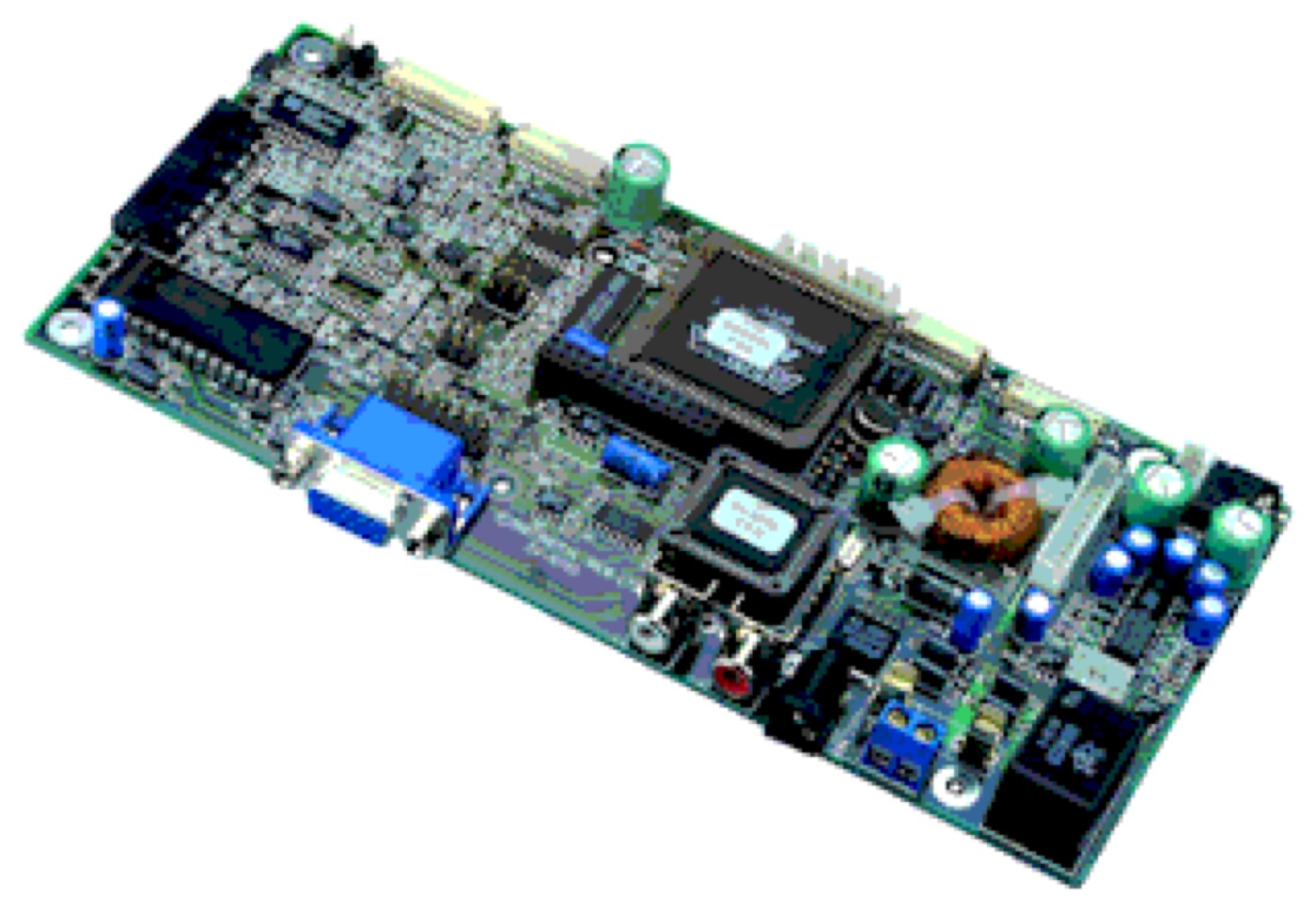

SV-N705 LCD Controller Board

  • Panel compatibility: Compatible with analog input panels from NEC of resolution: • 640 x 480 • 800 x 600 • 1024 x 768 • 1280 x 1024
  • Standard input at source: • PC: VGA analog type • Video: PAL & NTSC (auto detect), requires optional video input card.
  • Input voltage: 12VDC
  • Controller dimensions: 178mm x 91.4mm (7.00” x 3.60”)
  • Part number: 4167900-62 or upper
  • Availability: End of life — no longer available

Jump to Downloads

Find on the Controller Solution Generator (CSG)

END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

SV-N705 LCD Controller Board

The SV-N705 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: SV-N705

  • Panel compatibility: Compatible with analog input panels from NEC of resolution: • 640 x 480 • 800 x 600 • 1024 x 768 • 1280 x 1024
  • No. of colours: Analog RGB
  • Vertical refresh rate: Dependent on panel
  • Horizontal frequency: Dependent on panel
  • Dot clock (pixel clock) maximum: Dependent on panel
  • Graphics formats: Dependent on panel
  • Graphics auto mode detect: Yes
  • Standard input at source: • PC: VGA analog type • Video: PAL & NTSC (auto detect), requires optional video input card.
  • On screen display: Yes
  • Control functions: • On/Off • Brightness (backlight) • OSD Menu • OSD Select down • OSD Setting + • OSD Setting -
  • Control methods: • Manual: switch, VR & buttons • Remote: Infrared • Other: RS-232
  • Settings memory: Settings are stored in non volatile memory
  • Controller dimensions: 178mm x 91.4mm (7.00” x 3.60”)
  • Power consumption: 8w approx (not including panel power consumption)
  • Power load maximum: +12V, 2A & +5V, 2A
  • Voltage output for LCD: +3.3V DC, +5V DC, +12V DC
  • Input voltage: 12VDC
  • Power protection: Fuse fitted
  • DC Power handling: An on board FET handles the power load for On/Off and power protection to the LCD.
  • Storage temperature limits: -40oC to +70oC
  • Operating temperature limits: 0oC to +65oC

Downloads: SV-N705

Other documentation for this board may be available on request — contact us.
