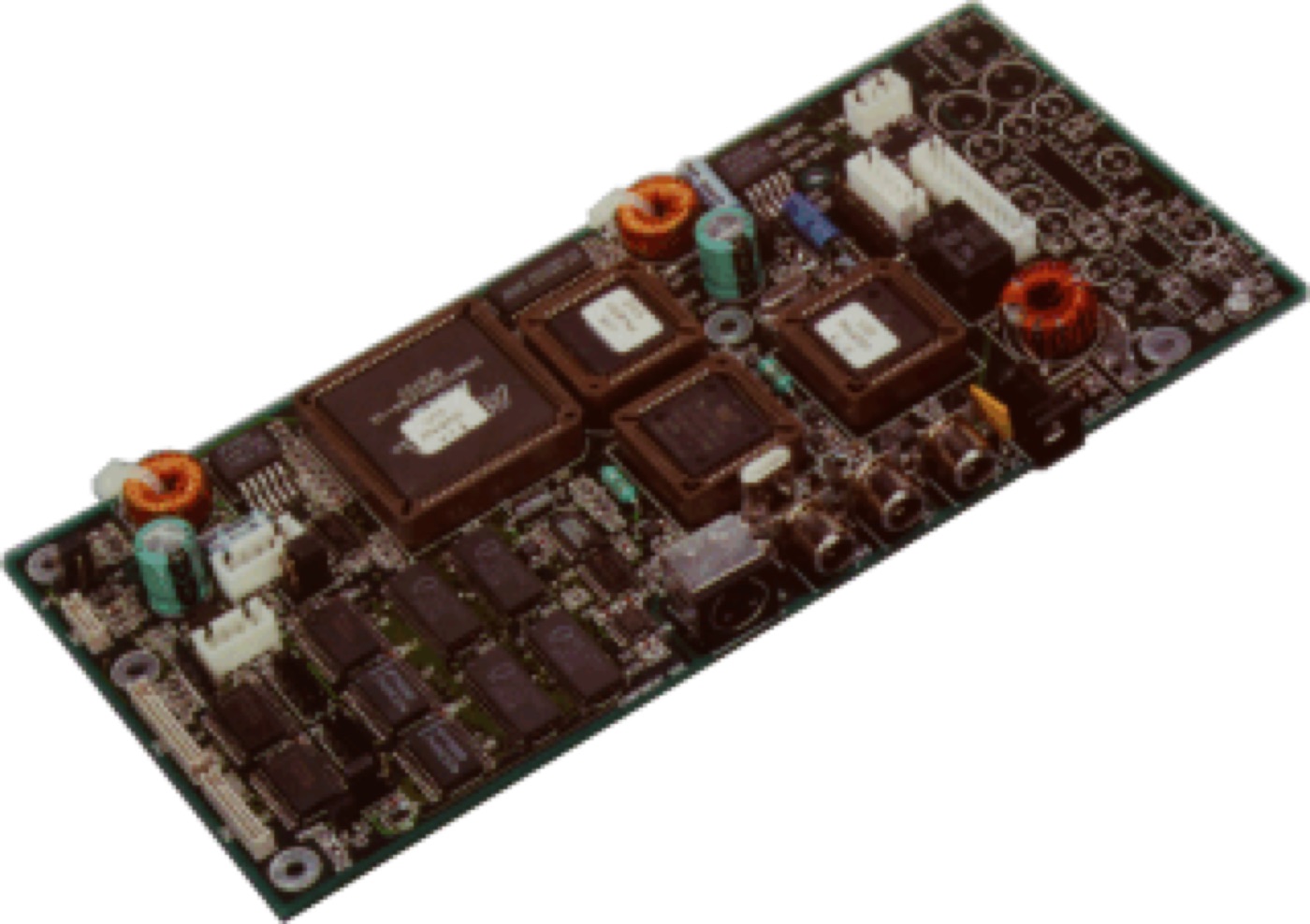

PN-9701 LCD Controller Board

• Panel compatibility: Compatible with 640 x 480 TFT LCD’s from manufacturers such as Sharp, NEC, Toshiba, IBM (subject to correct BIOS version being installed).
• No. of colours: 6 (green), 5 (red), 5 (blue) bit
• Input auto-syncronisation: PAL & NTSC: • Factory default is PAL B, G, H, I and NTSC M • Factory set options: SECAM, NTSC443
• Video inputs: • Composite video: 1.0v (p-p) 75Ω, negative sync • S-Video: Y 1.0v (p-p) 75Ω, negative sync, C 0.286v (p-p) 75Ω
• Automatic Gain Control (AGC): 0.6v p-p to 2.0v p-p
• Functions available: • On/Off - via mechanical switch, not OSD • Volume (audio) • Brightness • Contrast, • Colour • Tint (NTSC only) • Image position (V & H). • Input priority (Composite or S-video)
• Power saving / Standby mode: If no signal input: • On screen message, timed • Auto power down
• Control method: • Manual via buttons • Remote control via infra-red
• Settings memory: Settings are stored in non volatile memory
• Functions display: On screen display of menu and settings
• Indication LED: Support for 2 colour LED to indicate Power On & Standby modes.
• Controller dimensions: 198.12mm x 91.44mm x 20mm(approx)
• Voltage output for LCD: +3.3V DC, +5V DC, +12V DC
• Input voltage: 12VDC
• Power protection: Fuse fitted - auto reset
• DC Power handling: An on board relay handles the main power load for mechanical On/Off.
• Power load maximum: The controller has an overall 3Amp current limit.
• Controller power consumption: Approx 2.5W (controller logic only, no panel)
• o: o
• Storage temperature limits: -40 C to +70 C
• o: o o
• Operating temperature limits: -25 C to +60 C (without audio section up to 65 C

• Manual (PDF)
• Brochure

Other documentation for this board may be available on request — contact us.
