MAV-1280 OEM LCD Controller Board

  • Panel compatibility: Compatible with 1280x1024, 1024 x 768, 800x600, 640x480 resolutions of TFT LCD panels from manufacturers such
  • Panel signal: TTL with LVDS & TMDS options (through add-on board)
  • Panel power: DC +3.3V, +5V, +12V
  • Input voltage: 12VDC
  • Controller dimensions: 180mm x 96mm (7” x 3.8”)
  • Part number: 4167100-1X
  • Availability: End of life — no longer available

Jump to Downloads

Find on the Controller Solution Generator (CSG)

END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

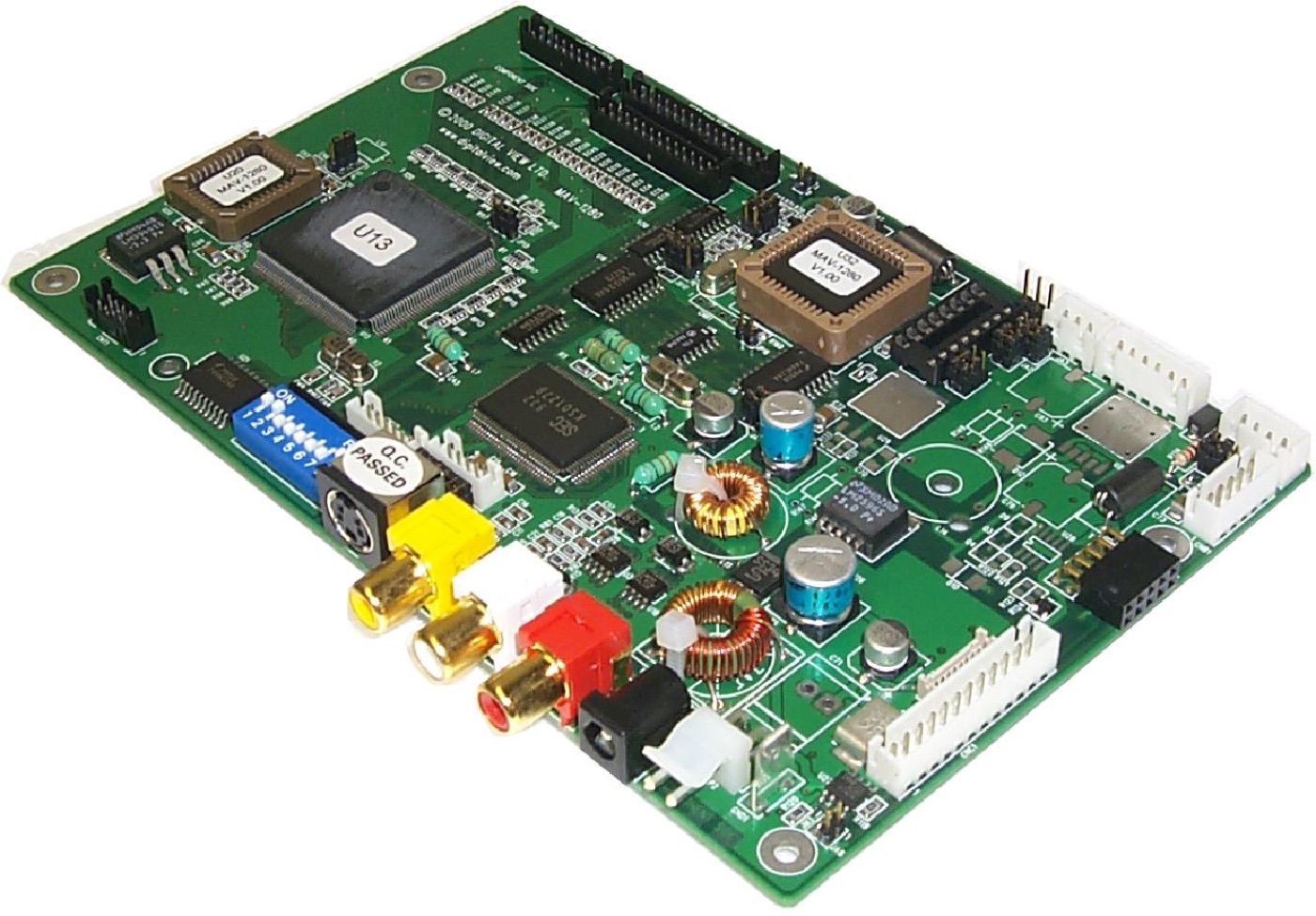

MAV-1280 OEM LCD Controller Board

The MAV-1280 OEM was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: MAV-1280 OEM

  • Panel compatibility: Compatible with 1280x1024, 1024 x 768, 800x600, 640x480 resolutions of TFT LCD panels from manufacturers such as: Chi Mei, Fujitsu, Hosiden, LG, Mitsubishi, NEC, Samsung, Sharp, Toshiba, Unipac A specified BIOS and some factory adjustment may be required for individual panel timings.
  • No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • Panel power: DC +3.3V, +5V, +12V
  • Panel signal: TTL with LVDS & TMDS options (through add-on board)
  • Dot clock (pixel clock) maximum: 108MHz
  • Video formats: PAL, NTSC, SECAM**
  • Video inputs: Composite video S-Video Component video (YcrCb)
  • Functions display: On screen display (OSD) of functions
  • OSD menu functions: Image controls: Brightness, Contrast, Color, Tint(NTSC-video) Image adjust, sharpness, Gamma adjustment** Other features: System information, OSD menu position, Hot key function, Multiple language support,Run-time counter, power down option, audio controls
  • OSD menu controls available: Power On/Off Backlight brightness OSD Menu OSD Select up OSD Select down Setting + Setting -
  • Control interface: Buttons Infra red RS-232**
  • Settings memory: Settings are stored in non volatile memory
  • Controller dimensions: 180mm x 96mm (7” x 3.8”)
  • Power consumption: 10w approx. (not including panel power consumption)
  • Power load maximum: The controller has an overall 2Amp current limit.
  • Input voltage: 12VDC
  • Power protection: Resettable Fuse fitted
  • DC Power handling: An on board relay handles the power load for On/Off and power protection to the LCD.
  • o: o
  • Storage temperature limits: -40 C to +70 C
  • o: o
  • Operating temperature limits: 0 C to +60 C

Downloads: MAV-1280 OEM

Other documentation for this board may be available on request — contact us.
