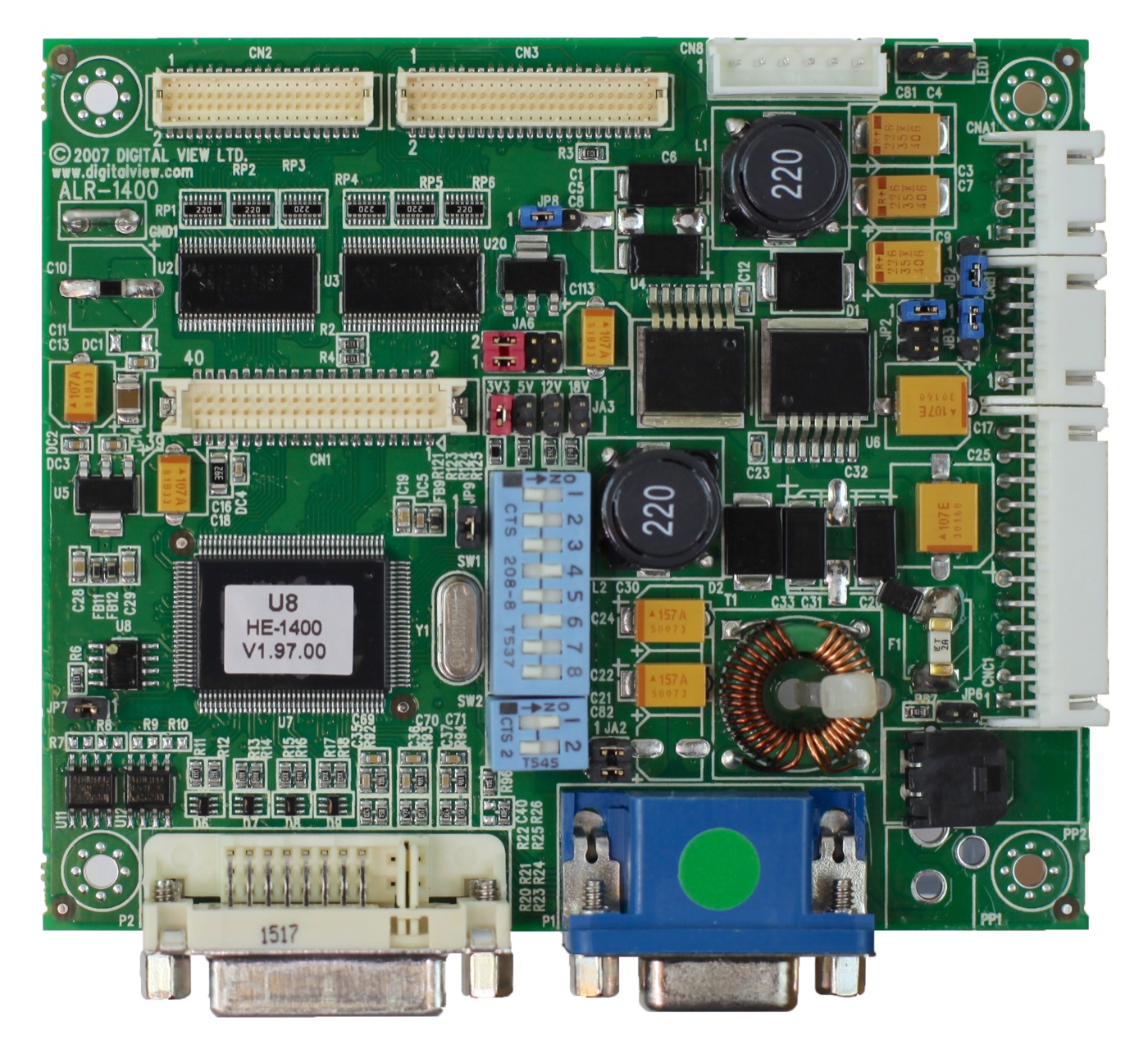

HE-1400 LCD Controller Board

The HE-1400 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: HE-1400

  • Panel compatibility: 1366x768, 1280x1024, 1280x800, 1280x768, 1024 x 768, 1024x600, 800x600, 800x480, 640x480 or 480x234 resolution TFT LVDS or TTL LCD’s support.
  • No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • Vertical refresh rate: SXGA, XGA, SVGA, VGA resolution up to 60Hz.
  • Dot clock (pixel clock) maximum: 135 MHz
  • Graphics formats: Standard SXGA, XGA,SVGA,VGA
  • Standard input at source: - VGA analog (15-pin) standard with automatic detection of : Digital Separate Sync Sync-On-Green Composite Sync - DVI-D
  • Controls available: - On/Off - Brightness (inverter) - OSD menu, - OSD select - OSD setting + - OSD setting -
  • Control interface: - Buttons, Serial Port control
  • Settings memory: Settings are stored in non volatile memory
  • Language OSD support: Graphics OSD icons
  • VESA DPMS implementation: Yes
  • Plug & Play: VESA DDC 1, 2/b compatible
  • Voltage output for LCD: +3.3V , +5V, +12V
  • Input voltage: 12VDC , 5A max +/- 25%, 4W (controller only)
  • Controller dimensions: 107mm x 92mm x 21mm
  • Storage temperature limits: -40oC to +85oC
  • Operating temperature limits: -40oC to +80oC**
  • Coating: Silicone resin conformal coating. (MOD) DEF-STAN 59/47 Issue 4 & UL QMJU2 compliant.
  • Calculated Mean Time Between Failures: In excess of 200,000 hours

Downloads: HE-1400

Other documentation for this board may be available on request — contact us.
