DVI-2560 LCD Controller Board

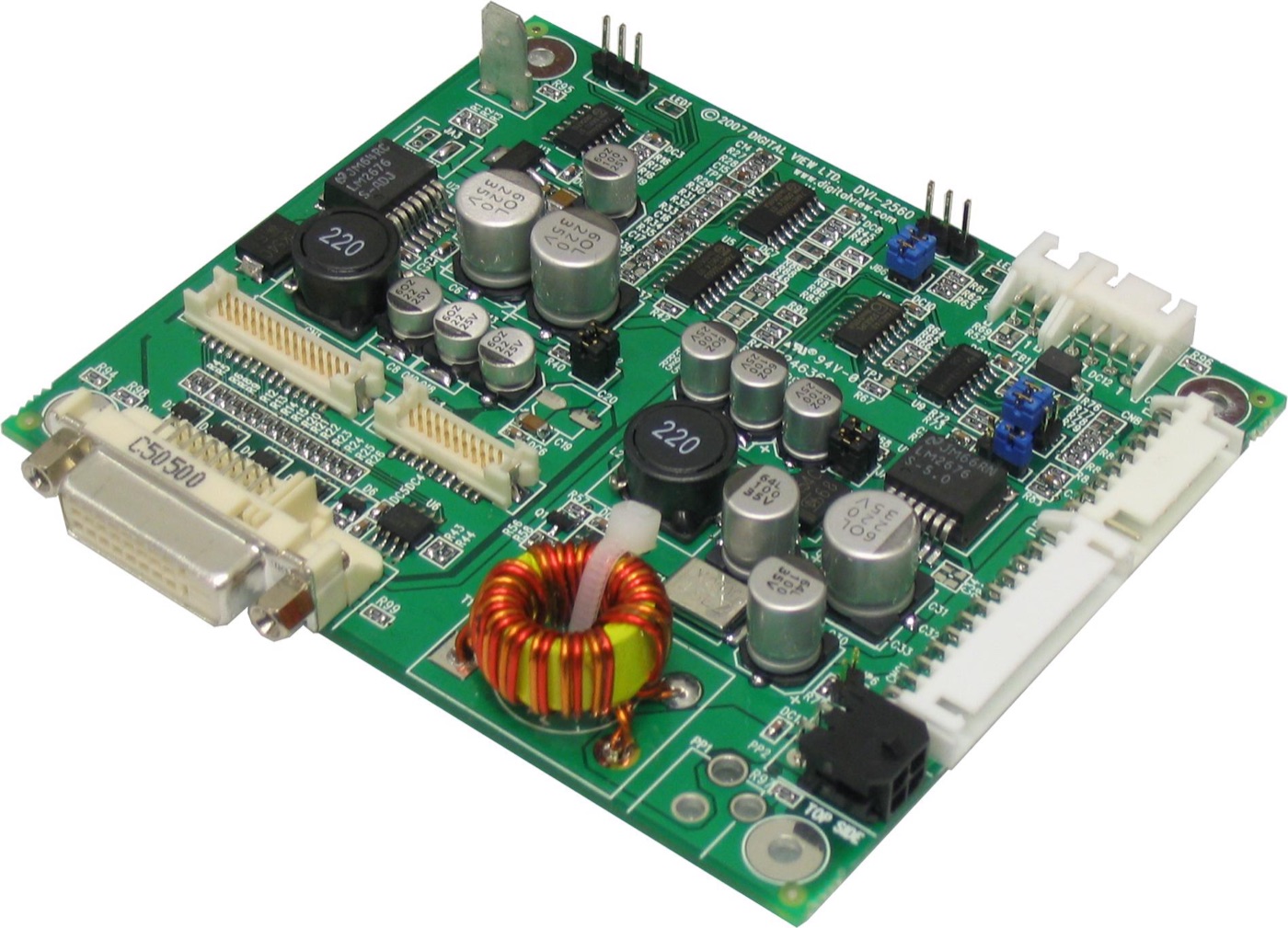

The DVI-2560 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: DVI-2560

  • Panel compatibility: 2560x1600 resolution TFT TMDS 18V LCD’s panel support.
  • No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • Vertical refresh rate: WQXGA (2560x1600) resolution up at 60Hz.
  • Graphics formats: 2560x1600 60Hz signal
  • Standard input at source: - DVI-D
  • Controls available: - On/Off - Brightness (inverter)
  • VESA DPMS implementation: Yes
  • Plug & Play: VESA DDC 1, 2/b compatible
  • Voltage output for LCD: +18V only
  • Input voltage: 24VDC
  • Controller power consumption: Approx 1.5W (controller logic only, no panel and inverter are involved)
  • Controller dimensions: 107mm x 92mm x 19.6mm
  • o: o
  • Storage temperature limits: -40 C to +70 C
  • o: o
  • Operating temperature limits: 0 C to +60 C
