DD-1920-VGA LCD Controller Board

  • Panel compatibility: 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1400x1050, 1440x900, 1366x768, 1280x1024, 1280x800, 1280x768, 1024
  • Standard input at source: - VGA
  • Input voltage: 12VDC , 5A max +/- 5%
  • Controller dimensions: 62.7mm x 91.4mm x 13.8mm
  • Part number: 41743000X-3
  • Availability: End of life — no longer available

Jump to Downloads

Find on the Controller Solution Generator (CSG)

END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

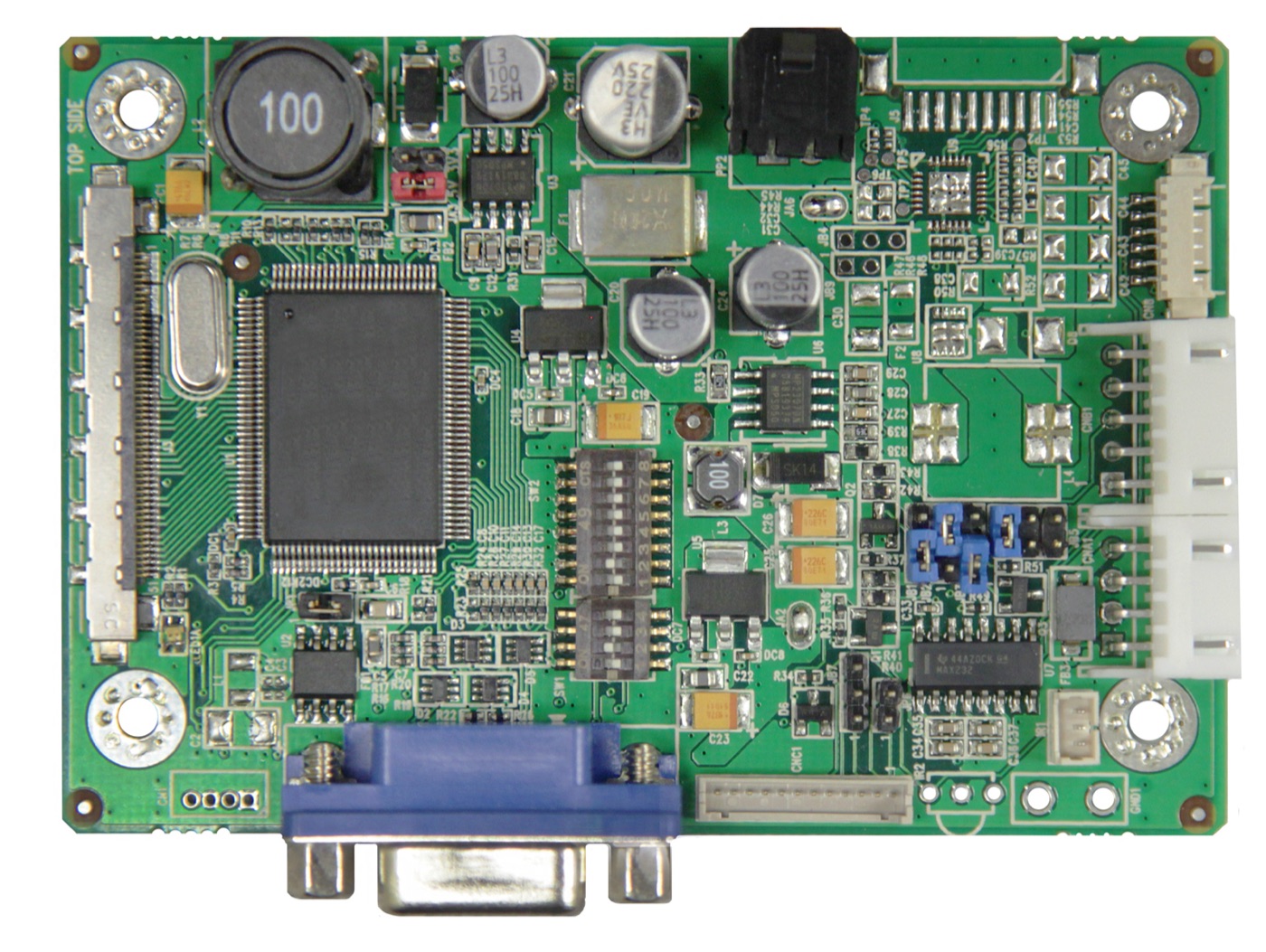

DD-1920-VGA LCD Controller Board

The DD-1920-VGA was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: DD-1920-VGA

  • Panel compatibility: 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1400x1050, 1440x900, 1366x768, 1280x1024, 1280x800, 1280x768, 1024x768, 1024x600, 800x600, 800x480, 640x480, 480x640 resolution TFT LVDS LCD‟s support.
  • No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • Vertical refresh rate: WUXGA, UXGA, WXGA, SXGA, XGA, SVGA, VGA resolution up to 60Hz.
  • Dot clock (pixel clock) maximum: 165 MHz
  • Graphics formats: Standard WUXGA, UXGA, SXGA, XGA, SVGA, VGA
  • Standard input at source: - VGA
  • Controls available: - On/Off - Brightness (inverter) - OSD menu - OSD select - OSD setting + - OSD setting -
  • Control interface: - Buttons, RS-232, IR remote control
  • Settings memory: Settings are stored in non volatile memory
  • Language OSD support: Graphics OSD icons
  • Voltage output for LCD: +3.3V, +5V, +12V The current drawn for 3.3V, 5V or 12V panel from 12VDC power input is limited to 3A.
  • Input voltage: 12VDC , 5A max +/- 5%
  • Controller power consumption: Approx 4W (controller logic only, no panel and inverter are involved)
  • Controller dimensions: 62.7mm x 91.4mm x 13.8mm
  • Storage temperature limits: -40oC to +70oC
  • Operating temperature limits: 0oC to +60oC

Downloads: DD-1920-VGA

Other documentation for this board may be available on request — contact us.
