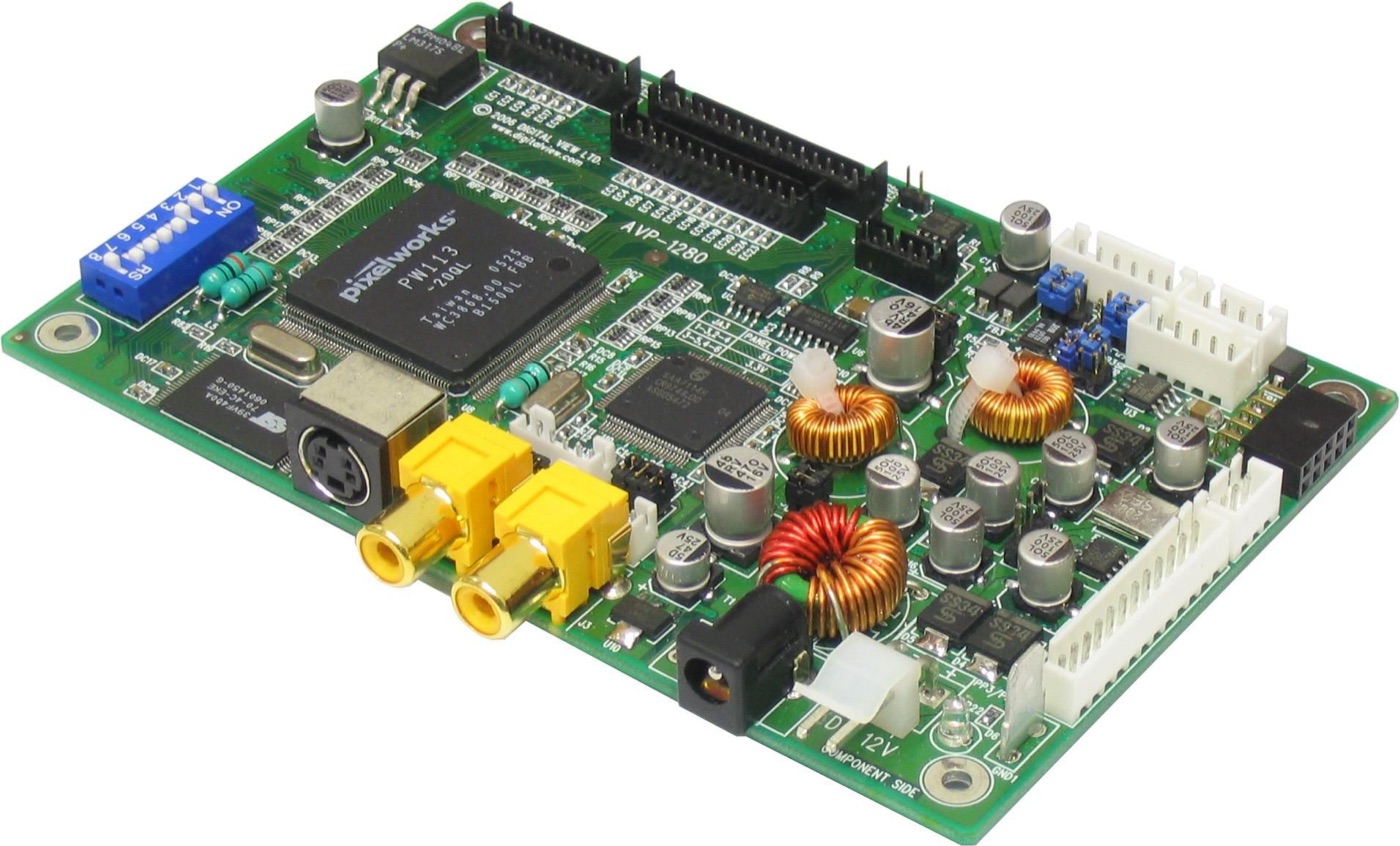

AVP-1280 LCD Controller Board

• Panel compatibility: Compatible with 1366x768, 1280x1024, 1280x768, 1024x768, 800x600, 640x480 resolutions of TFT LCD panels from manufacturers display such as: Fujitsu, LG, Mitsubishi, NEC, Samsung, Sharp, Toshiba, etc. A specified BIOS and some factory adjustment may be required for individual panel timings.
• No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
• Panel power: DC +3.3V, +5V, +12V
• Panel signal: TTL with LVDS & TMDS options (through add-on board)
• Dot clock (pixel clock) maximum: 108MHz
• Video formats: PAL, NTSC, SECAM
• Video inputs: Composite video A S-Video Composite video B
• Functions display: On screen display (OSD) of functions
• OSD menu functions: Image controls: Brightness, Contrast, Color Temperature, Color, Tint(NTSC-video), Sharpness, Image adjust Other features: User setting, OSD menu position, Direct Access function, Multiple language support, audio controls
• OSD menu controls available: Power On/Off Backlight brightness OSD Menu OSD Select up OSD Select down Setting + Setting -
• Control interface: Buttons Infra red RS-232
• Settings memory: Settings are stored in non volatile memory
• Controller dimensions: 142.24mm x 91.44mm (5.6” x 3.6”)
• Power consumption: 4w approx. (controller logic only, not including panel power consumption)
• Power load maximum: The controller has an overall 2Amp current limit.
• Input voltage: 12VDC
• Power protection: Resettable Fuse fitted
• DC Power handling: - An on board relay handles the power load for On/Off and power protection to the LCD. - Reverse power polarity protection is equipped on the board
• o: o
• Storage temperature limits: -40 C to +70 C
• o: o
• Operating temperature limits: 0 C to +60 C

• Manual (PDF)
• Revision Note (PDF)

Other documentation for this board may be available on request — contact us.
