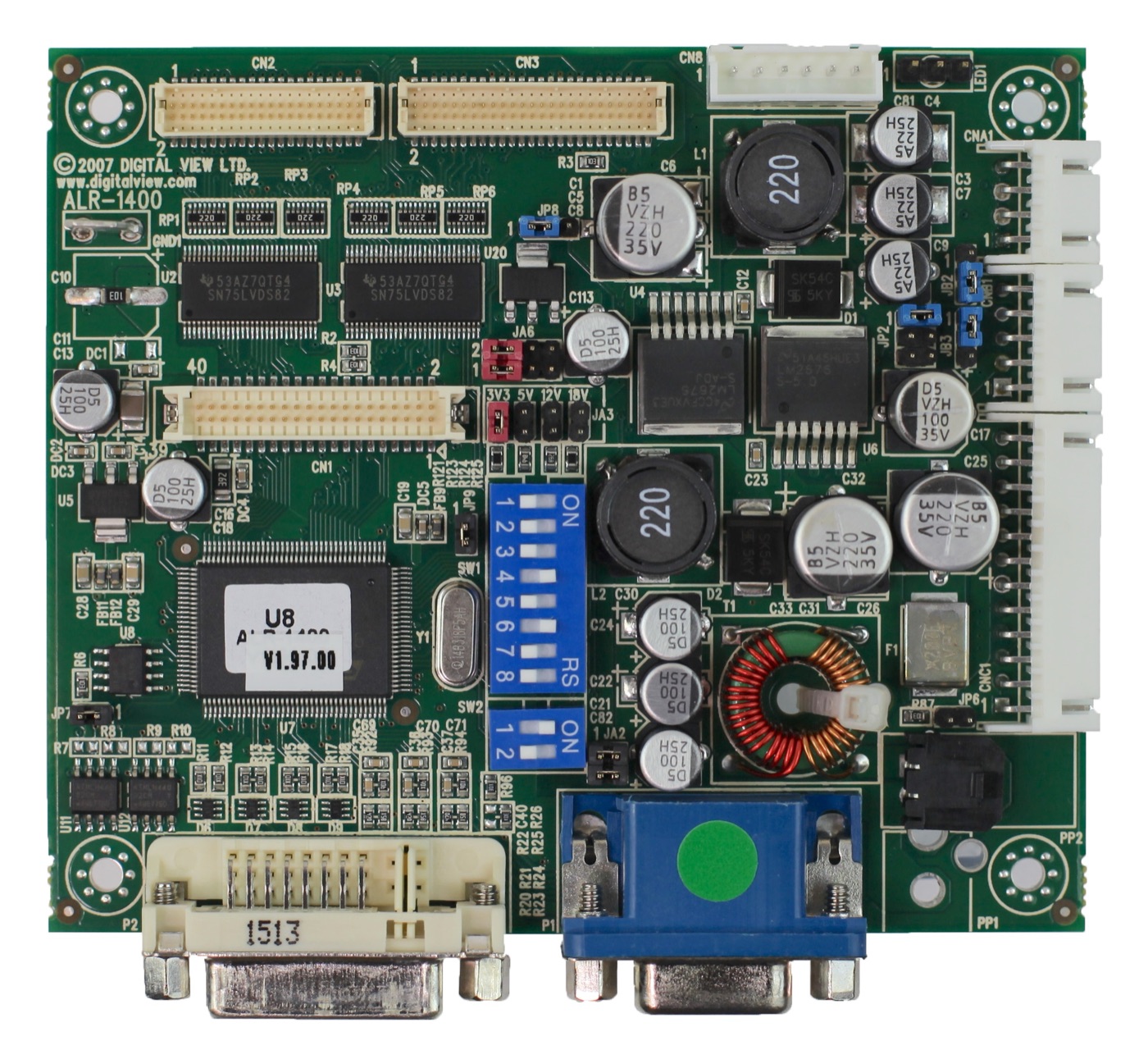

ALR-1400 LCD Controller Board

The ALR-1400 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: ALR-1400

  • Panel compatibility: 1400x900, 1366x768, 1280x1024, 1280x800, 1280x768, 1024 x 768, 1024x600, 800x600, 800x480, 640x480 or 480x234 resolution TFT LVDS or TTL LCD’s support.
  • No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • Vertical refresh rate: SXGA, XGA, SVGA, VGA resolution up to 60Hz.
  • Dot clock (pixel clock) maximum: 135 MHz
  • Graphics formats: Standard SXGA, XGA,SVGA,VGA
  • Standard input at source: - VGA analog (15-pin) standard with automatic detection of : Digital Separate Sync Sync-On-Green Composite Sync - DVI-D
  • Controls available: - On/Off - Brightness (inverter) - OSD menu - OSD select - OSD setting + - OSD setting -
  • Control interface: - Buttons
  • Settings memory: Settings are stored in non volatile memory
  • Language OSD support: Graphics OSD icons
  • VESA DPMS implementation: Yes
  • Plug & Play: VESA DDC 1, 2/b compatible
  • Voltage output for LCD: +3.3V , +5V, +12V, +18V The current drawn for 18V panel from 24VDC power input is limited to 2A. The current drawn for 3.3V, 5V or 12V panel from 12V/24VDC power input is limited to 3A.
  • Input voltage: 12VDC , 5A max / 24VDC 5A max +/- 5%
  • Controller power consumption: Approx 4W (controller logic only, no panel and inverter are involved)
  • Controller dimensions: 107mm x 92mm x 21mm
  • Storage temperature limits: -40oC to +70oC
  • Operating temperature limits: 0oC to +60oC

Downloads: ALR-1400

Other documentation for this board may be available on request — contact us.
