AL-1280 LCD Controller Board

  • Panel compatibility: 1280x1024, 1024 x 768, 800x600, 640x480 TFT LVDS LCD’s support.
  • Standard input at source: VGA analog (15-pin) standard with automatic detection of : Digital Separate Sync Sync-On-Green Composite Sync
  • Input voltage: 12VDC
  • Controller dimensions: 107mm x 92mm x 21mm
  • Part number: 41693001X-3 or up
  • Availability: End of life — no longer available

Jump to Downloads

Find on the Controller Solution Generator (CSG)

END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

AL-1280 LCD Controller Board

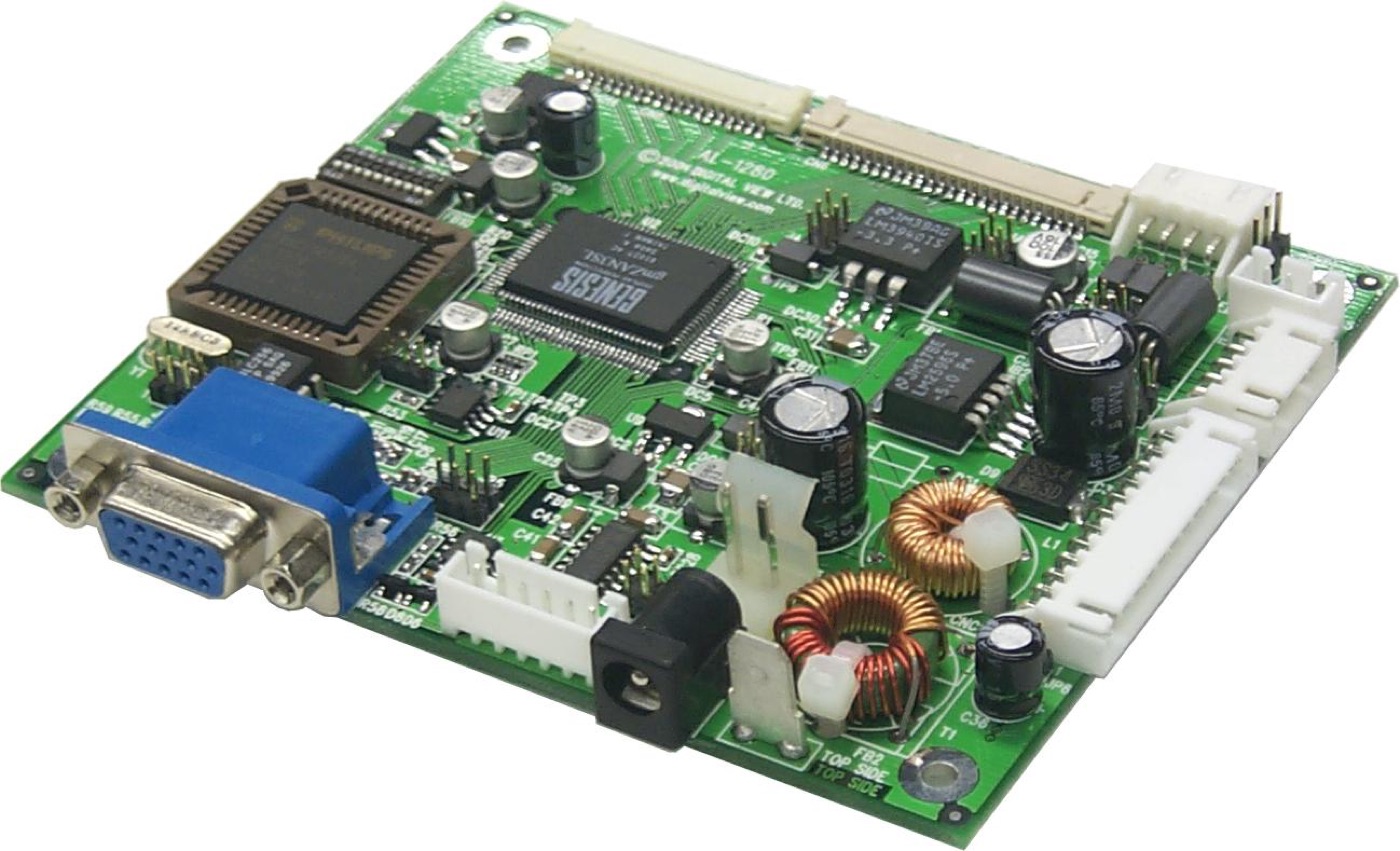

The AL-1280 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: AL-1280

  • Panel compatibility: 1280x1024, 1024 x 768, 800x600, 640x480 TFT LVDS LCD’s support.
  • No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • Vertical refresh rate: SXGA resolution up to 60Hz, XGA resolution up to 75Hz, SVGA resolution up to 75Hz. VGA resolution up to 75Hz
  • Dot clock (pixel clock) maximum: 120 MHz
  • Graphics formats: Standard SXGA, XGA,SVGA,VGA
  • Standard input at source: VGA analog (15-pin) standard with automatic detection of : Digital Separate Sync Sync-On-Green Composite Sync
  • Controls available: - On/Off - Brightness (inverter) - OSD menu, - OSD select - OSD setting + - OSD setting -
  • Control interface: - Buttons
  • Settings memory: Settings are stored in non volatile memory
  • Language OSD support: Graphics OSD icons
  • VESA DPMS implementation: Yes
  • Plug & Play: VESA DDC 1, 2/b compatible
  • Voltage output for LCD: +3.3V , +5V, +12V, +12~+18V (External voltage supply)
  • Input voltage: 12VDC
  • Controller power consumption: Approx 4W (controller logic only, no panel and inverter are involved)
  • Controller dimensions: 107mm x 92mm x 21mm
  • o: o
  • Storage temperature limits: -40 C to +70 C
  • o: o
  • Operating temperature limits: 0 C to +60 C

Downloads: AL-1280

Other documentation for this board may be available on request — contact us.
