ACL-1280 LCD Controller Board

  • Panel compatibility: 1280x1024, 1024 x 768, 800x600, 640x480 TFT LCD’s from manufacturers such as Fujitsu, Samsung, Sharp, LG
  • Standard input at source: VGA analog (15-pin) standard. Composite/S-video/ component signal source (PAL/NTSC/SECAM) optional by plugging
  • Input voltage: 12VDC
  • Controller dimensions: 179.07mm x 114.31mm x 16.9mm
  • Part number: 416530X-XX
  • Availability: End of life — no longer available

Jump to Downloads

Find on the Controller Solution Generator (CSG)

END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

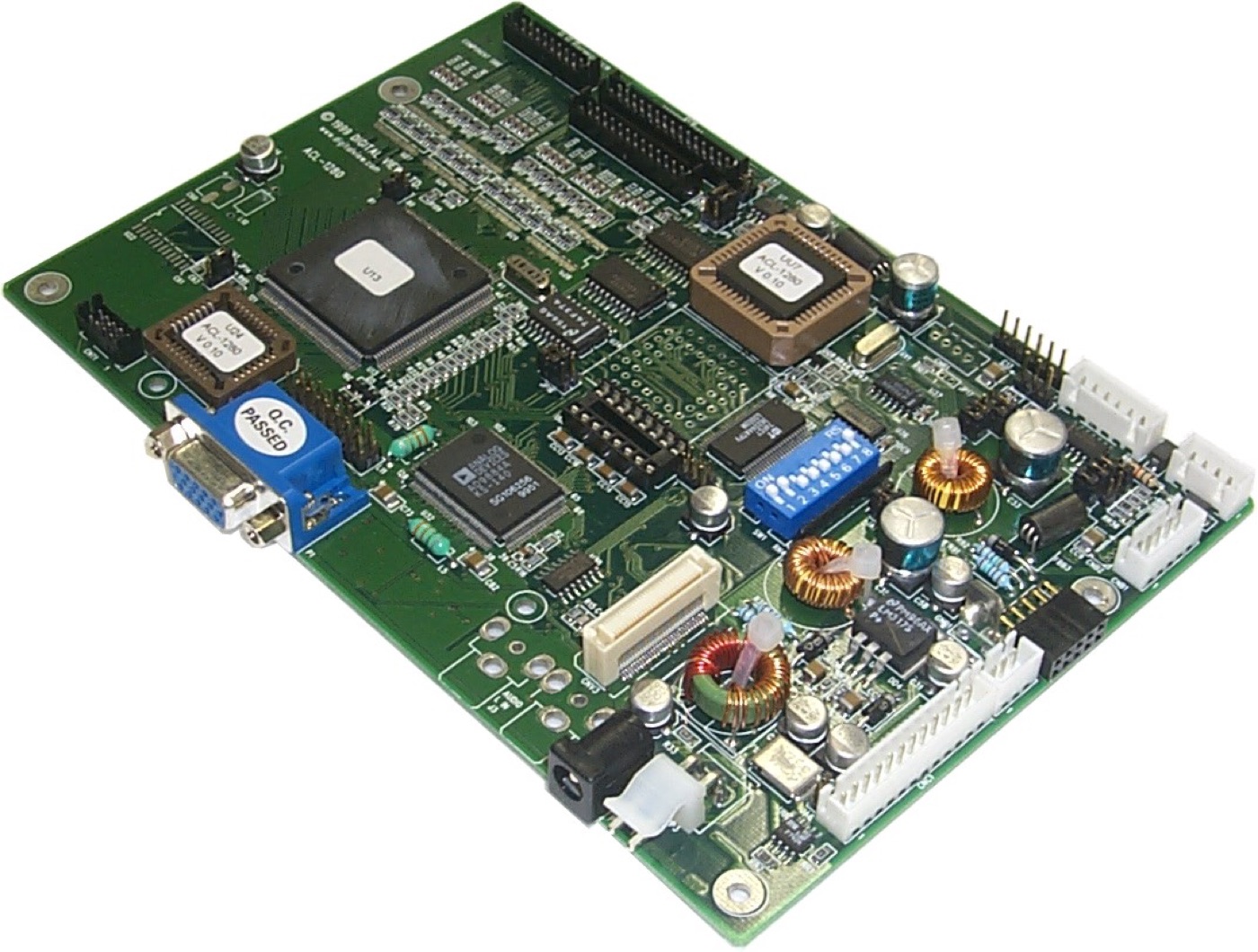

ACL-1280 LCD Controller Board

The ACL-1280 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: ACL-1280

  • Panel compatibility: 1280x1024, 1024 x 768, 800x600, 640x480 TFT LCD’s from manufacturers such as Fujitsu, Samsung, Sharp, LG
  • No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • Vertical refresh rate: SXGA resolution at 60Hz, XGA, SVGA, VGA resolution up to 75Hz
  • Dot clock (pixel clock) maximum: 108MHz
  • Graphics formats: Standard SXGA,XGA,SVGA,VGA
  • Standard input at source: VGA analog (15-pin) standard. Composite/S-video/ component signal source (PAL/NTSC/SECAM) optional by plugging the video input add-on board DVB- 1000.
  • Controls available: - On/Off - Brightness (inverter) - OSD menu, - OSD select up - OSD select down - OSD setting + - OSD setting -
  • Control interface: - Buttons - RS-232 - Infra-red
  • Settings memory: Settings are stored in non-volatile memory
  • Multi-language OSD support: 7 languages (English, Italian, French, Spanish, Sweden, Holland and German)
  • VESA DPMS implementation: Yes
  • Plug & Play: VESA DDC 1, 2/b compatible
  • Voltage output for LCD: +3.3V DC, +5V DC, +12VDC
  • Input voltage: 12VDC
  • Power protection: Fuse fitted – auto reset
  • DC Power handling: An on board relay handles the power load for On/Off and power protection to the LCD.
  • Power load maximum: The controller has an overall 2.5Amp resettable fuse under current limit.
  • Controller power consumption: Approx 2.5W (controller logic only, no panel)
  • Controller dimensions: 179.07mm x 114.31mm x 16.9mm
  • o: o
  • Storage temperature limits: -40 C to +70 C
  • o: o
  • Operating temperature limits: 0 C to +65 C

Downloads: ACL-1280

Other documentation for this board may be available on request — contact us.
