AC-9606 v.3 LCD Controller Board

  • Panel compatibility: Compatible with 1024 x 768 resolution TFT LCD’s from manufacturers such as Sharp, Toshiba, Hosiden, Hitachi th
  • Standard input at source: VGA analog (15 pin) standard, composite sync & sync on green.
  • Input voltage: 12VDC
  • Controller dimensions: 179mm x 140mm (7.05” x 5.5”)
  • Part number: 4106878xx
  • Availability: End of life — no longer available

Jump to Downloads

Find on the Controller Solution Generator (CSG)

END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

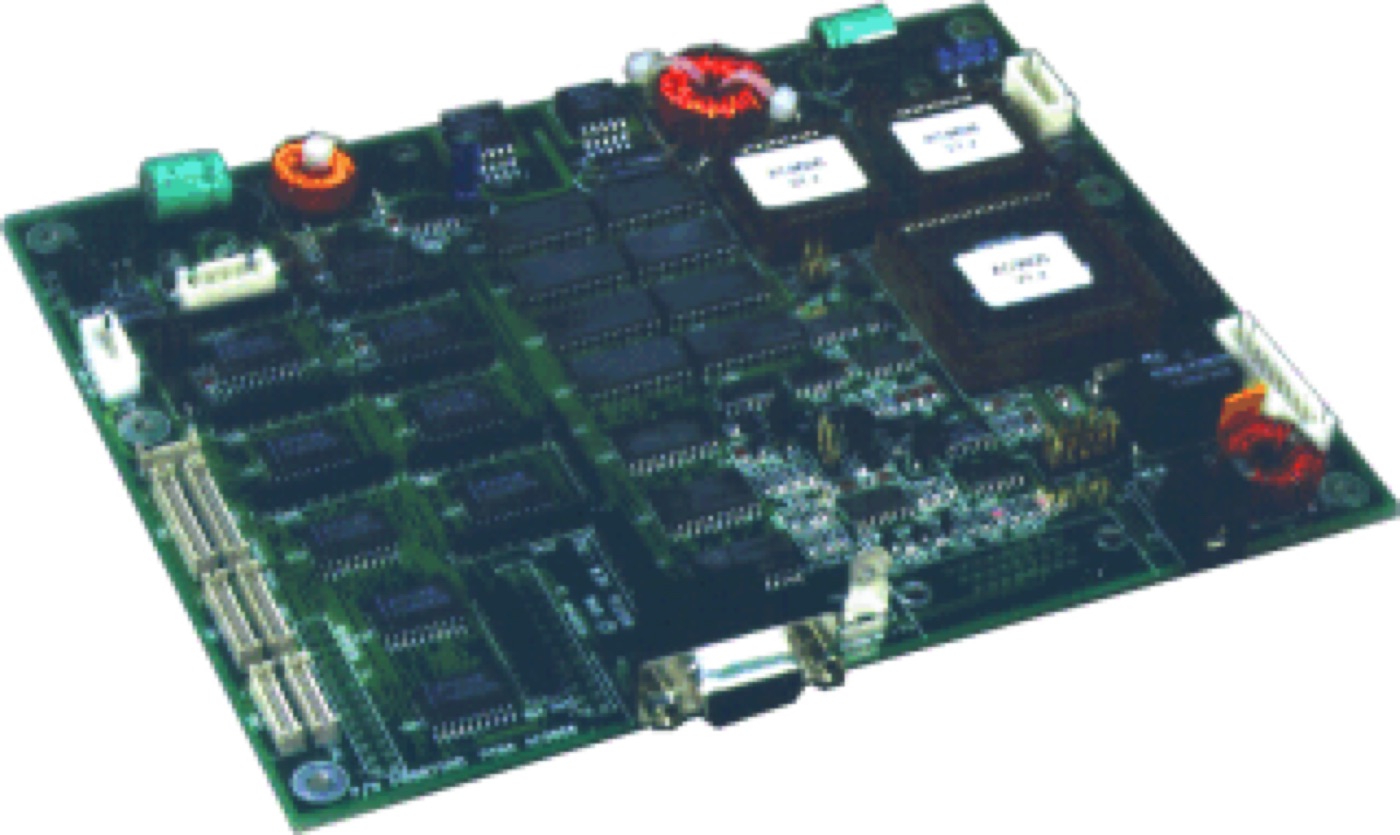

AC-9606 v.3 LCD Controller Board

The AC-9606 v.3 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: AC-9606 v.3

  • Panel compatibility: Compatible with 1024 x 768 resolution TFT LCD’s from manufacturers such as Sharp, Toshiba, Hosiden, Hitachi though a specified BIOS and some factory adjustment may be required for individual panel timings.
  • No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • Vertical refresh rate: VGA, SVGA (to 60Hz), XGA (to 60Hz) non-interlaced
  • Horizontal frequency: XGA - 65kHz ± 10% depending on dot clock
  • Dot clock (pixel clock) maximum: 75mHz
  • Graphics formats: Standard VGA, SVGA, XGA
  • Graphics auto mode detect: VGA, SVGA, XGA
  • Standard input at source: VGA analog (15 pin) standard, composite sync & sync on green.
  • Controls available: • On/Off • Brightness • Contrast, • Phase • Image position (V & H). • Size (used for SVGA / XGA only)
  • Settings memory: Settings are stored in non volatile memory
  • On screen display: Functions display
  • PC Connectivity: VGA / SVGA / XGA analog
  • Controller dimensions: 179mm x 140mm (7.05” x 5.5”)
  • Power consumption: 10w approx (not including panel power consumption)
  • Power load maximum: The controller has an overall 3Amp current limit.
  • Voltage output for LCD: +3.3V DC, +5V DC, +12V DC
  • Input voltage: 12VDC
  • Power protection: Fuse fitted
  • DC Power handling: An on board relay handles the power load for On/Off and power protection to the LCD.
  • Storage temperature limits: -40oC to +70oC
  • Operating temperature limits: -25oC to +65oC

Downloads: AC-9606 v.3

Other documentation for this board may be available on request — contact us.
