END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

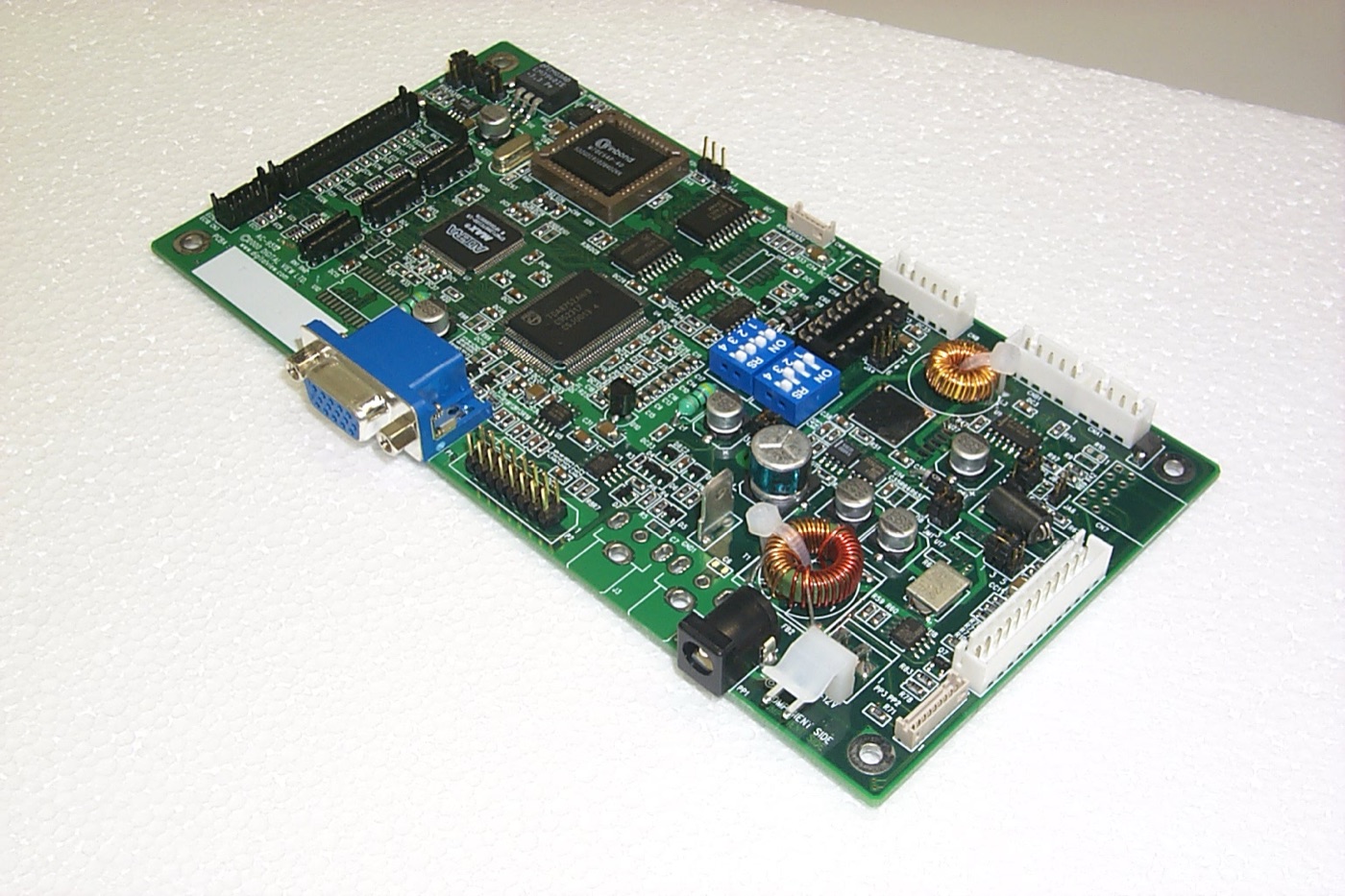

AC-9512 VGA LCD Controller Board

The AC-9512 VGA was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: AC-9512 VGA

  • Panel compatibility: 640 x 480 TFT LCD’s from manufacturers such as Hosiden, LG, Mitsubishi, NEC, Sharp, Toshiba though some factory adjustment may be required for individual panel timings.
  • No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • Graphics modes: Standard VGA
  • Standard input at source: VGA analog (15 pin)
  • OSD Controls available: - Brightness - Contrast, - Tuning - Hori Position - Vert Position - Image size - Exit menu
  • Settings memory: Settings are stored in non volatile memory
  • VESA DPMS implementation: The backlight is shut off if: • Hsync signal drops below 3.5Hz. • Vsync signal drops below 3.5Hz. • Either of Vsync & Hsync signal drops below 3.5Hz. Backlight shut off is by the enable pin of the inverter.

Downloads: AC-9512 VGA

Other documentation for this board may be available on request — contact us.
