AC-9511 v.3 LCD Controller Board

  • Panel compatibility: 640 x 480 and 800 x 600 TFT LCD’s from manufacturers such as Sharp, NEC, Toshiba, IBM though some factory adju
  • Standard input at source: VGA analog (15 pin)
  • Part number: 41068770x
  • Availability: End of life — no longer available

Jump to Downloads

Find on the Controller Solution Generator (CSG)

END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

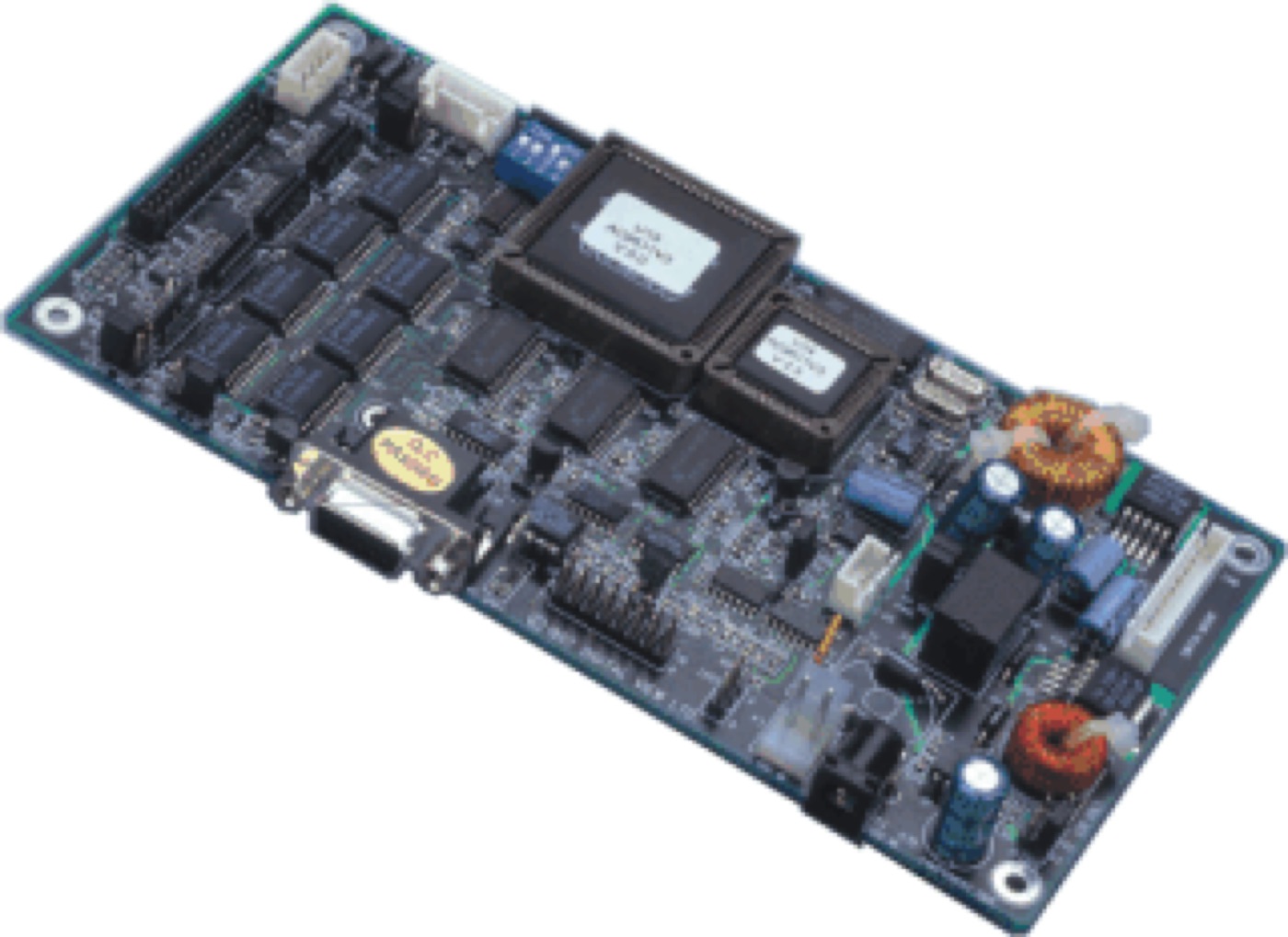

AC-9511 v.3 LCD Controller Board

The AC-9511 v.3 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: AC-9511 v.3

  • Panel compatibility: 640 x 480 and 800 x 600 TFT LCD’s from manufacturers such as Sharp, NEC, Toshiba, IBM though some factory adjustment may be required for individual panel timings.
  • No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • Graphics modes: Standard VGA & SVGA as per table following
  • Graphics mode auto detect: Yes
  • Standard input at source: VGA analog (15 pin)
  • Controls available: • On/Off • Brightness • Contrast, • Phase • Image position (V & H). • Size (for SVGA)
  • Settings memory: Settings are stored in non volatile memory
  • On screen display: For Contrast, Phase, Position & Size
  • VESA DPMS implementation: The backlight is shut off if: • Hsync signal drops below 3.5Hz. • Vsync signal drops below 3.5Hz. • Either of Vsync & Hsync signal drops below 3.5Hz. Backlight shut off is by the enable pin of the inverter.

Downloads: AC-9511 v.3

Other documentation for this board may be available on request — contact us.
