AC-1024 V.3 LCD Controller Board

  • Panel compatibility: Compatible with TFT LCD panel with resolution of 1024x768, 800x600 & 640x480 from manufacturers such as Sharp,
  • Standard input at source: VGA analog (15 pin) standard, composite sync & sync on green.
  • Input voltage: 12VDC
  • Controller dimensions: 179mm x 114mm (7.05” x 4.5”)
  • Part number: 4163400-0X
  • Availability: End of life — no longer available

Jump to Downloads

Find on the Controller Solution Generator (CSG)

END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

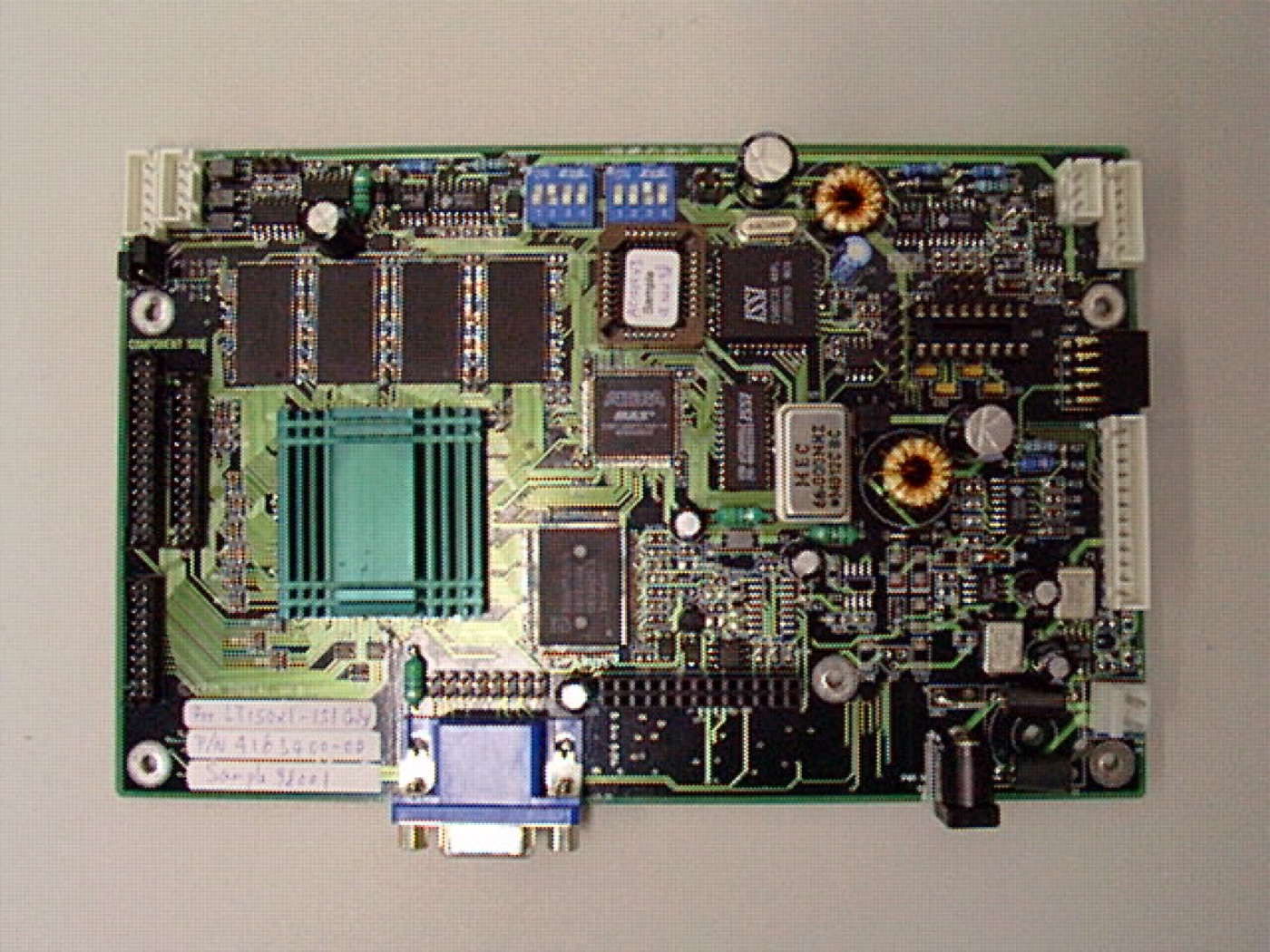

AC-1024 V.3 LCD Controller Board

The AC-1024 V.3 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: AC-1024 V.3

  • Panel compatibility (note1): Compatible with TFT LCD panel with resolution of 1024x768, 800x600 & 640x480 from manufacturers such as Sharp, Toshiba, Hosiden, Hitachi, LG, Samsung, Fujitsu, NEC, Mitsubishi, IBM or others though a specified BIOS and some factory adjustment may be required for individual panel timings.
  • No. of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • Vertical refresh rate: VGA, SVGA, XGA to VESA standards up to 85 Hz
  • Dot clock (pixel clock) maximum: 160MHz
  • Graphics formats: Standard VGA, SVGA, XGA with automatic detection of formats of: Sync on green Composite sync Separate sync
  • Graphics auto mode detect: VGA, SVGA, XGA
  • Standard input at source: VGA analog (15 pin) standard, composite sync & sync on green.
  • Video inputs (optional video add-on board): System support: PAL 50 Hz, NTSC 60 Hz Input support: Composite video and S-video Input voltage: Composite video – typical 1.0Vpp S-video Luma input – typical 1.0Vpp S-video Chroma input – typical 150mVpp Horizontal frequency: PAL – 15.625 kHz ± 400 Hz NTSC – 15.750 kHz ± 400 Hz Video voltage gain: 1
  • Controls available: • On/Off • Brightness – inverter • OSD Menu • OSD Select up • OSD Select down • Setting + • Setting -
  • Control interface: • Buttons • Infra red • RS-232
  • Settings memory: Settings are stored in non volatile memory
  • Run time monitor: Updates at 30 minute intervals
  • PC Connectivity: VGA / SVGA / XGA analog
  • Controller dimensions: 179mm x 114mm (7.05” x 4.5”)
  • Power consumption: 10w approx. (not including panel power consumption)
  • Power load maximum: The controller has an overall 3Amp current limit.
  • Voltage output for LCD: +3.3V DC, +5V DC, +12V DC
  • Input voltage: 12VDC
  • Power protection: Fuse fitted
  • DC Power handling: An on board relay handles the power load for On/Off and power protection to the LCD.
  • Storage temperature limits: -40oC to +70oC
  • Operating temperature limits: 0oC to +65oC

Downloads: AC-1024 V.3

Other documentation for this board may be available on request — contact us.
