AC-0800 LCD Controller Board

  • Part number: 4164200-0X
  • Availability: End of life — no longer available

Jump to Downloads

Find on the Controller Solution Generator (CSG)

END OF LIFE — no longer manufactured

This page is kept as a reference for installed systems.

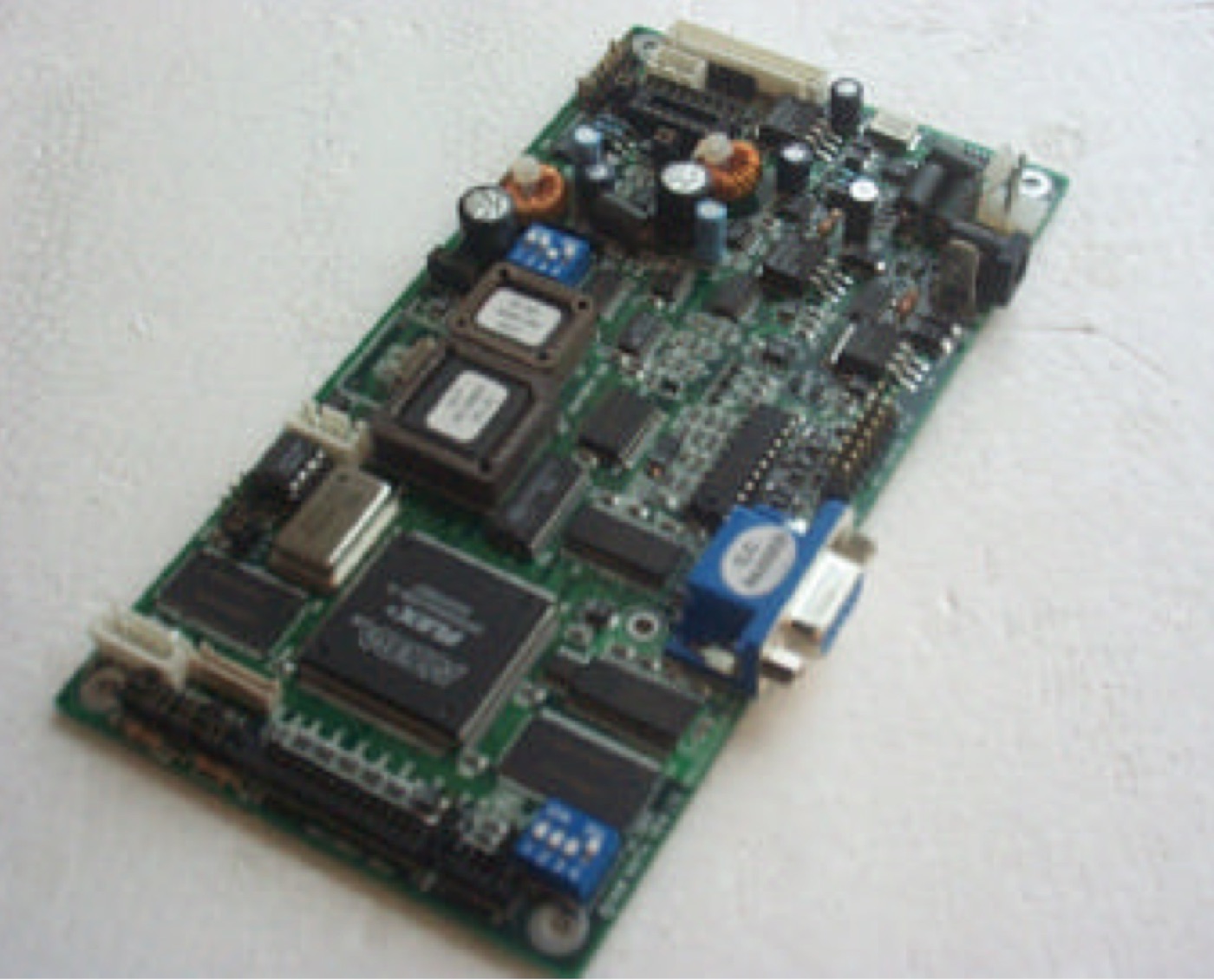

AC-0800 LCD Controller Board

The AC-0800 was a Digital View LCD controller board. This page is retained so that anyone maintaining an installed system can identify the board and reach its documentation.

Specifications: AC-0800

  • el compatibility: 640 x 480 and 800 x 600 TFT LCD’s from manufacturers such as Sharp, NEC, Toshiba, IBM, Hitachi, Philips/Hosiden, Fujitsu, Mitsubishi, Samsung, LG, Hyundai, etc though some factory adjustment may be required for individual panel timings. DSTN 640x480 and 800x600 panels support with special firmware s
  • of colours: Up to 3 x 8 bit providing 16.7 million colours.
  • tical refresh rate: VGA, SVGA to VESA standards up to 75Hz
  • clock (pixel clock) maximum: 50MHz
  • phics formats: Standard VGA & SVGA
  • phics mode auto detect: Yes, VGA & SVGA
  • ndard input at source: VGA analog (15-pin) standard with automatic detect of separate sync, composite sync or sync on green
  • trols available: - On/Off - Brightness (inverter) - OSD menu, - OSD select up - OSD select down - OSD setting + - OSD setting -
  • trol interface: - Buttons - Infra red - RS-232
  • tings memory: Settings are stored in non volatile memory
  • time monitor: Updates at 30minutes intervals
  • ti-language OSD support: 7 languages
  • A DPMS implementation: Yes
  • g & Play: VESA DDC 1, 2/b compatible
  • tage output for LCD: +3.3V DC, +5V DC
  • ut voltage: 12VDC
  • er protection: Fuse fitted - auto reset
  • Power handling: An on board relay handles the power load for On/Off and power protection to the LCD.
  • er load maximum: The controller has an overall 3Amp current limit.
  • troller power consumption: Approx 2.5W (controller logic only, no panel)
  • troller dimensions: 178mm x 91.5mm x 21mm
  • rage temperature limits: -40oC to +70oC
  • rating temperature limits: 0oC to +65oC Page 11 Page 12

Downloads: AC-0800

Other documentation for this board may be available on request — contact us.
