HD-SDI / 3G-SDI Add-on

Various models of add-on boards to provide input connection for various LCD controller models to support HD-SDI and 3G-SDI.

Links & Downloads

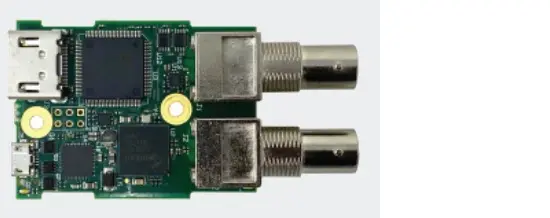

HD-1000P

 An add-on for Digital View LCD controllers:

  • Adds single channel HD-SDI input to SVX-2560, SVH/HE-1920v2, SVX/HX-1920v3 controllers
  • Temperature: This board passed an operational test for 48 hours at 70°C, and also passed a startup test when heated to 70°C. Contact us for more test details.
    Note: This board does not de-interlace the signal.

  • Input signal: HD-SDI, Compliant with SMPTE 292M, SMPTE 259M-C.
  • Output signal: HDMI, HD-SDI (re-clocked)
  • Part number: 416008100-3

DOWNLOADS

HD-3000 / HD-3000S

An add-on for Digital View LCD controllers:

  • Adds HD-SDI/3G-SDI inputs with re-clocked pass-through. Embedded stereo audio.
  • HD-3000S (single channel): Supports SP-4096
  • HD-3000 (dual channel)

  • Input signal: Fully compliant with SMPTE 292M, SMPTE 259M-C, SMPTE 424M, SMPTE 425M.
  • Output signal: HDMI
  • Part number HD-3000: 4160160xx-3
  • Part number HD-3000S: 4160164xx-3
  • Part number HD-3000T: 416016231-3
  • Part number HDMI bridge cable: 426009110-3

DOWNLOADS

  • Manual: HD-3000S
  • Manual: HD-3000
  • Revision Note: HD-3000S 19-Dec-2017
  • Revision Note: HD-3000 19-Dec-2017
  • HD-3000 3D drawing (SLDPRT)
  • HD-3000S 2D drawing (DWG)
  • HD-3000S 3D drawing (IGS)
  • HD-3000 3D drawing (ZIP-SLDPRT)

HD-3000v2 (NEW - Q1, 2023)

Video input add-on for Digital View LCD controllers:

  • Two HD-SDI/3G-SDI inputs, BNC
  • Fast input port switching
  • Re-clocked HD-SDI pass-through outputs, BNC
  • One HDMI output to controller board
  • Embedded stereo audio
  • Interlaced to progressive conversion
  • PiP option
  • Size: 102(W) x 77.6 (D) x 18(H) mm

  • Currently supports Digital View HX-2560-SDI with matching firmware
  • Other Digital View LCD controllers supported on request

  • Compliant with SMPTE 292M, SMPTE 259M-C, SMPTE 424M, SMPTE 425M.

  • Part number: 4160260xx-3

DOWNLOADS
