Composite Video Input
Working as an accessory add-on board to a main LCD controller, these boards will convert composite video signals to a format suitable for input to a LCD controller. Ideal for enhancing controllers to accept legacy signals.
Links & Downloads
AVD-1000
(EOL announced, see notes)
- Note: An End of Life notice was posted for this model with effect from 1 May 2019. Limited inventory maybe available, contact us for details.

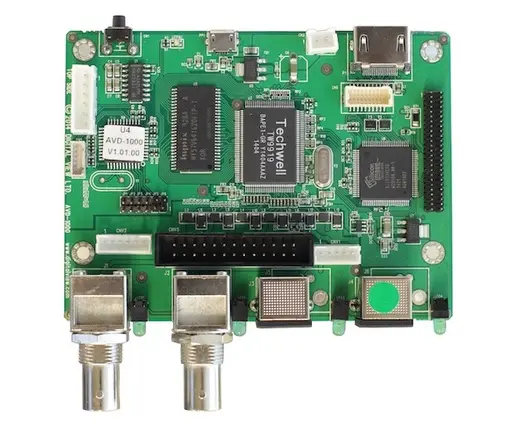

An accessory add-on board to a main LCD controller, the AVD-1000 converts a standard PAL/NTSC or S-Video video signal to HDMI.The HVD-1000 version is for harsher environments.
- HVD-1000 works with: HX-1920v3
- Input signal: 2 x PAL/NTSC
- Input signal: 2 x S-Video
- AVD-1000 part #: 416018731-3
- HVD-1000 part #: 416018830-3
DOWNLOADS
- AVD/HVD-1000: Manual v1.1
- AVD/HVD-1000: 2D drawing (DWG)
- AVD/HVD-1000: 3D drawing (SLDPRT)

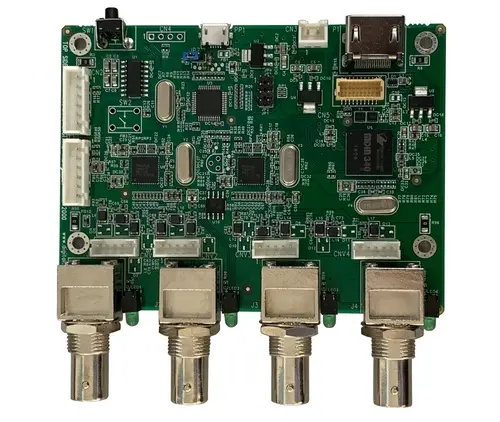

AVD-2000 PAL/NTSC to HDMI
Digital View accessory board for use with Digital View LCD controller boards.
- The AVD-2000 converts interlaced PAL/NTSC video to progressive format HDMI video (deinterlace function).
- Suitable for use with all Digital View LCD controller boards with HDMI input.
- Input signal: 4 x PAL/NTSC
- AVD-2000 part #: 4160234xx-3
DOWNLOADS
- AVD-2000: Manual (PDF)
- AVD-2000: 2D drawing (PDF)
- AVD-2000: 3D drawing (SLDPRT, STEP, IGS)
